Check Suspension Data, Assign Actual Value To Table - AR40.20-P-0001-01MBR

Model 247.751

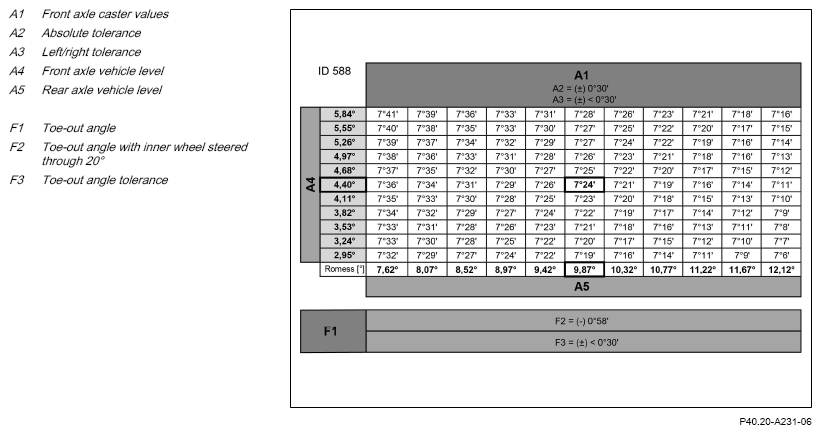

G16049303

Courtesy of MERCEDES-BENZ USA

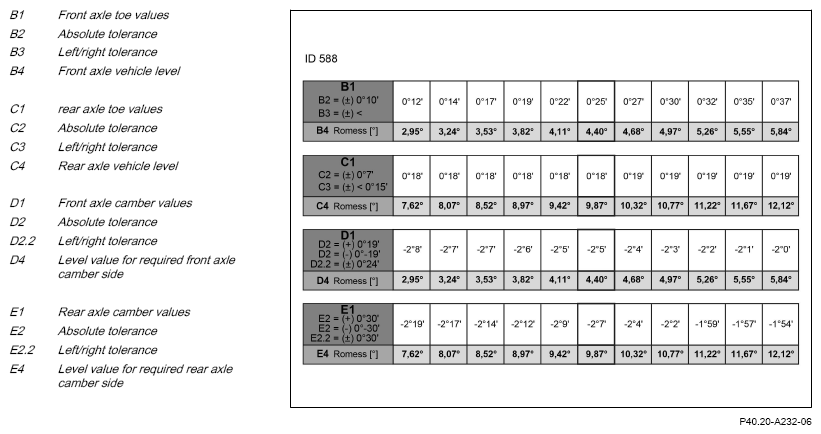

G16049304

Courtesy of MERCEDES-BENZ USA
