Check Suspension Data, Assign Actual Value To Table - AR40.20-P-0001-01MBQ

Model 247.753/754

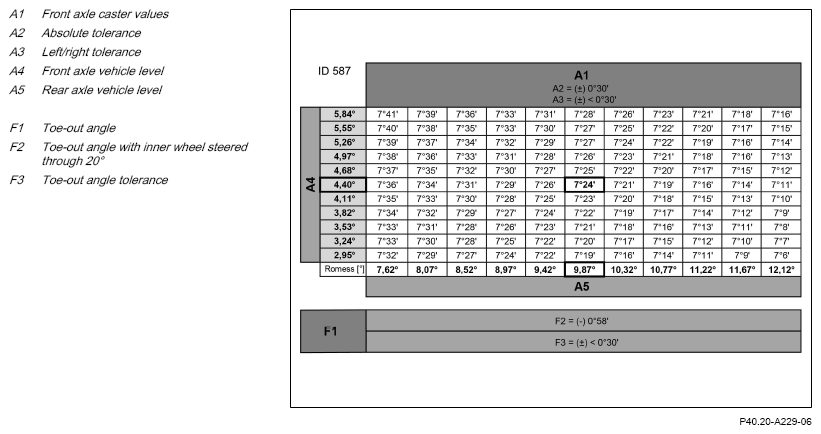

G16049301

Courtesy of MERCEDES-BENZ USA

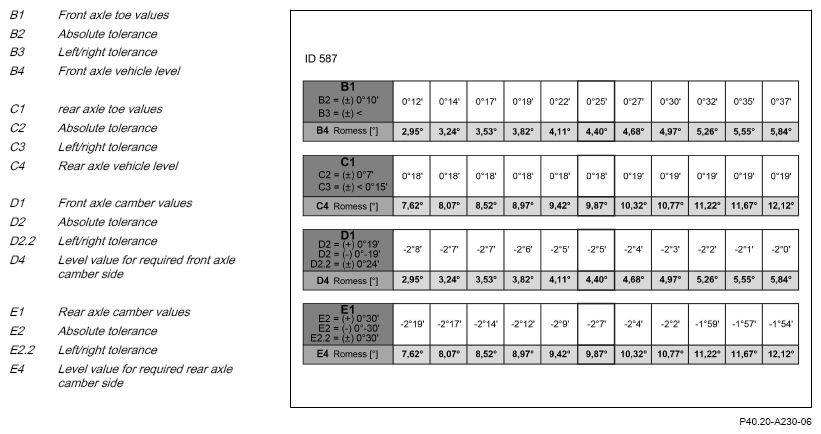

G16049302

Courtesy of MERCEDES-BENZ USA
