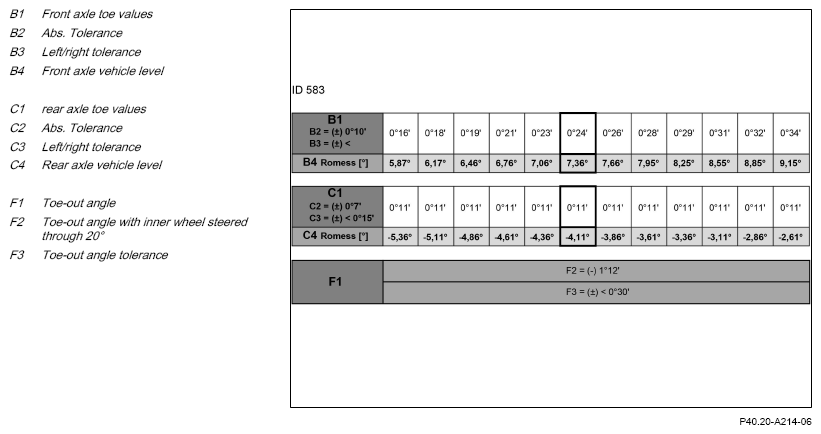

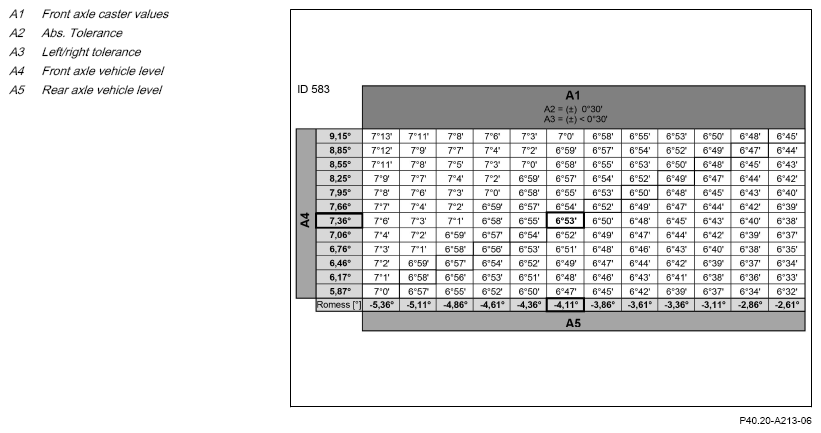

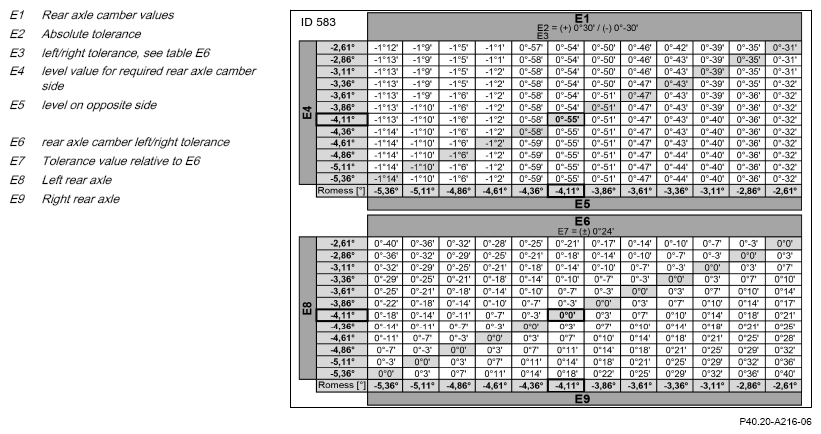

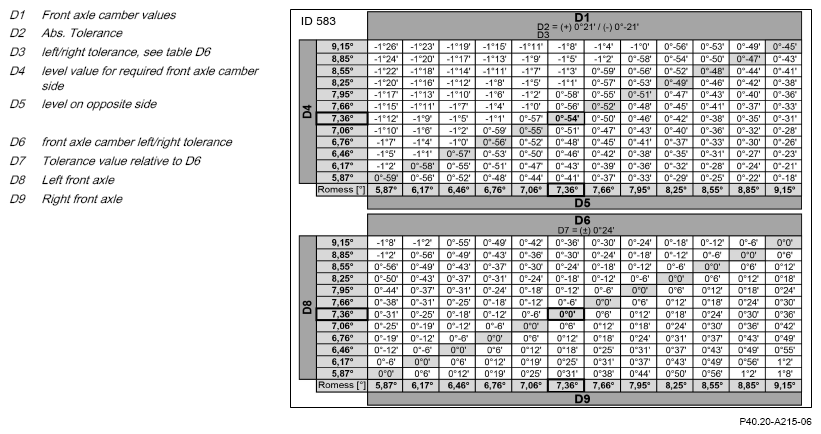

Check Suspension Data, Assign Actual Value To Table - AR40.20-P-0001-01MBM

Model 247.7 (except247.751/753/754)

with code 485 (Comfort suspension)

with code U55 (Multi-link axle)

except code 494 (US version)

except code U54 (Compound-link axle)
