Rear Axle Carrier Trim Remove And Install - Ar61.30-P-0050MFA
Model 118, 177, 247 with engine 260
with code U555 (Multi-link axle)
except code M016 (Uprated engine)
Model 118, 247 with engine 282, 608, 654
with code U555 (Multi-link axle)
Model 177 with engine 282, 654
with code U555 (Multi-link axle)

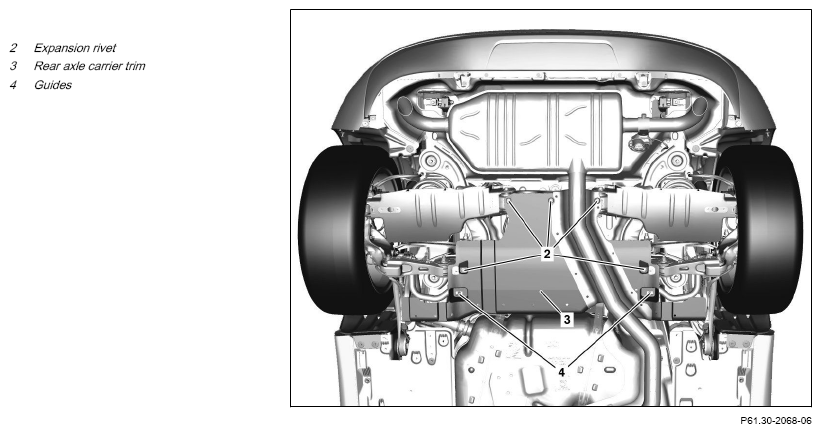

Shown on model 177.0 with code U55 (Mult-link axle)
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Remove/install | |||
| 1 | Lower rear muffler and tailpipe. | Model 118, 177, 247 with engine 654 with code U55 (Multi-link axle) | AR49.10-P-7142MFF |
| Model 118, 247 with engine 608 with code U55 (Multi-link axle) | AR49.10-P-7142MFE | ||
| Model 118, 177, 247 with engine 260 with code U55 (Multi-link axle) except code M016 (Uprated engine) Model 118, 177, 247 with engine 282 with code U55 (Multi-link axle) except code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN)) |
AR49.10-P-7286MFD | ||
| 2 | Unclip expansion rivets (2), move rear axle carrier trim (3) out of guides (4) in direction of travel and remove. | Fig 1 | |
| 3 | Install in the reverse order. |
