Remove/Install Engine Hood Hinge - AR88.40-P-3061MFB
Model 247
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove hood. | AR88.40-P-3000MFA | |
| 2 | Remove rear section of fender liner in left or right front fender. | AR88.10-P-1301MFA | |

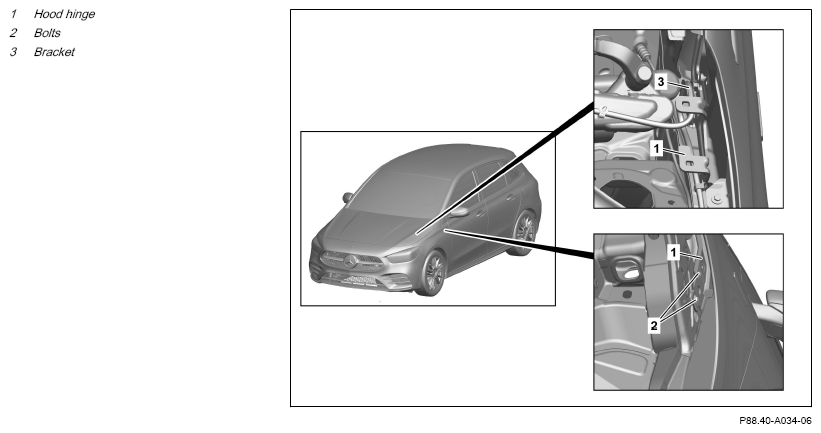

| 3 | Unclip bracket (3) of the washer fluid hose from the hood hinge (1) and place to one side | If left hood hinge (1) is removed. | |
| Fig 1 | |||
| Risk of explosion caused by paint vapors igniting Risk of poisoning caused by inhaling paint vapors. | No smoking! No open fire! Use respiratory protection protective clothing gloves safety glasses and protective skin cream Ensure that the area is well ventilated. | AS98.00-Z-0002-01A | |
| 4 | Remove screw/bolts (2) | ||
| Topical note | General notes on touch-up applicators and paint spray cans | AH98.00-P-9409-06A | |
| *BA88.40-P-1004-01F | |||
| 5 | Remove hood hinge (1) in upward direction. | ||
| 6 | Install in the reverse order. | ||
| Adjust | |||
| 7 | Adjust hood. | AR88.40-P-3020MFA |
ENGINE HOOD
| Number | Designation | Model 118, 177, 247 | |
|---|---|---|---|
| BA88.40-P-1004-01F | Screw, hood hinge to body | Nm | 14 |
