Main Floor Reinforcement Install - Ar63.40-P-1180-29MFA

Model 118.3/6

Model 177.0/1/9

Model 247.0/6/7

The next steps are shown on the left side of the vehicle. In case of damage on the right side of the vehicle, these steps must be performed analogously.

Additional information can be found in the superordinate service document.

The safety information in the superordinate service document must be observed.

Courtesy of MERCEDES-BENZ USA

1. Install reinforcement (2), fit, and fix in place.

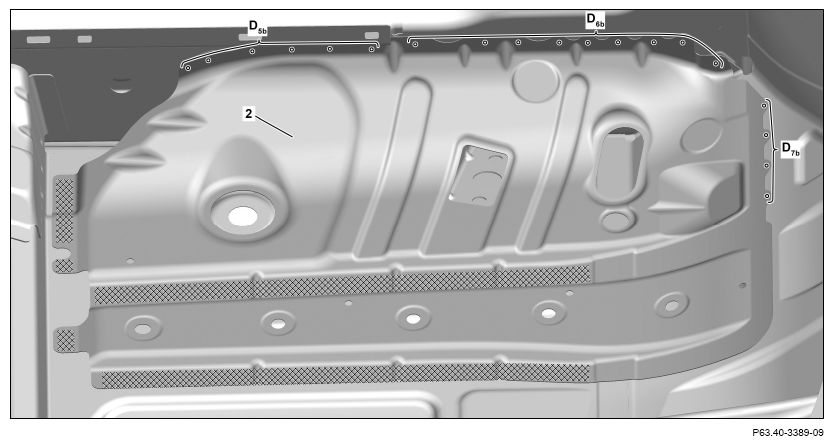

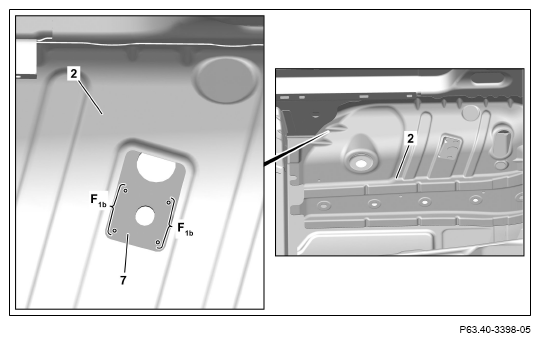

2. Drill rivet holes in reinforcement (2) with Ø 6.7 mm bit (areas D_5b , D_6b , D_7b and F_1b ).

   Courtesy of MERCEDES-BENZ USA

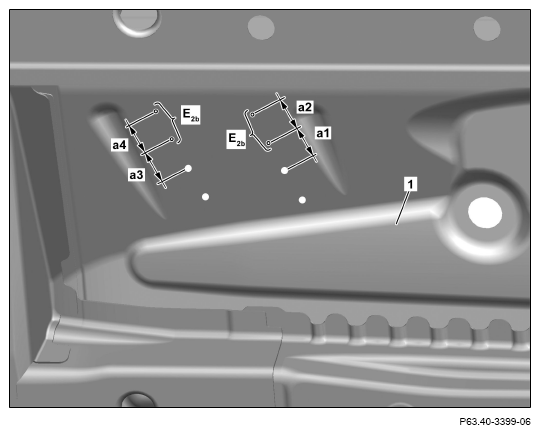

3. Drill rivet holes of mounting support (7) with Ø 6.7 mm bit (area E_2b ).



   Dimensions:

   a1 = 36.5 mm

   a2 = 25.5 mm

   a3 = 42.5 mm

   a4 = 26 mm

4. Remove reinforcement (2).
5. Deburr drill holes on both sides and remove drill chips.

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

6. Grind drill holes, spot welds, and cross-hatched surfaces down to bare metal on both sides.
7. Remove grinding dust.
8. Coat cross-hatched surfaces, riveted joints and weld joints with zinc dust paint.

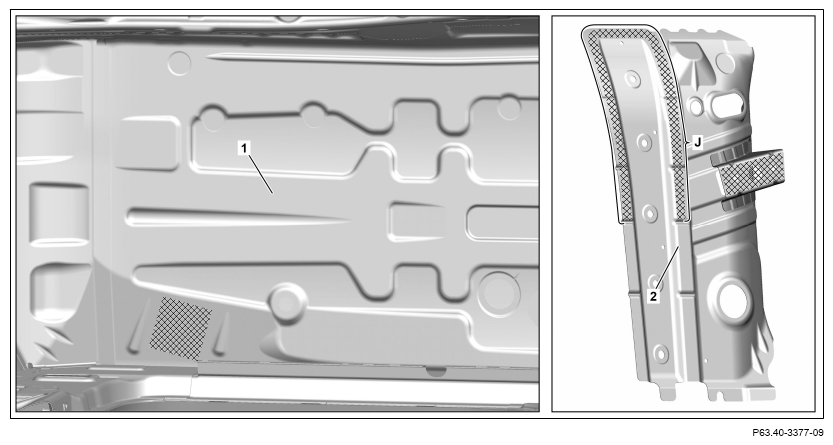

   The insides of the weld joint, to which the 2-component adhesive is applied, may not be coated with zinc dust paint (area J).

   Otherwise adhesion problems can occur.

9. Apply 2-component adhesive to crosshatched area (area J).



   Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

   Courtesy of MERCEDES-BENZ USA

10. Install reinforcement (2).

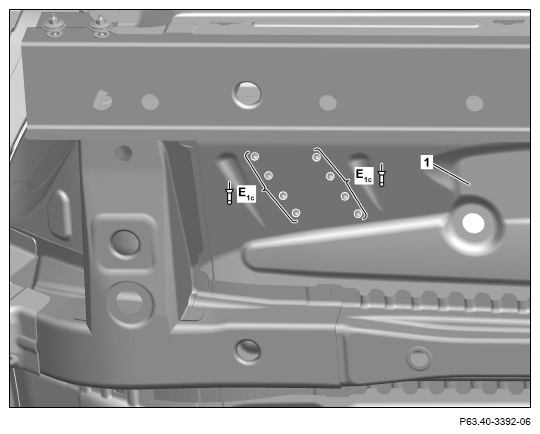

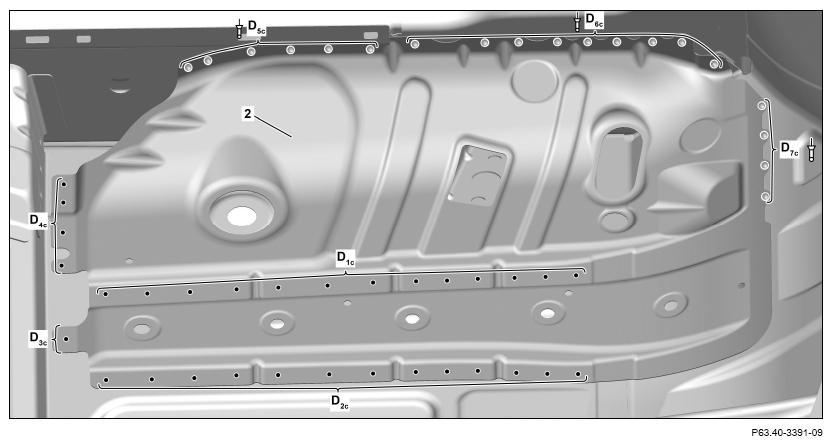

11. Rivet reinforcement (2) with Ø 6.5x14.5 mm rivets (areas D_5c , D_6c , D_7c and E_1c ).
12. Reinforcement (2) (areas D_1c , D_2c , D_3c , and D_4c ).
