Inner C-Pillar Side Wall Completely Replacement - Ar63.10-P-0700MFA

Model 177.0/1/9

Model 247.0/6/7

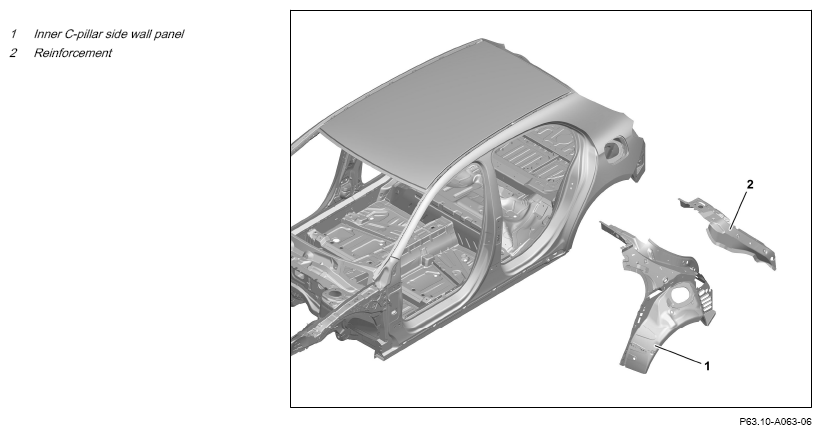

Shown on model 177.0

Courtesy of MERCEDES-BENZ USA

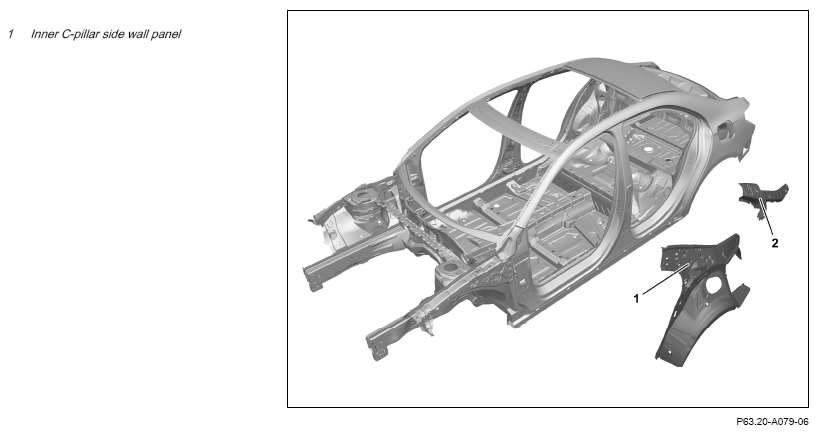

Shown on model 177.1

Courtesy of MERCEDES-BENZ USA

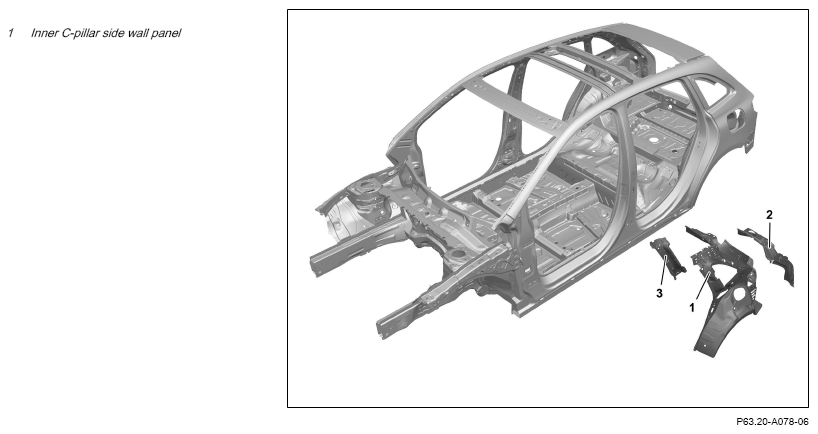

Shown On Model 247.0

Fig 1: Inner Side Body Panel Component Location (Shown On Model 247.0)

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel.	No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	General information on body repair		AH60.00-P-0001-01KOA
Notice	Pretreatment of bonding surfaces		AH60.00-P-0008-01SX
	General information on MB materials		AH98.00-P-9409-03A
	Remove
1	Remove detachable parts in area of repair point.
2	Cover all detachable parts remaining in vehicle with spark protection blankets.
3	Remove rear fender.		AR63.50-P-1400MFA
4	Remove paneling of the roof frame.	Model 247.0/6/7
			AR65.10-P-1020MFA
5.1	Remove the inner C-pillar side wall (1).	Model 177.1/9, 247.0/6/7
		Model 177.1/9	AR63.10-P-0700-01MFV
		Model 247.0/6/7	AR63.10-P-0700-01MFB
		1K-zinc dust paint	*BR00.45-Z-1056-07A
5.2	Remove reinforcement (2) and inner C-pillar side wall (1).	Model 177.0
			AR63.10-P-0700-01MFA
		1K-zinc dust paint	*BR00.45-Z-1056-07A
	Install
	The high voltage used for electric welding presents a lethal hazard. Risk of explosion  from welding in areas close to highly inflammable materials. Risk of injury  from weld splatter and UV-light when welding. Risk of poisoning  from inhaling welding gases	Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system.	AS00.00-Z-0007-01A
Notice	Measures for preventing damage to components when performing electric. welding and soldering work		AH60.00-P-0001-02A
	General information on riveting		AH60.00-P-0003-01N
6.1	Prepare the inner C-pillar side wall (1).	Model 177.1/9, 247.0/6/7
		Model 177.1/9	AR63.10-P-0700-02MFV
		Model 247.0/6/7	AR63.10-P-0700-02MFB
		1K-zinc dust paint	*BR00.45-Z-1056-07A
6.2	Prepare inner C-pillar side wall (1) and reinforcement (2).	Model 177.0
			AR63.10-P-0700-02MFA
		1K-zinc dust paint	*BR00.45-Z-1056-07A
7.1	Install the inner C-pillar side wall (1).	Model 177.1/9, 247.0/6/7
		Model 177.1/9	AR63.10-P-0700-03MFV
		Model 247.0/6/7	AR63.10-P-0700-03MFB
		1K-zinc dust paint	*BR00.45-Z-1056-07A
		Blind rivet Y1 6.4x12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN)	*BR00.45-Z-1035-13A
		Parts kit for 2-component adhesive for body	*BR00.45-Z-1162-02A
7.2	Install inner C-pillar side wall (1) and reinforcement (2).	Model 177.0
			AR63.10-P-0700-03MFA
		Liftgate/trunk lid to side wall	*BE60.00-P-1015-01JA
		Rear door to side wall	*BE60.00-P-1011-01JA
		1K-zinc dust paint	*BR00.45-Z-1056-07A
		Blind rivet Y1 6.4x12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN)	*BR00.45-Z-1035-13A
		Parts kit for 2-component adhesive for body	*BR00.45-Z-1162-02A
		Feeler gauge	Fig 2
8	Clean weld joints and sheet metal flange.
9	Install the paneling of the roof frame.	Model 247.0/6/7
			AR65.10-P-1020MFA
10	Install rear fender.		AR63.50-P-1400MFA
11	Remove spark protection blankets.
12	Reinstall detachable parts in area of repair point.

Fig 2: Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA
