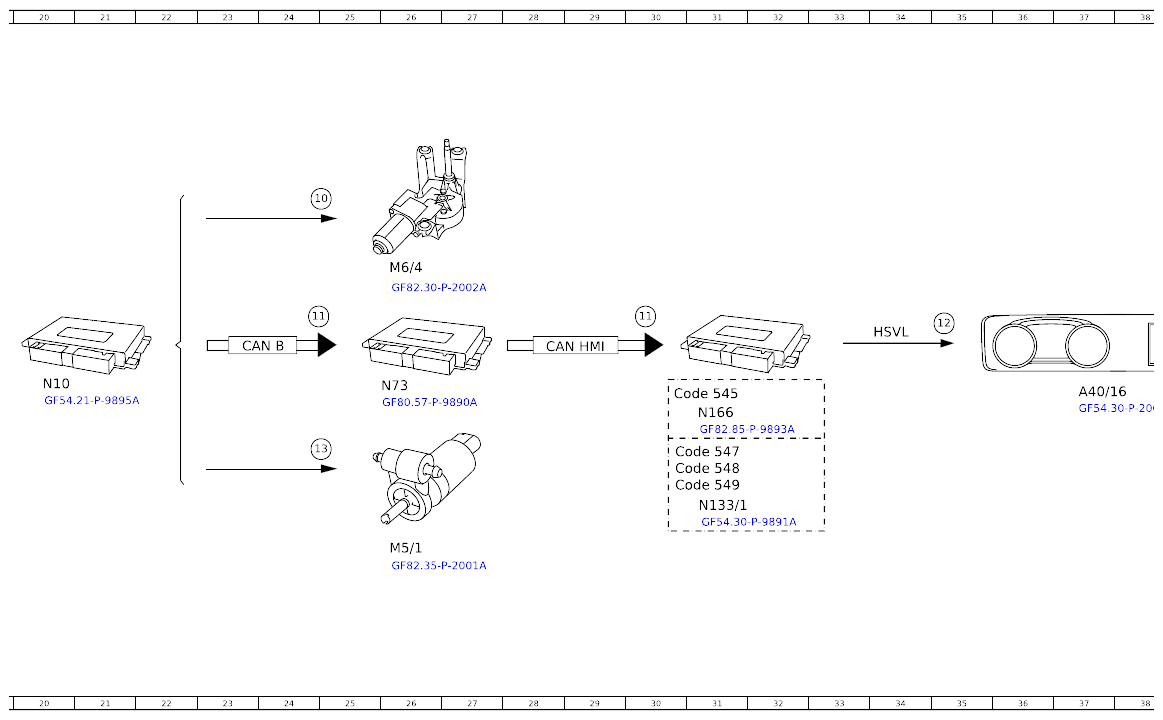

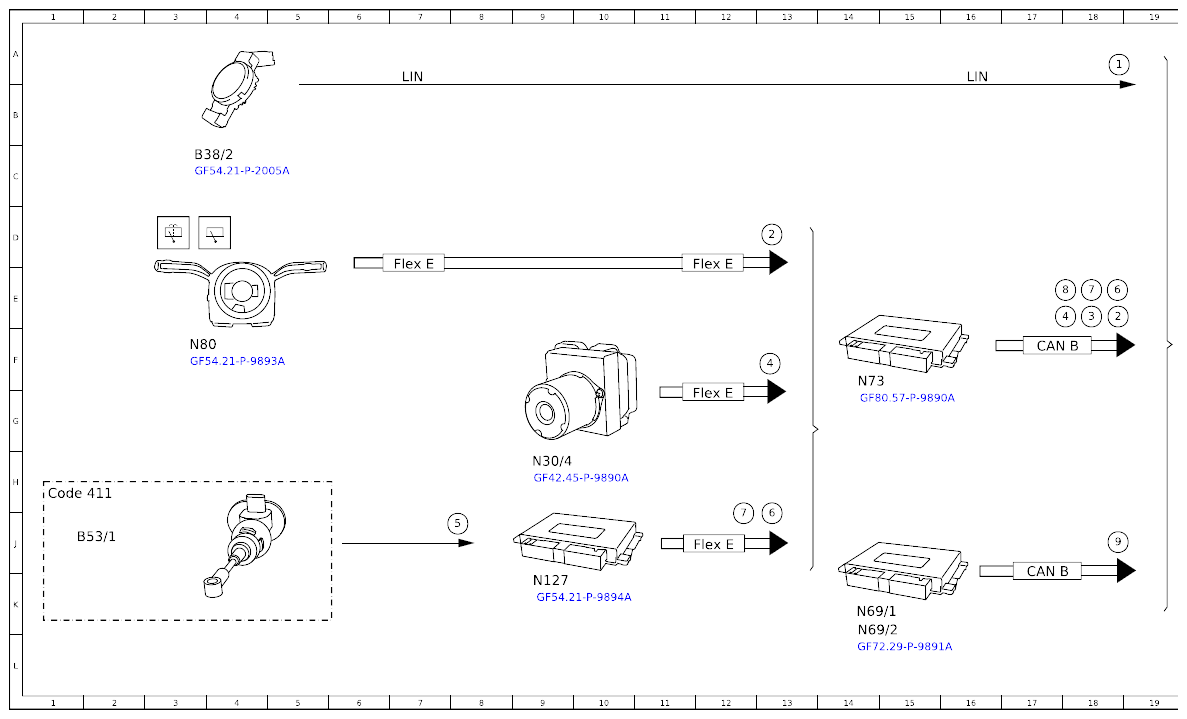

Function Schematic, Wipe And Wash Rear Window - PE82.30-P-2501-97A
Model 118.6, 177.0, 243, 247
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Wipe, request | 17A |
| 10 | Wiper motor, actuation | 24C |
| 11 | Wiper status, signal | 30E |
| 11 | Wiper status, signal | 23E |
| 12 | Image data, signal | 35F |
| 13 | Windshield washer system pump, actuation | 24H |
| 2 | Combination switch, status | 11D |
| 2 | Combination switch, status | 17E |
| 3 | Circuit 15, status | 17E |
| 4 | Vehicle speed, signal | 18E |
| 4 | Vehicle speed, signal | 16E |
| 5 | Clutch pedal sensor, signal | 6J |
| 6 | Clutch pedal operated, signal | 11J |
| 6 | Clutch pedal operated, signal | 17E |
| 7 | Transmission position, signal | 18E |
| 7 | Transmission position, signal | 16E |
| 8 | Reverse gear engaged, signal | 18E |
| 9 | Door rotary tumbler switch, status | 17J |
| A40/16 | Head unit/instrument cluster display cluster | 37G |
| B38/2 | Rain/light sensor with additional functions | 3C |
| B53/1 | Clutch travel sensor with start enable switch | 2J |
| CAN B | Interior CAN | 17F |
| CAN B | Interior CAN | 17K |
| CAN B | Interior CAN | 23F |
| CAN HMI | User interface CAN | 28F |
| Code 411 | 6-SPEED MANUAL TRANSMISSION | 1H |
| Code 545 | Connect 5 (NTG6) | 30G |
| Code 547 | Connect 20 Entry (NTG6) | 30H |
| Code 548 | Connect 20 MID (NTG6) | 30H |
| Code 549 | Connect 20 HIGH (NTG6) | 30H |
| Flex E | Chassis FlexRay | 12G |
| Flex E | Chassis FlexRay | 12E |
| Flex E | Chassis FlexRay | 12J |
| Flex E | Chassis FlexRay | 7E |
| HSVL | High-speed video link | 34F |
| LIN | Local Interconnect Network | 16A |
| LIN | Local Interconnect Network | 7A |
| M5/1 | Windshield washer system pump | 26J |
| M6/4 | Tailgate wiper motor | 26E |
| N10 | Signal acquisition and actuation module | 20F |
| N127 | Drivetrain control unit | 9K |
| N133/1 | Instrument cluster control unit | 31H |
| N166 | Head unit/instrument cluster control unit | 31G |
| N30/4 | Electronic Stability Program control unit | 9H |
| N69/1 | Driver door control unit | 14K |
| N69/2 | Front passenger door control unit | 14K |
| N73 | Electronic ignition switch control unit | 14F |
| N73 | Electronic ignition switch control unit | 26F |
| N80 | Steering column module control unit | 3F |
