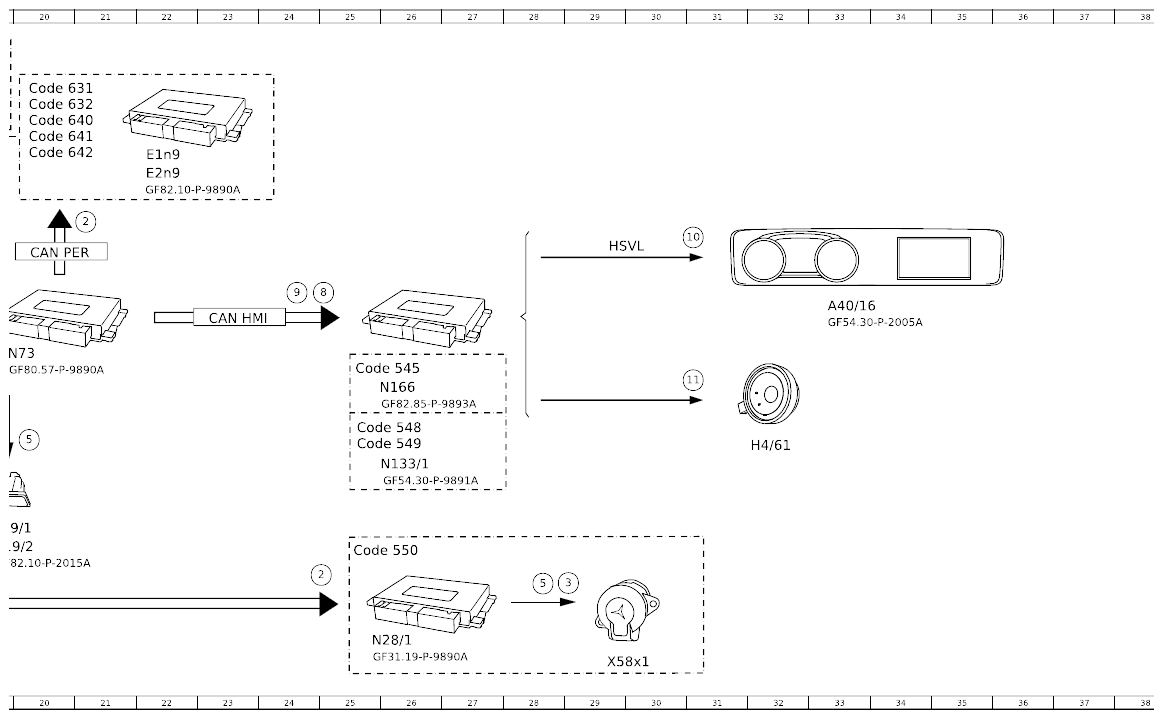

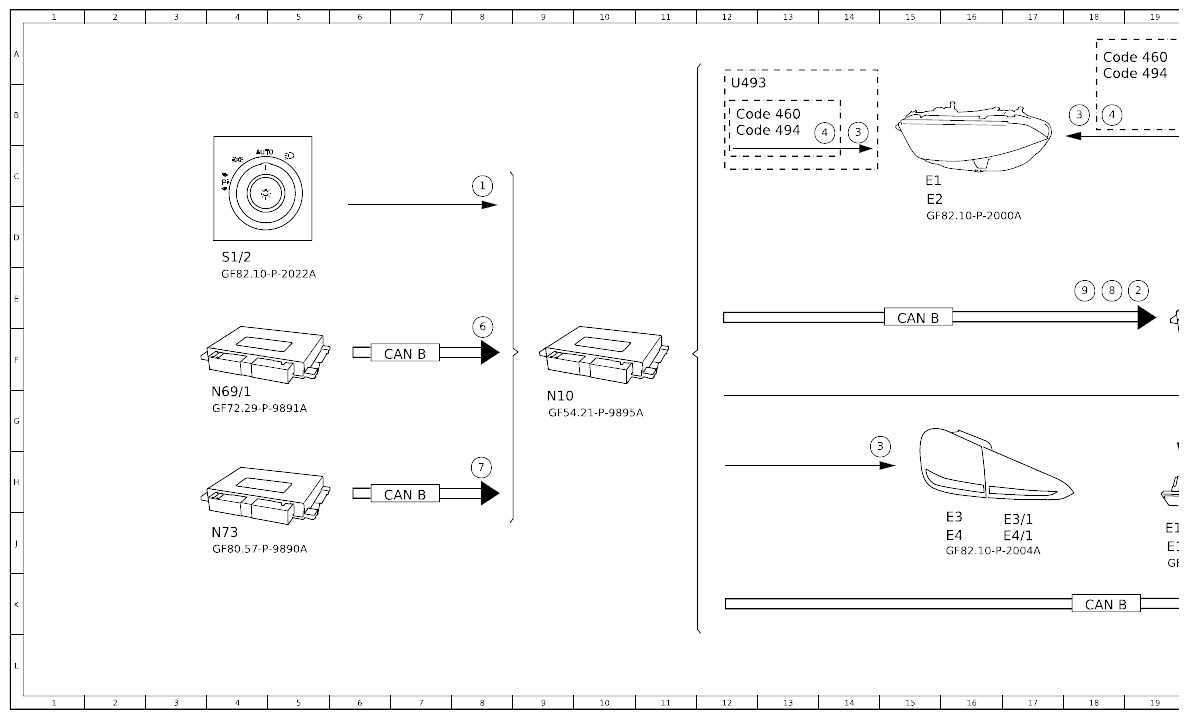

Function Schematic, Actuate Standing/Parking Lights - PE82.10-P-2503-97A
Model 118, 177, 243, 247
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Exterior lights switch, status | 8C |
| 10 | Image data, signal | 32D |
| 11 | Speaker, actuation | 32F |
| 2 | Standing and parking lights, request | 19E |
| 2 | Standing and parking lights, request | 24K |
| 2 | Standing and parking lights, request | 19E |
| 2 | Standing and parking lights, request | 20C |
| 3 | Standing and parking lights, actuation | 14G |
| 3 | Standing and parking lights, actuation | 14B |
| 3 | Standing and parking lights, actuation | 18B |
| 3 | Standing and parking lights, actuation | 29K |
| 4 | Side marker light, actuation | 14B |
| 4 | Side marker light, actuation | 18B |
| 5 | License plate lamp, actuation | 28K |
| 5 | License plate lamp, actuation | 20G |
| 6 | Door rotary tumbler switch, status | 8F |
| 7 | Circuit 15, status | 8H |
| 8 | Instrument cluster message, request | 18E |
| 8 | Instrument cluster message, request | 25E |
| 8 | Instrument cluster message, request | 25F |
| 9 | Warning tone, request | 18E |
| 9 | Warning tone, request | 24E |
| 9 | Warning tone, request | 25F |
| A40/16 | Head unit/instrument cluster display cluster | 33E |
| CAN B | Interior CAN | 7H |
| CAN B | Interior CAN | 15E |
| CAN B | Interior CAN | 7F |
| CAN B | Interior CAN | 18K |
| CAN HMI | User interface CAN | 23E |
| CAN PER | Peripherals CAN | 20D |
| Code 460 | Canada version | 18A |
| Code 460 | Canada version | 12B |
| Code 494 | USA version | 18A |
| Code 494 | USA version | 12B |
| Code 545 | Connect 5 (NTG6) | 25F |
| Code 548 | Connect 20 MID (NTG6) | 25G |
| Code 549 | Connect 20 HIGH (NTG6) | 25G |
| Code 550 | Trailer hitch | 25J |
| Code 631 | Static LED headlamp, left-hand traffic | 20B |
| Code 632 | Static LED headlamp, right-hand traffic | 20B |
| Code 640 | Dynamic LED headlamps, SAE, right-hand traffic | 20B |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 20B |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 20C |
| E1 | Left front lamp unit | 15C |
| E19/1 | Left license plate lamp | 19J |
| E19/2 | Right license plate lamp | 19J |
| E1n9 | Left headlamp control unit | 22C |
| E2 | Right front lamp unit | 15C |
| E2n9 | Right headlamp control unit | 22C |
| E3 | Left rear lamp unit | 16J |
| E3/1 | Inner left rear lamp unit | 17J |
| E4 | Right rear lamp unit | 16J |
| E4/1 | Inner right rear lamp unit | 17J |
| H4/61 | Instrument cluster speaker | 32G |
| HSVL | High-speed video link | 29D |
| N10 | Central control module | 9G |
| N133/1 | Instrument cluster control unit | 26H |
| N166 | Head unit/instrument cluster control unit | 26G |
| N28/1 | Trailer recognition control unit | 26L |
| N69/1 | Driver door control unit | 4G |
| N73 | Electronic ignition switch control unit | 4J |
| N73 | Electronic ignition switch control unit | 20F |
| S1/2 | Exterior lights and electric parking brake switch group | 4D |
| U493 | Valid for halogen lamp unit | 12B |
| X58x1 | Trailer socket | 29L |
