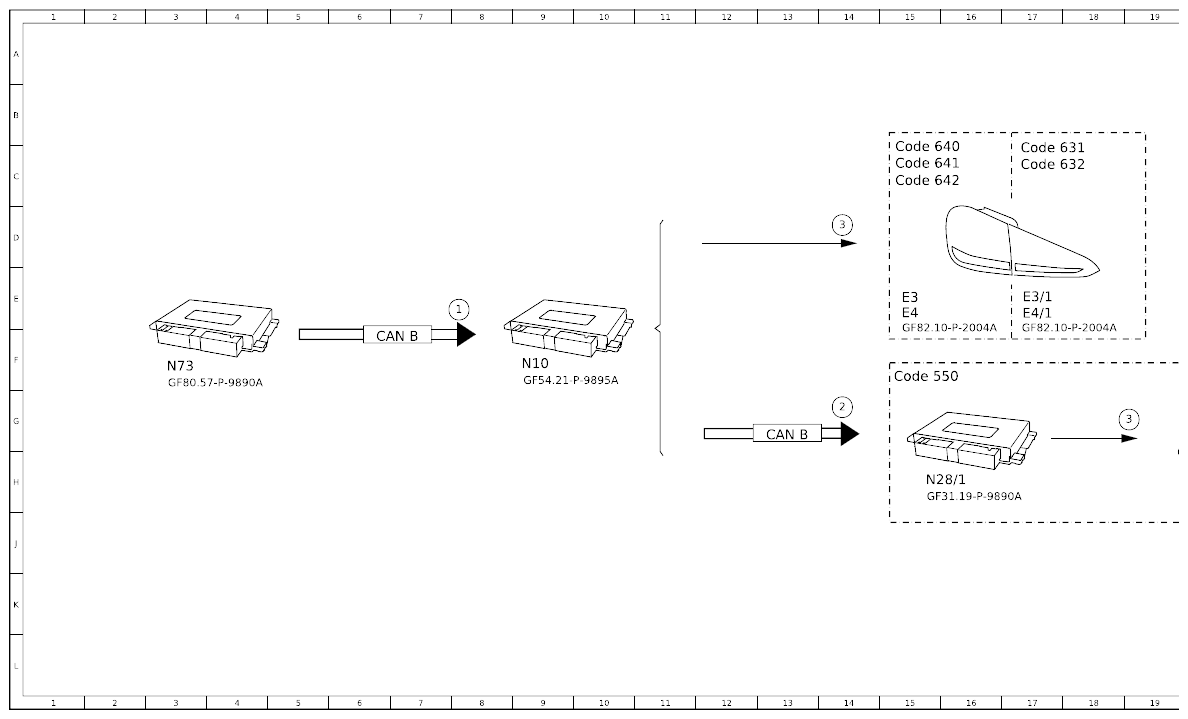

Function Schematic, Actuate Reversing Light - PE82.10-P-2513-97A
Model 118, 177, 243, 247
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Reverse gear, status | 8E |
| 2 | Backup lamp, request | 14G |
| 3 | Backup lamp, actuation | 14D |
| 3 | Backup lamp, actuation | 19G |
| CAN B | Interior CAN | 6F |
| CAN B | Interior CAN | 13G |
| Code 550 | Trailer hitch | 15F |
| Code 631 | Static LED headlamp, left-hand traffic | 17C |
| Code 632 | Static LED headlamp, right-hand traffic | 17C |
| Code 640 | Dynamic LED headlamps, SAE, right-hand traffic | 15C |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 15C |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 15C |
| E3 | Left rear lamp unit | 15E |
| E3/1 | Inner left rear lamp unit | 17E |
| E4 | Right rear lamp unit | 15E |
| E4/1 | Inner right rear lamp unit | 17E |
| N10 | Central control module | 9F |
| N28/1 | Trailer recognition control unit | 15H |
| N73 | Electronic ignition switch control unit | 3F |
| X58x1 | Trailer socket | 20H |
