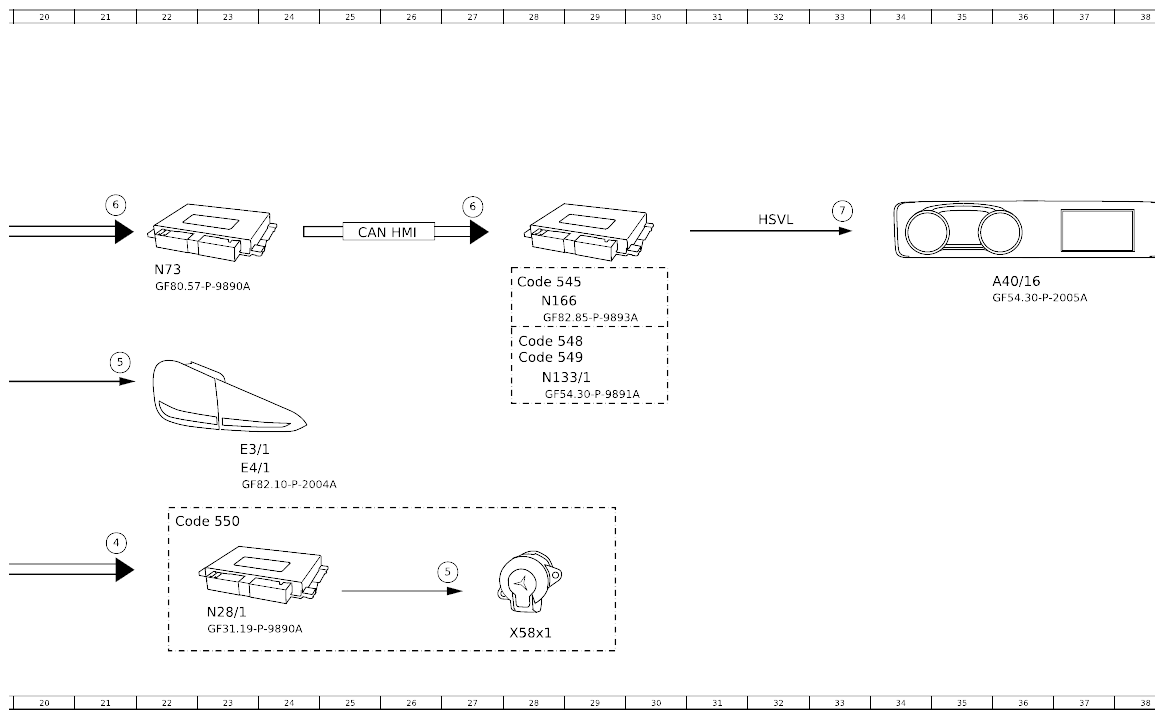

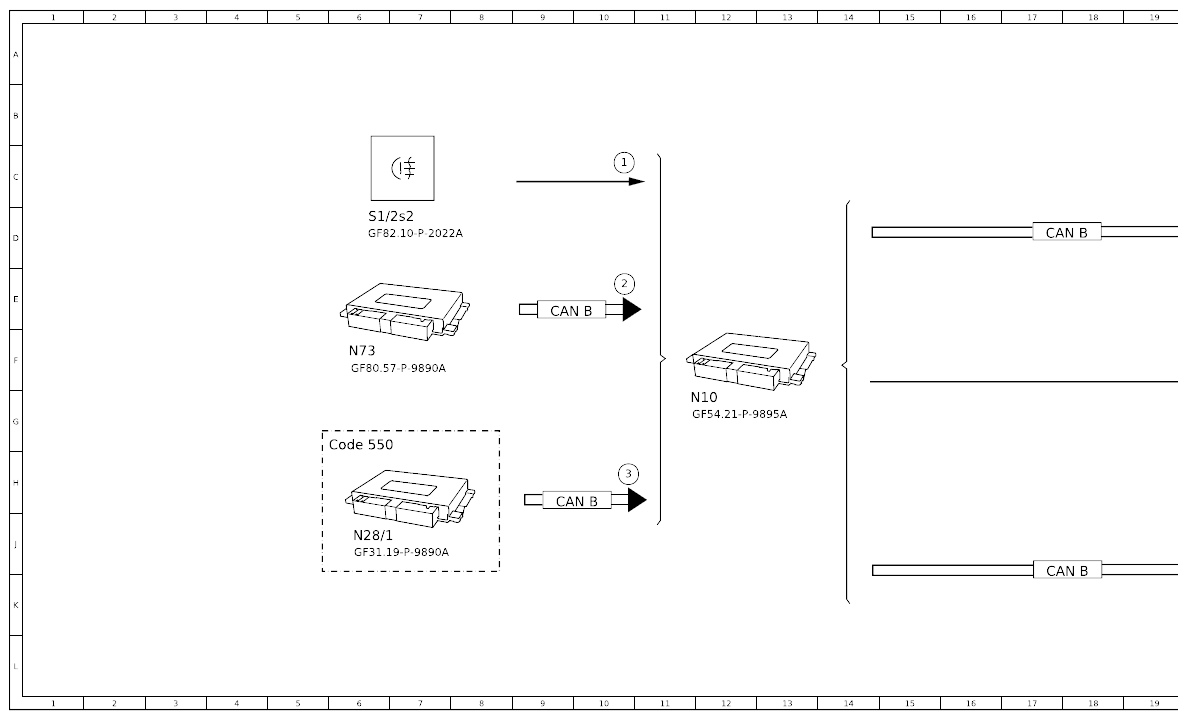

Function Schematic, Actuate Rear Fog Light - PE82.10-P-2514-97A
Model 118, 177, 243, 247
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Rear fog light button, status | 10C |
| 2 | Circuit 15, status | 6E |
| 3 | Trailer recognition, status | 6H |
| 4 | Rear fog light, request | 21J |
| 5 | Rear fog light, actuation | 27K |
| 5 | Rear fog light, actuation | 17D |
| 6 | Indicator lamp, request | 21D |
| 6 | Indicator lamp, request | 17B |
| 7 | Image data, signal | 33D |
| A40/16 | Head unit/instrument cluster display cluster | 36E |
| CAN B | Interior CAN | 9H |
| CAN B | Interior CAN | 17D |
| CAN B | Interior CAN | 9E |
| CAN B | Interior CAN | 17K |
| CAN HMI | User interface CAN | 25D |
| Code 545 | Connect 5 (NTG6) | 28E |
| Code 548 | Connect 20 MID (NTG6) | 28F |
| Code 549 | Connect 20 HIGH (NTG6) | 28F |
| Code 550 | Trailer hitch | 6G |
| Code 550 | Trailer hitch | 22J |
| E3/1 | Inner left rear lamp unit | 23H |
| E4/1 | Inner right rear lamp unit | 23H |
| HSVL | High-speed video link | 32D |
| N10 | Central control module | 12G |
| N133/1 | Instrument cluster control unit | 28F |
| N166 | Head unit/instrument cluster control unit | 28E |
| N28/1 | Trailer recognition control unit | 6J |
| N28/1 | Trailer recognition control unit | 23K |
| N73 | Electronic ignition switch control unit | 6F |
| N73 | Electronic ignition switch control unit | 22E |
| S1/2s2 | Rear fog light button | 6D |
| X58x1 | Trailer socket | 28L |
