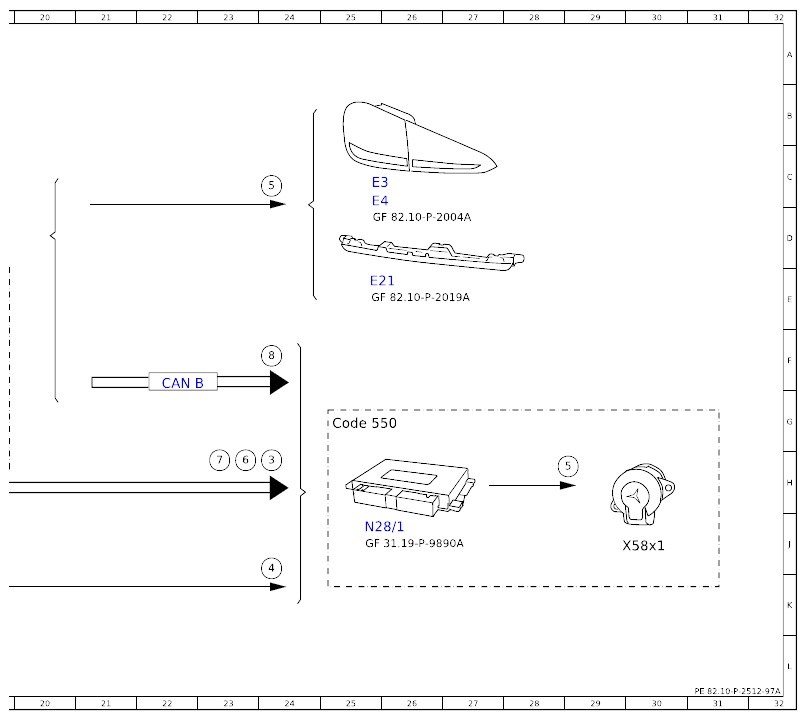

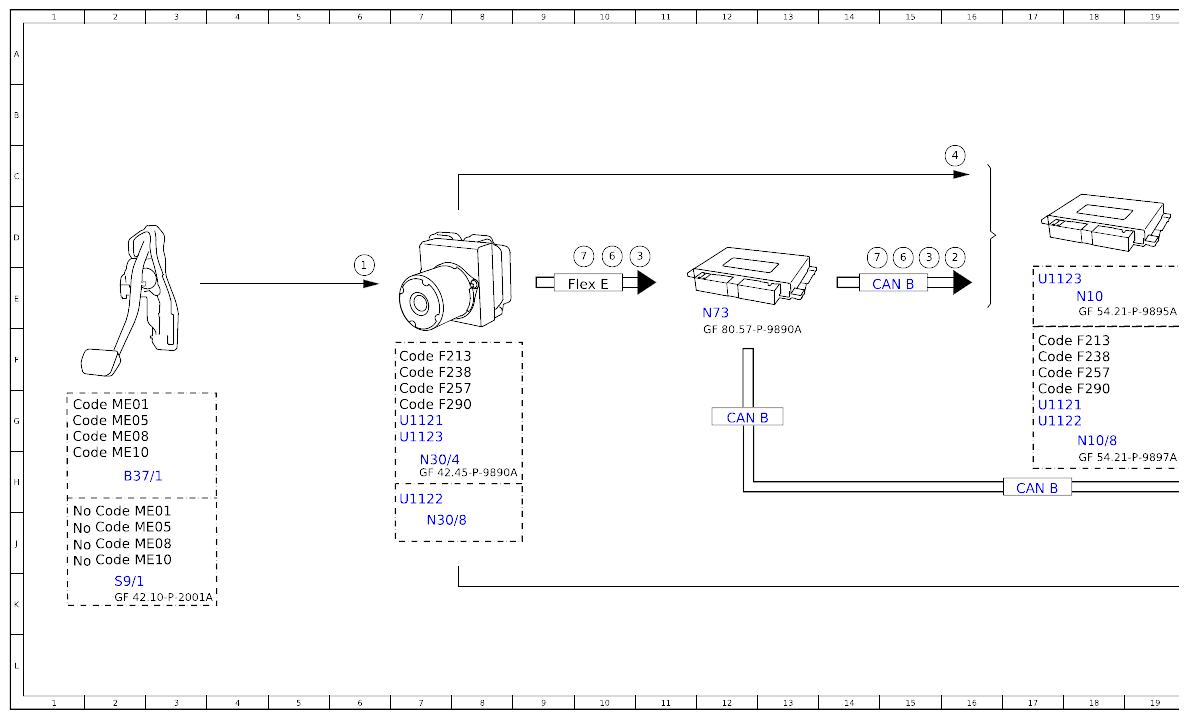

Function Schematic, Actuate Brake Lights - PE82.10-P-2512-97A
Model 118, 167, 177, 243, 247, 293
Model 213, 238, 257, 290 as of model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Brake light switch, status | 11A |
| 2 | Circuit 15, status | 4H |
| 3 | Service brake, status | 24H |
| 3 | Service brake, status | 11E |
| 3 | Service brake, status | 7F |
| 4 | Circuit 54, status | 24J |
| 4 | Circuit 54, status | 7F |
| 5 | Brake lights, actuation | 11C |
| 5 | Brake lights, actuation | 5D |
| 6 | Vehicle speed, signal | 10E |
| 7 | Emergency stop, signal | 25C |
| 7 | Emergency stop, signal | 29D |
| 7 | Emergency stop, signal | 29E |
| 8 | Brake light dark phase, signal | 24F |
| B37/1 | Pedal angle sensor | 2H |
| CAN B | Interior CAN | 12G |
| CAN B | Interior CAN | 15E |
| CAN B | Interior CAN | 22F |
| CAN B | Interior CAN | 17H |
| Code 550 | Trailer hitch | 25G |
| Code ME01 | Electric motor | 2J |
| Code ME01 | Electric motor | 1G |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUG-IN) | 2J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUG-IN) | 1G |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUG-IN) | 2J |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUG-IN) | 1G |
| E21 | Center stop lamp | 25E |
| E3 | Left rear lamp unit | 25C |
| E4 | Right rear lamp unit | 25C |
| Flex E | Chassis FlexRay | 10E |
| N10 | Central control module | 18E |
| N10/8 | Rear SAM control unit | 18G |
| N28/1 | Trailer recognition control unit | 25J |
| N30/4 | Electronic Stability Program control unit | 7H |
| N30/8 | Regenerative braking system control unit | 7J |
| N73 | Electronic ignition switch control unit | 12E |
| S9/1 | Stop lamp switch | 2K |
| U1121 | Valid for model 167 | 7G |
| U1121 | Valid for model 167 | 17G |
| U1122 | Valid for model 293 | 7H |
| U1122 | Valid for model 293 | 17G |
| U1123 | Valid for model 118, 177, 247 | 7G |
| U1123 | Valid for model 118, 177, 247 | 17E |
| X58x1 | Trailer socket | 29J |
