Retrofit Exit And Warning Lamp With Logo Projector - AZ82.20-P-0020MFB

Model 247

with code U62 (Exterior light and sight package)

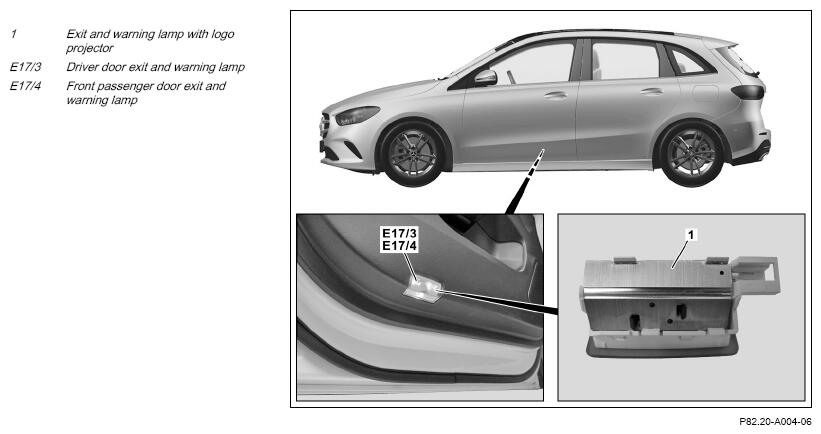

Shown on model 247.0

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Switch off entrance and exit illumination at overhead control panel.
2	Use long wedge to remove driver's door exit and warning lamp (E17/3) and front passenger door exit and warning lamp (E17/4).	Unclip driver's door exit and warning lamp (E17/3) and front passenger door exit and warning lamp (E17/4) from below starting at the left side. Otherwise, the electrical connector located on the right-hand side will be damaged. Long wedge	Fig 1
3	Remove black 2-pin coupling of driver's door exit and warning lamp (E17/3) and front passenger door exit and warning lamp (E17/4).	The driver's door exit and warning lamp (E17/3) and front passenger door exit and warning lamp (E17/4) are no longer required.
	Install
4	Install exit and warning lamp with logo projector (1) on right and left.	Parts kit without adapter cable	AZ82.20-P-0020-04A
		Parts kit with adapter cable If the entrance and exit illumination on the overhead control panel control unit is switched on, the exit and warning lamp with logo projector (1) lights up as soon as it is connected to the vehicle wiring harness.	AZ82.20-P-0020-04C
		Wiring harness repair kit, basic	Fig 3
		New passenger car wiring harness repair kit	Fig 2
	Update Vehicle Documentation (VeDoc)
5	Attach note "Exit and warning lamp with logo projector retrofitted as per AZ82.20-P-0020MFB" under field organization texts to DG 72 and DG 82.
	Check
6	Perform function test.	The entry and exit illumination on overhead control panel control unit must be switched on.

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying New Passenger Car Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA
