Check Setting Of High Beam - AP82.10-P-8260-02AO

Model 247

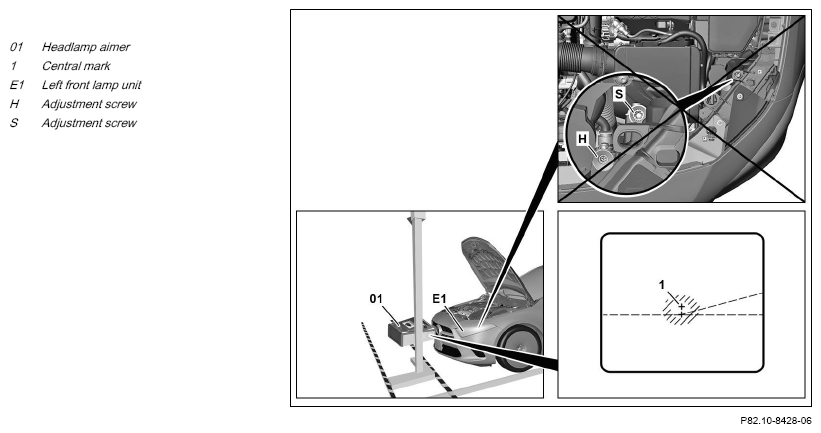

Shown on model 177 with ECE version of headlamp

Courtesy of MERCEDES-BENZ USA

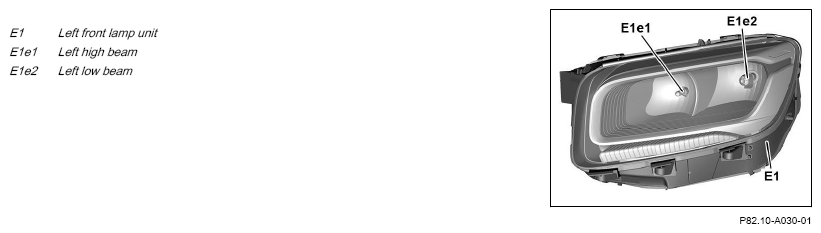

Halogen headlamp, shown on model 247

Courtesy of MERCEDES-BENZ USA

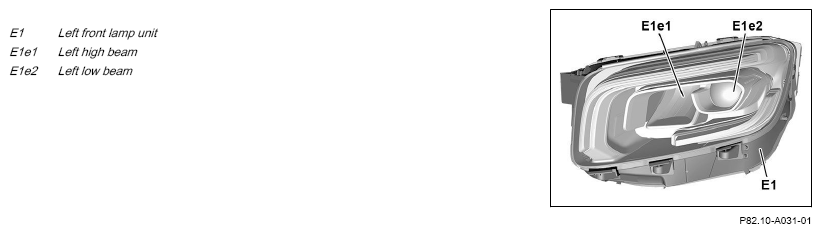

Static LED headlamp, shown on model 247

Courtesy of MERCEDES-BENZ USA

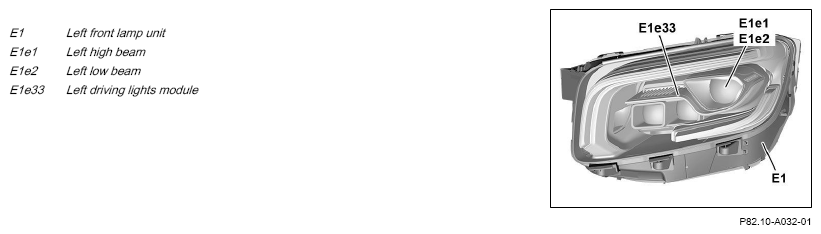

Dynamic LED headlamp, shown on model 247

Courtesy of MERCEDES-BENZ USA

1. Align headlamp adjuster (01) parallel to the vehicle at the height of the left high beam (E1e1) in the left front lamp unit (E1).

   Ensure that the headlamp adjuster (01) is set in front of the left high beam (E1e1) and not in front of the left low beam (E1e2) or the left driving light module (E1e33). Otherwise it is possible that the high beam will not be correctly adjusted.



   Proceed with the right along the same lines as the left.

2. Check setting of high beam.

   Do not perform any correction to headlamp adjustment screws (H, S).

   Otherwise, the previously adjusted low beams will be mis-adjusted.



   The center of the light beam must be positioned on the central mark (1) in the headlamp adjuster (01).

   If high beam setting is not correct,

   ↓

   rectify the problems.



   After obtaining special order.
