Retrofit Wiring Harness For Mercedes-Benz Dashcam At Rear With Existing Mercedes-Benz Dashcam At Front - AZ54.71-P-0003-01MFX
Model 247.7
| Topical note | Notes on retrofitting electrical/optical lines | AH82.00-P-0000-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A |
MODIFICATION NOTES
| 29.06.2020 | Expose black plug (8.1) of dashcam wiring harness (8). | Operation step 2 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1133-06A | Silikonspray Silikon-Fluid, 0.4 l art. no. 0893 221 000 | Adolf Wurth GmbH & Co. KG Reinhold-Wurth-Str. 12-17 74653 Kunzelsau-Gaisbach Germany Tel. +49 7940 15-0 Fax +49 7940 15-1000 http://www.wuerth.de |
| BR00.45-Z-1144-02A | Adhesive tape roll, non-woven Tesa tape, 50 meters, 50 mm wide | A 008 989 50 85 09 |

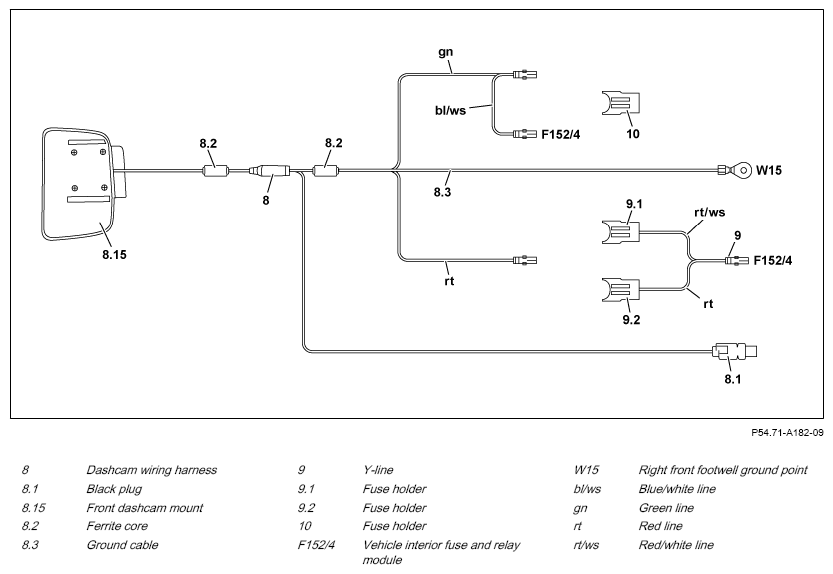

Connection scheme

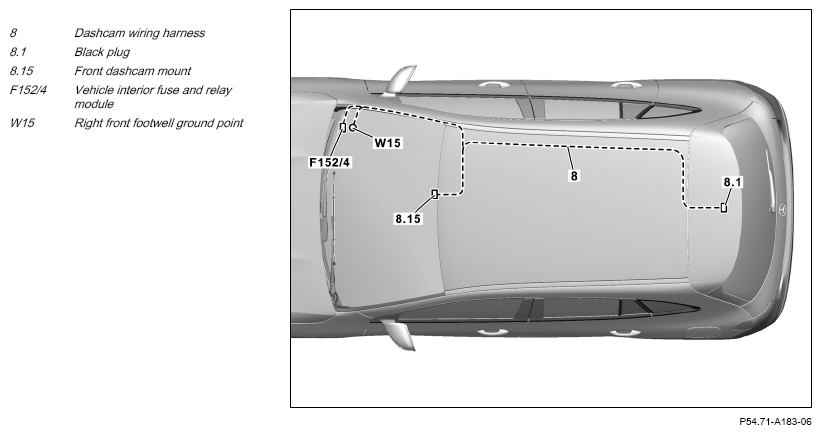

Routing diagram

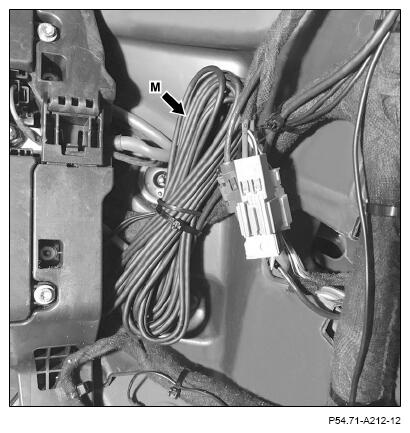

- Expose strapped down branch-off line (arrow M) for dashcam at rear.

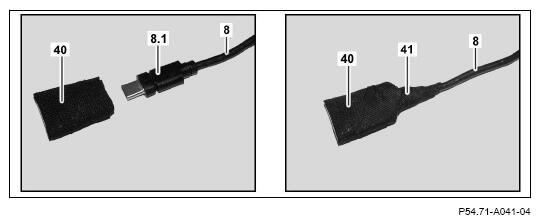

- Expose black plug (8.1) of dashcam wiring harness (8).
To do this, remove the fabric tape (41) and pocket (40) from dashcam wiring harness (8).
- Route branch-off line for dashcam at rear of dashcam wiring harness (8) from vehicle interior fuse and relay module (F152/4) to A-pillar at top.
Route dashcam wiring harness (8) through cable duct behind crossmember for instrument panel.

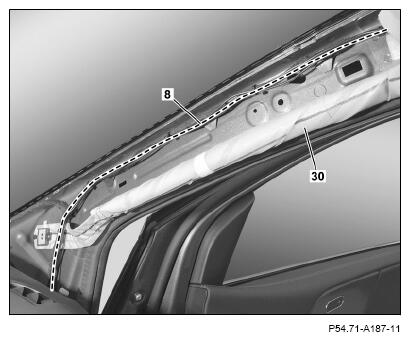

Route branch-off line for dashcam at rear above the window airbag (30).
Use a pull-through device.
Shown with removed roof lining

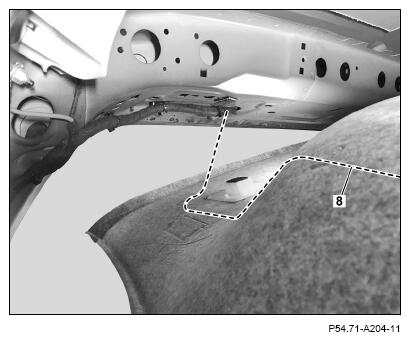

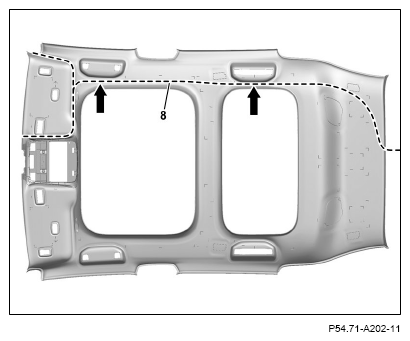

- Route branch-off line for rear dashcam of dashcam wiring harness (8) on roof lining towards rear up to center of roof lining.
Route branch-off line for rear dashcam behind mounts for front and rear grab handles (arrows).
- Strap down excess lengths of dashcam wiring harness (8) in front passenger footwell.
- Fasten dashcam wiring harness (8) on roof lining using felt adhesive tape.

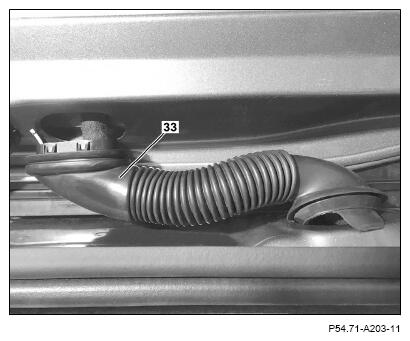

- Remove cable duct (33) from liftgate and from rear roof frame.
- Route dashcam wiring harness (8) through opening for cable duct (33) on rear roof frame.
- Route dashcam wiring harness (8) through cable duct (33) into liftgate.

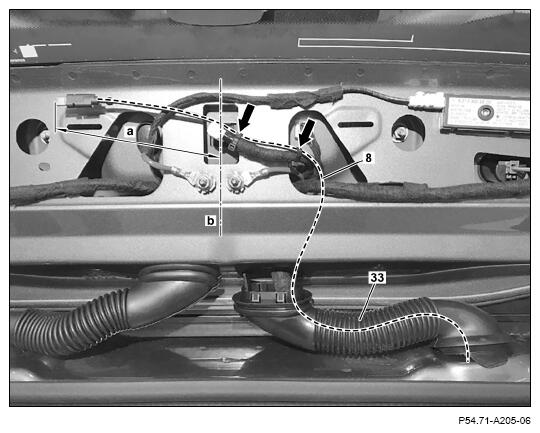

- Route dashcam wiring harness (8) by dimension (a) beyond center of liftgate (b) to the left.
Dimensions:
a = 170 mm
Apply silicon spray to inside of cable duct (33) before routing it.
Use a pull-through device.
- Fix dashcam wiring harness (8) in place using cable ties (arrows).
- Attach cable duct (33).
