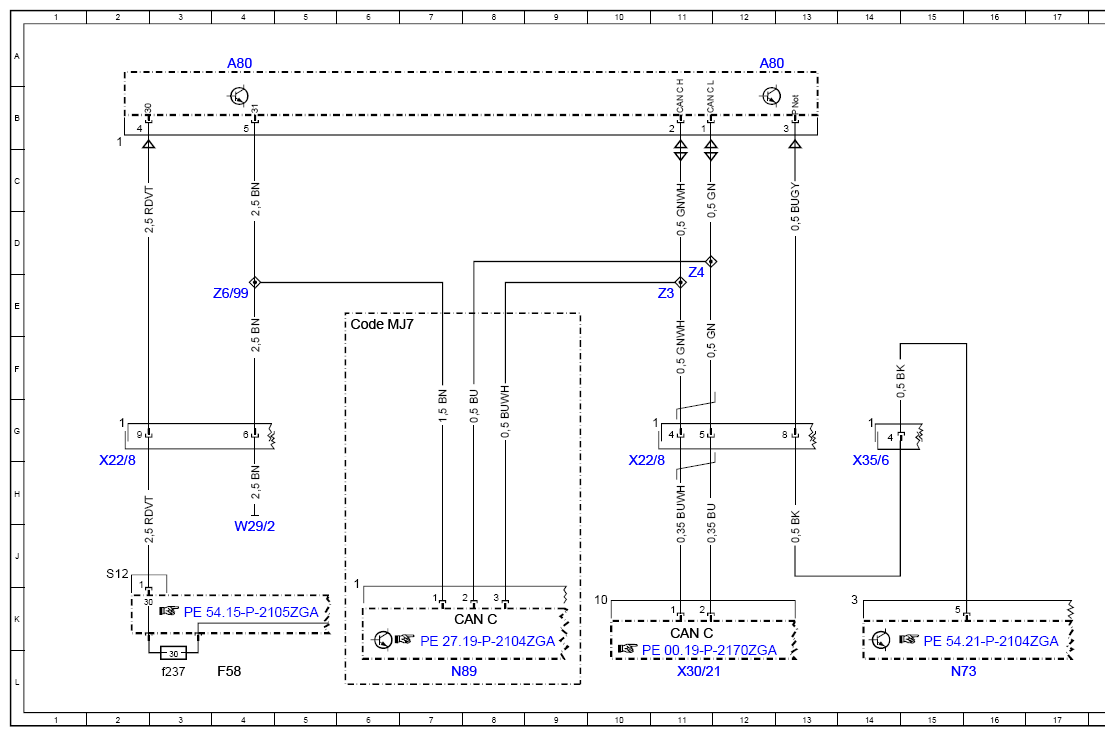

Wiring Diagram For Intelligent Servo Module (ISM) Control Unit - PE27.60-P-2101-97ZGA
Transmission 722.9 in model 463 as of model year 2013 up to model year 2019 /YoM 12 model refinement package up to YoM 18 model refinement package, control unit A80
| Code: | Designation: | Position: |
|---|---|---|
| AO | Color code key | 24L |
| A80 | Intelligent servo module for DIRECT SELECT | 4A |
| A80 | Intelligent servo module for DIRECT SELECT | 12A |
| CAN C | drivetrain CAN | 11K |
| CAN C | drivetrain CAN | 8K |
| Code MJ7 | Stop/start function | 6E |
| F58 | Front passenger footwell fuse and relay module | 4L |
| F58f237 | Fuse 237 | 3L |
| N73 | Electronic ignition switch control unit | 15L |
| N89 | Transmission oil auxiliary pump control unit | 7L |
| W29/2 | Right A-pillar ground connection | 4J |
| X22/8 | Fully integrated transmission controller unit electrical connector | 2H |
| X22/8 | Fully integrated transmission controller unit electrical connector | 10H |
| X30/21 | drivetrain CAN (CAN C) potential distributor electrical connector | 11L |
| X35/6 | Instrument panel and module box electrical connector | 14H |
| Z3 | Tml. 15 connector sleeve | 11E |
| Z4 | Circuit 15/30 connector sleeve | 11E |
| Z6/99 | Transmission circuit 31 connector sleeve | 4E |
