Fasten Removed Transmission To Assembly Stand - AR27.10-P-0600-01EWM

Transmission 725.0 (except 725.007/017/037/047)

000 588 00 31 00 Assembly stand for cars

Fig 1: Identifying Lifting Device (724 589 02 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Support Fixture (725 589 00 40 00)

Courtesy of MERCEDES-BENZ USA

Mount support fixture (2) on engine assembly stand (3) and tighten bolts (4).

Courtesy of MERCEDES-BENZ USA

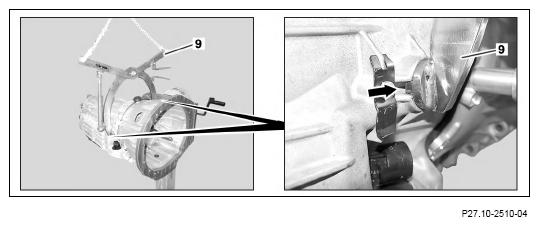

Mount lifting device (9) at transmission housing.
® Make sure that the lifting device (9) is seated correctly in the cutouts of the transmission housing (arrow); check this by rattling the lifting device (9).

Otherwise damage will occur.
Attach lifting device (9) to boom crane.

Courtesy of MERCEDES-BENZ USA

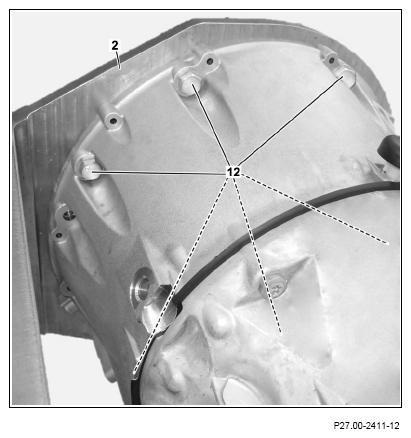

Place transmission on support fixture (2) so that the holes on the transmission and support fixture (2) line up with each other.
Place screws/bolts (12) and tighten.
Detach lifting device (9) from transmission.
