Remove/Install Spare Tire Carrier - AR40.00-P-0250XG

Model 463

as of model year 2019

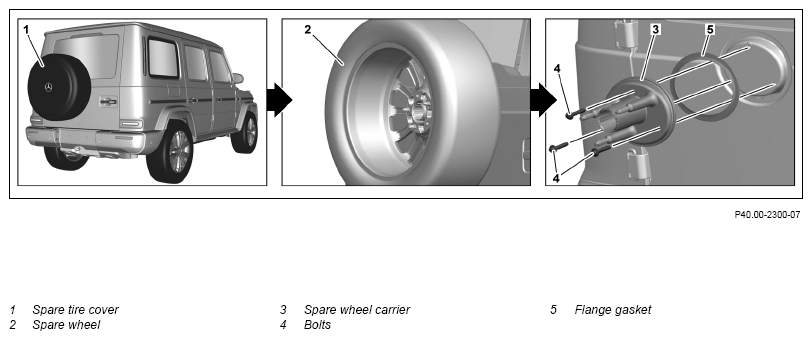

Fig 1: Spare Tire Carrier Components Location - Model 463 As Of Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Remove/install
1	Detach spare wheel cover (1).
2	Detach spare wheel (2).	Wheel nut, spare wheel to spare wheel carrier	*BA40.00-P-1001-01A
3	Remove screws (4) and remove spare wheel carrier (3).	Replace screws (4). Spare wheel carrier to rear-end door	*BA40.00-P-1003-01A
	Check
4	Check condition of flange seal (5).	If the flange seal (5) is damaged, ↓ replace the flange seal (5).
5	Install in reverse order.

SPARE WHEEL

Number	Designation		Model 463 up to model year 2019	Model 463 as of model year 2019
BA40.00-P-1001-01A	Wheel nut, spare wheel to spare wheel carrier	Nm	45	20

SPARE WHEEL

Number	Designation			Model 463 up to model year 2019	Model 463 as of model year 2019
BA40.00-P-1003-01A	Spare wheel carrier to rear-end door	M10	Nm	-	70
