Wiring Diagram For Adaptive Damping System (ADS) Control Unit - PE32.32-P-2101-97ZHA
Model 463 (except 463.342) as of model year 2019
with code A20 (Suspension with Adaptive Damping system)
Control unit N51/5

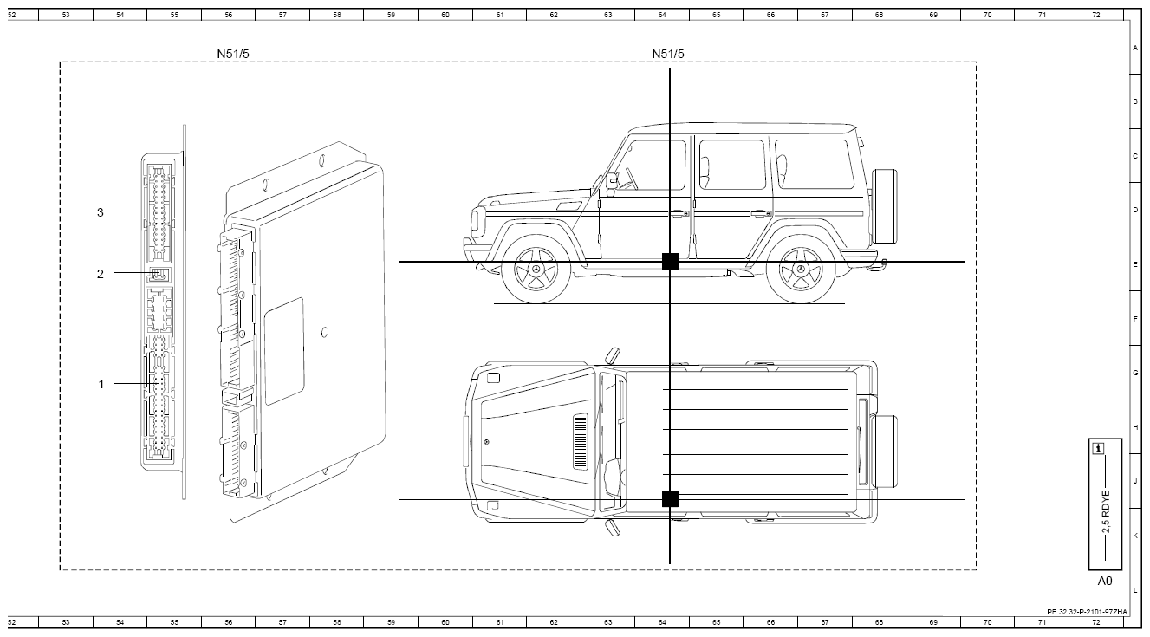

| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 72L |

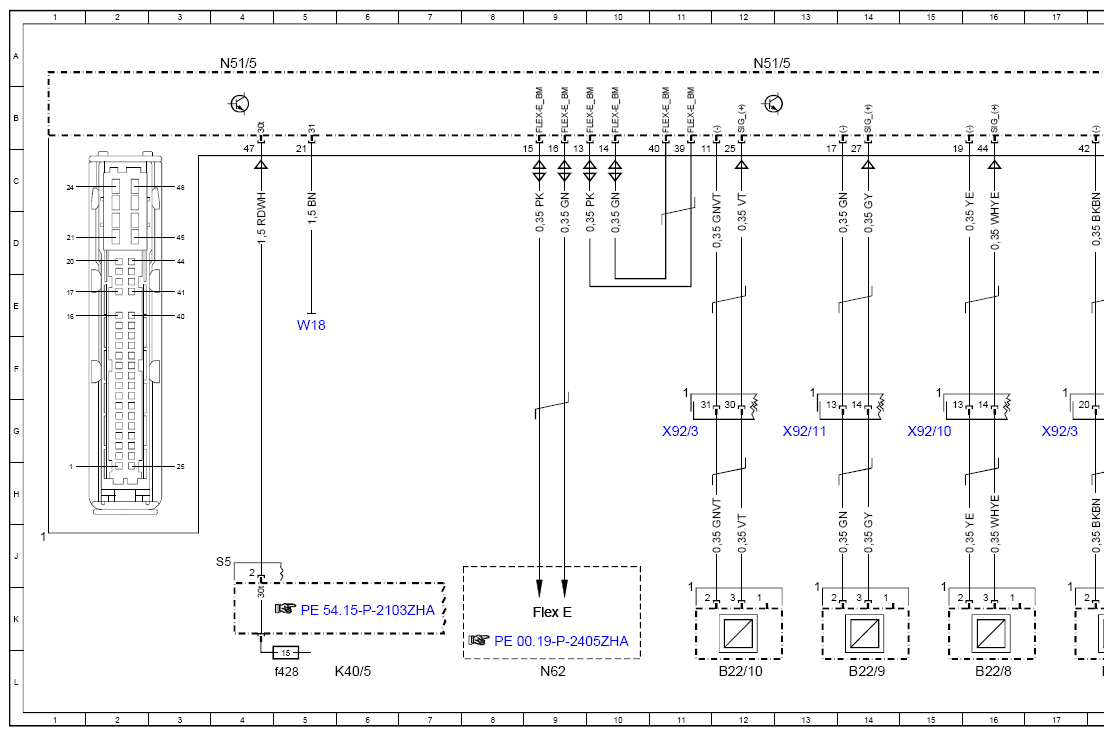

| B22/10 | Right rear level sensor | 12L |
| B22/7 | Left rear level sensor | 18L |
| B22/8 | Left front level sensor | 16L |
| B22/9 | Right front level sensor | 14L |

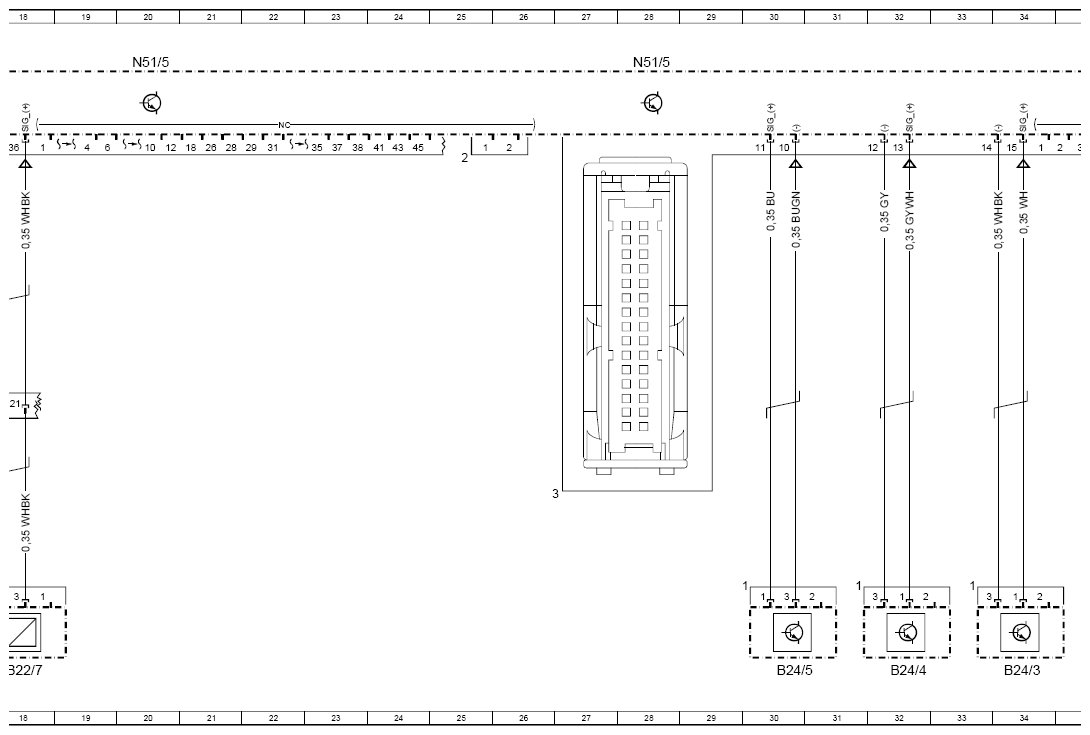

| B24/3 | Left front body lateral acceleration sensor | 34L |
| B24/4 | Right front body lateral acceleration sensor | 32L |
| B24/5 | Left rear body lateral acceleration sensor | 30L |
| Flex E | Chassis FlexRay | 9K |
| K40/5 | Rear fuse and relay module | 6L |
| K40/5f428 | Fuse 428 | 5L |
| N51/5 | Adaptive damping system control unit | 4A |
| N51/5 | Adaptive damping system control unit | 12A |
| N51/5 | Adaptive damping system control unit | 20A |
| N51/5 | Adaptive damping system control unit | 28A |
| N51/5 | Adaptive damping system control unit | 36A |
| N51/5 | Adaptive damping system control unit | 44A |
| N51/5 | Adaptive damping system control unit | 50A |
| N51/5 | Adaptive damping system control unit | 56A |
| N51/5 | Adaptive damping system control unit | 64A |
| N62 | Parking system control unit | 9L |
| W18 | Left front seat crossmember ground point | 5E |
| X62/32 | Rear axle electrical connector, left distributor | 42H |
| X62/33 | Rear axle electrical connector, right distributor | 38H |
| X62/6 | Front axle electrical connector, right distributor | 45H |
| X62/7 | Front axle electrical connector, left distributor | 49H |
| X92/10 | Left front vehicle interior/frame electrical connector | 15G |
| X92/10 | Left front vehicle interior/frame electrical connector | 49E |
| X92/11 | Right front interior module/frame electrical connector | 13G |
| X92/11 | Right front interior module/frame electrical connector | 45E |
| X92/3 | Vehicle frame electrical connector | 11G |
| X92/3 | Vehicle frame electrical connector | 17G |

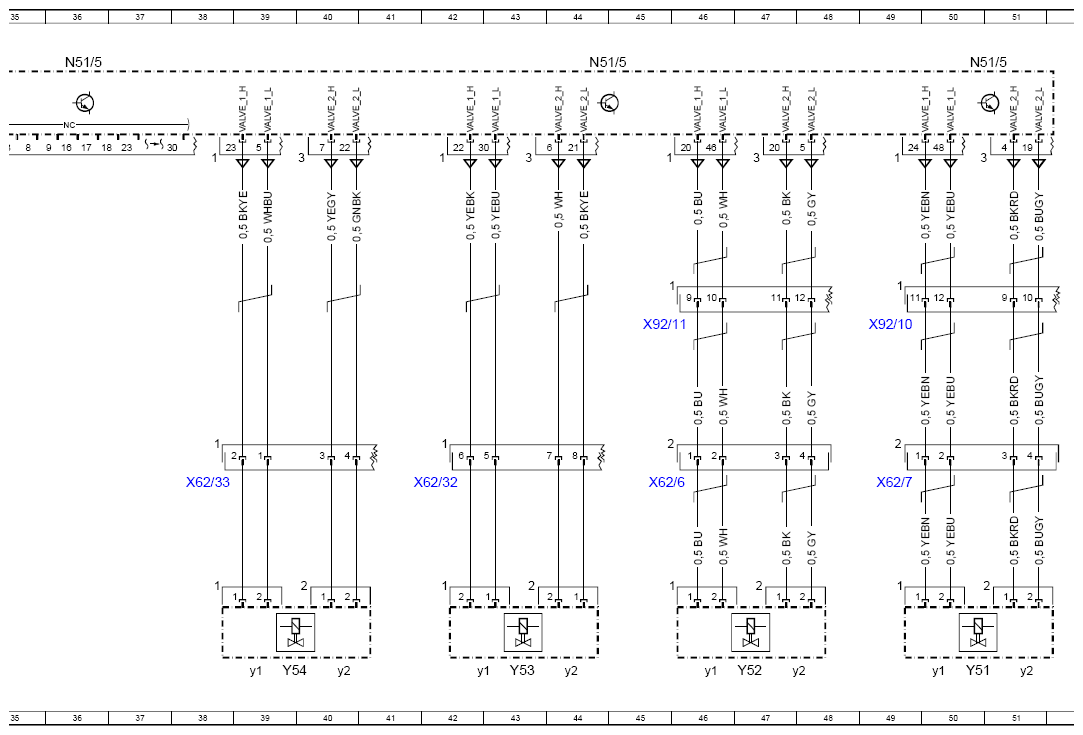

| Y51 | Left front axle damping valve unit | 50L |
| Y51y1 | Solenoid valve 1, front left | 50L |
| Y51y2 | Solenoid valve 2, front left | 51L |
| Y52 | Right front axle damping valve unit | 47L |
| Y52y1 | Solenoid valve 1, front right | 46L |
| Y52y2 | Solenoid valve 2, front right | 47L |
| Y53 | Left rear axle damping valve unit | 43L |
| Y53y1 | Solenoid valve 1, rear left | 42L |
| Y53y2 | Solenoid valve 2, rear left | 44L |
| Y54 | Right rear axle damping valve unit | 39L |
| Y54y1 | Solenoid valve 1, rear right | 39L |
| Y54y2 | Solenoid valve 2, rear right | 40L |
