Disassemble/Assemble Rear Axle Shaft - AR35.30-P-7351G

Model 460 with rear axle 741

with drum brakes on the rear axle

Model 461 with rear axle 741 (except 741.171/52/53)

with drum brakes on the rear axle

Model 463 with rear axle 741 (except 741.52/53)

with drum brakes on the rear axle

Courtesy of MERCEDES-BENZ USA

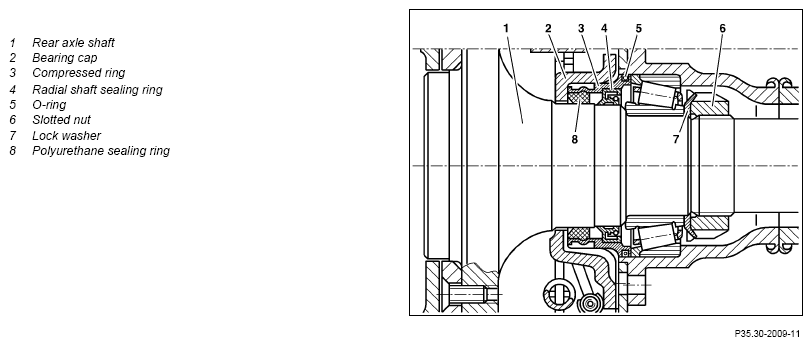

Rotation direction of rear axle shaft (1) in direction of arrow

Retainer of slotted nut (6)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove rear axle shaft (1).		AR35.30-P-0620G
	Disassemble
2	Clamp rear axle shaft (1) before disassembling.	On vehicles with anti-lock braking system (ABS), do not damage the ring gear. Otherwise, the anti-lock braking system (ABS) will malfunction.
		Screw in two wheel bolts and clamp them in a vise.
3	Release and remove slotted nut (6).	The slotted nut (6) with turned groove has a left-hand thread.
		Pronged wrench	Fig 2
4	Detach lock washer (7).
5	Press off tapered roller bearing together with bearing cap (2), radial shaft sealing ring (4) and compressed ring (3) from rear axle shaft (1).	The compressed ring (3) forms a unit together with the polyurethane sealing ring (8), the O-ring (5) and the radial shaft sealing ring (4).
		Assembly plate	Fig 3
6	Detach O-ring (5) from compressed ring (3).
	Assemble
7	Slide bearing cap (2) and compressed ring (3) onto rear axle shaft (1).	Pack cavity between dust lip and sealing lip with grease, apply light coating of grease to polyurethane sealing ring (8).
		Long-life grease	*BR00.45-Z-1001-06A
8	Press tapered roller bearing onto rear axle shaft (1).	The flange ring of the L-shaped bearing must point toward the compressed ring (3). Otherwise, the factory-set bearing play will become impermissible.
		To do so, heat up tapered roller bearing to approx. 80°C.
9	Lightly grease O-ring (5) and fit onto compressed ring (3).	Replace O-ring (5).
		Long-life grease	*BR00.45-Z-1001-06A
10	Apply grease to tapered roller bearing.
		Long-life grease	*BR00.45-Z-1001-06A
11	Position lock washer (7).	Replace locking plate (7).
12	Attach slotted nut (6).	On vehicles with anti-lock braking system (ABS), do not damage the ring gear. Otherwise, the anti-lock braking system (ABS) will malfunction.
		The slotted nut (6) with turned groove has a left-hand thread.
		Slotted nut to rear axle shaft	*BA35.30-P-1002-01C
		Torque wrench	Fig 1
		Pronged wrench	Fig 2
13	Secure slotted nut (6) with lock washer (7) at both grooves.	Secure slotted nut (6) so that both directions of rotation are locked (see arrows on axle shaft and illustration above).
14	Unclamp rear axle shaft (1) from vise and remove wheel bolts.	On vehicles with anti-lock braking system (ABS), do not damage the ring gear. Otherwise, the anti-lock braking system (ABS) will malfunction.
	Install
15	Install rear axle shaft (1).		AR35.30-P-0620G
