Remove/Install Differential Lock Of Front Axle - AR33.40-P-0001XGA
Model 463 with engine 176, 177
as of model year 2019
Model 463 with engine 264
as of model year 2019
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | ||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove/install | |||
| 1 | Remove lower center engine compartment lining. | AR61.20-P-1105XG | |

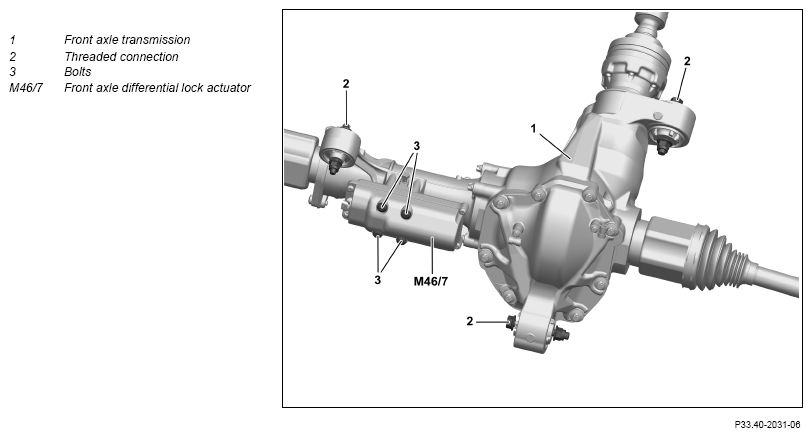

| 2 | Support front axle differential (1). | ||
| 000 588 10 62 00 Support plate | WS26.00-P-3309B | ||
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B | ||
| 3 | Unscrew threaded connections (2). | *BA33.30-P-1002-03C | |
| 4 | Lower front axle differential (1) far enough until the bolts (3) are accessible. | ||
| 5 | Release and disconnect electrical connector from front axle differential lock actuator (M46/7). | ||
| 6 | Remove screw/bolts (3). | *BA33.40-P-1006-01A | |
| 7 | Remove front axle differential lock actuator (M46/7) downwards. | ||
| 8 | Install in the reverse order. | ||

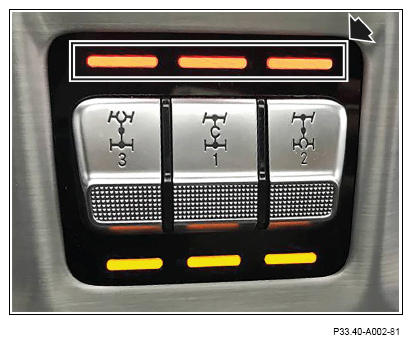

| 9 | Check front axle differential lock actuator (M46/7) for proper operation. | Then drive in light serpentine lines at walking pace until the indicator lamps of all three locks light up red (arrow) at the switches. Then deactivate locks and "Low Range". |
FRONT AXLE GEAR
| Number | Designation | Model 463 as of model year 2019 | |||
|---|---|---|---|---|---|
| BA33.30-P-1002-03C | Bolt, front axle differential/axle tube (bearing element) to frame | M10 | Nm | 60 | |
| M12 | Stage 1 | Nm | 50 | ||
| Stage 2 | ∠° | 90 | |||
DIFFERENTIAL LOCK SHIFT CYLINDER
| Number | Designation | Model 463 as of model year 2019 | ||
|---|---|---|---|---|
| BA33.40-P-1006-01A | Screw, differential lock to axle tube | Stage 1 | Nm | 10 |
| Stage 2 | Nm | 20 | ||
| Stage 3 | ∠° | 60 | ||
| Tightening procedure | - | |||
