Determine Thickness Of Shims - AR33.25-P-0208-01GW

Model 461.339

with code ZD4 (Vehicle for non-civilian operations)

Model 463

as of model year 2013 up to model year 2019

Fig 1: Identifying Guide Bushes (460 589 01 14 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Screw Clamp (460 589 04 31 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Setting Ring Gauges (463 589 00 23 00)

Courtesy of MERCEDES-BENZ USA

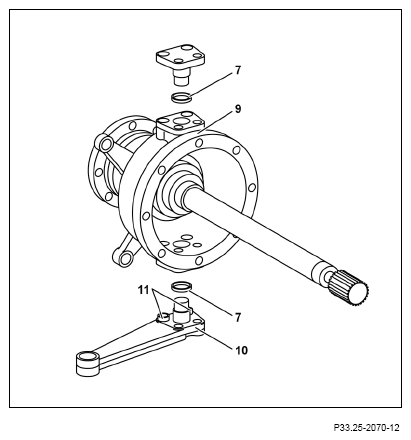

Place joint housing (9) with drive shaft onto steering knuckle.

Courtesy of MERCEDES-BENZ USA

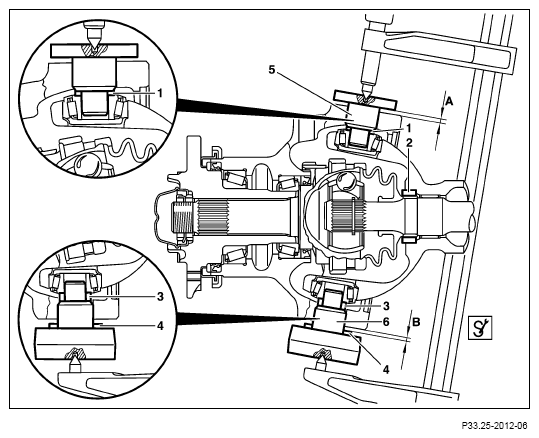

Slide 2 mm wide adjusting ring (1) onto upper kingpin (5).
Install upper kingpin (5) without shims.
Slide 6 mm wide adjusting ring (3) and 4 mm wide adjusting ring (4) onto lower kingpin (6).
Note model year dependent change in diameter of lower kingpin (6) and 6 mm wide adjusting ring (3).

The lower kingpin (6) has an interference fit on the last 5 mm. The steering control arm is fixed in the joint housing by pilot bushings with lengths of 5 mm. Slide a 6 mm wide adjusting ring (3) onto lower kingpin (6) so that the measurement is not distorted by jamming. The 4 mm wide adjusting ring (4) is used to facilitate measuring distance B (B) with a feeler gauge.

Courtesy of MERCEDES-BENZ USA
Install steering control arm without shims.
Mount C-clamp and close far enough until no more play is registered in the steering knuckle bearing.
In doing so move the joint housing to and fro so that the bearing can settle.
Measure distance A (A) and distance B (B) using feeler gauge.
Supplementary dimension C is the difference of the adjusting rings plus the pretension.
Determine thickness of shims at top of steering knuckle.
Example:

Supplementary dimension C 2.15 mm

- Distance A (A) - 1.30 mm

-------------------------

--------

= Thickness of shims = 0.85 mm
Determine thickness of shims at bottom of steering knuckle.
Example:

Supplementary dimension C 2.15 mm

- Distance B (B) - 1.10 mm

-------------------------

--------

= Thickness of shims = 1.05 mm
