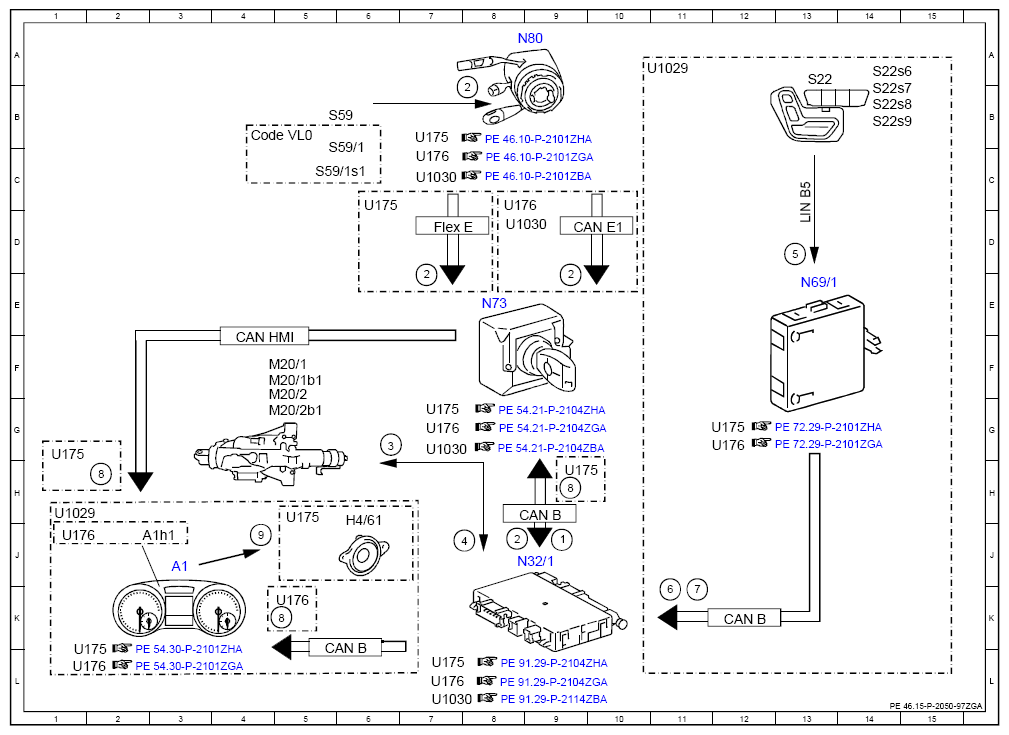

Function Schematic Of Electrical System For Steering Column Adjustment - PE46.15-P-2050-97ZGA
Model 463
as of model year 2013
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 9J |
| 2 | Steering column adjustment switch, status | 8B |
| 2 | Steering column adjustment switch, status | 9E |
| 2 | Steering column adjustment switch, status | 9J |
| 2 | Steering column adjustment switch, status | 7E |
| 3 | Steering column adjustment motor, actuation | 6G |
| 4 | Steering column adjustment motor, signal | 7J |
| 5 | Seat adjustment switch group, status | 13D |
| 6 | Store memory position, request | 11K |
| 7 | Adopt memory position, request | 11K |
| 8 | Acknowledgment tone after memory positions stored successfully, request | 2H |
| 8 | Acknowledgment tone after memory positions stored successfully, request | 9H |
| 8 | Acknowledgment tone after memory positions stored successfully, request | 5K |
| 9 | Speaker, actuation | 4J |
| A1 | Instrument cluster | 3J |
| A1h1 | Warning buzzer | 3J |
| CAN B | Interior CAN | 9H |
| CAN B | Interior CAN | 12K |
| CAN B | Interior CAN | 6L |
| CAN E1 | Chassis CAN 1 | 9D |
| CAN HMI | User interface CAN | 4F |
| Code VLO | Heated steering wheel | 4B |
| Flex E | Chassis FlexRay | 7D |
| H4/61 | Instrument cluster speaker | 6J |
| LIN B5 | Left front door LIN | 13C |
| M20/1 | Steering column in/out motor | 4F |
| M20/1b1 | Steering column in/out Hall sensor | 4F |
| M20/2 | Steering column up/down motor | 4G |
| M20/2b1 | Steering column up/down Hall sensor | 4G |
| N32/1 | Driver seat control unit | 9J |
| N69/1 | Left front door control unit | 13E |
| N73 | Electronic ignition switch control unit | 8E |
| N80 | Steering column module control unit | 9A |
| S22 | Left front seat adjustment switch group | 13A |
| S22s6 | Left front memory function switch | 14A |
| S22s7 | Left front memory 1 switch | 14B |
| S22s8 | Left front memory 2 switch | 14B |
| S22s9 | Left front memory 3 switch | 14B |
| S59 | Steering column adjustment switch | 5B |
| S59/1 | Steering column adjustment/steering wheel heater switch | 5C |
| S59/1si | Steering column adjustment raise/lower, forward/back switch | 5C |
| U1029 | Not valid for model 463.342 | 10A |
| U1029 | Not valid for model 463.342 | 1H |
| U1030 | Valid for model 463.342 | 7C |
| U1030 | Valid for model 463.342 | 7G |
| U1030 | Valid for model 463.342 | 7L |
| U1030 | Valid for model 463.342 | 8D |
| U175 | Valid for model 463 as of 03.04.2018 except model 463.342 | 7B |
| U175 | Valid for model 463 as of 03.04.2018 except model 463.342 | 6C |
| U175 U175 U175 | Valid for model 463 as of 03.04.2018 except model 463.342 Valid for model 463 as of 03.04.2018 except model 463.342 Valid for model 463 as of 03.04.2018 except model 463.342 | 7G 7L 5H |
| U175 | Valid for model 463 as of 03.04.2018 except model 463.342 | 1L |
| U175 | Valid for model 463 as of 03.04.2018 except model 463.342 | 11G |
| U175 | Valid for model 463 as of 03.04.2018 except model 463.342 | 1G |
| U175 | Valid for model 463 as of 03.04.2018 except model 463.342 | 9H |
| U176 | Valid for model 463 up to 02.04.2018 except model 463.342 | 7C |
| U176 | Valid for model 463 up to 02.04.2018 except model 463.342 | 7G |
| U176 | Valid for model 463 up to 02.04.2018 except model 463.342 | 7L |
| U176 | Valid for model 463 up to 02.04.2018 except model 463.342 | 8C |
| U176 | Valid for model 463 up to 02.04.2018 except model 463.342 | 1J |
| U176 | Valid for model 463 up to 02.04.2018 except model 463.342 | 1L |
| U176 | Valid for model 463 up to 02.04.2018 except model 463.342 | 11G |
| U176 | Valid for model 463 up to 02.04.2018 except model 463.342 | 5K |
