Check Condition Of Steering And Tie Rods - AP46.00-P-4651GA
Model 463
as of model year 2019

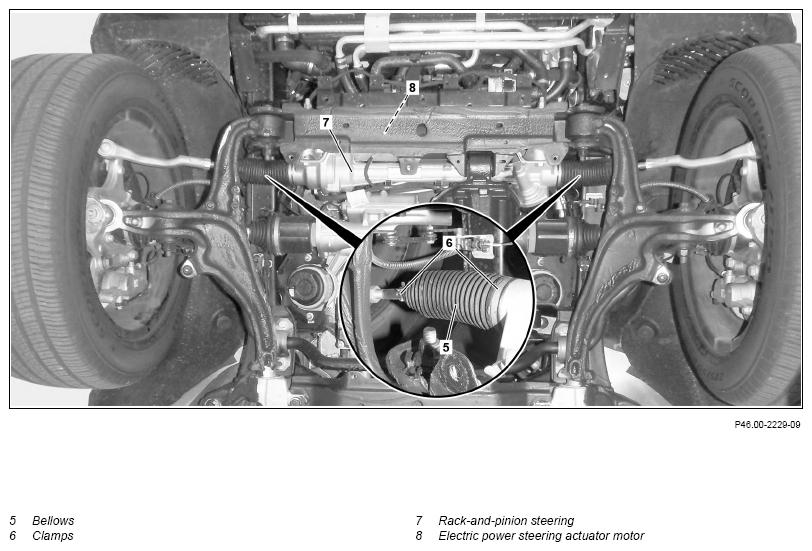

Shown on model 463.349

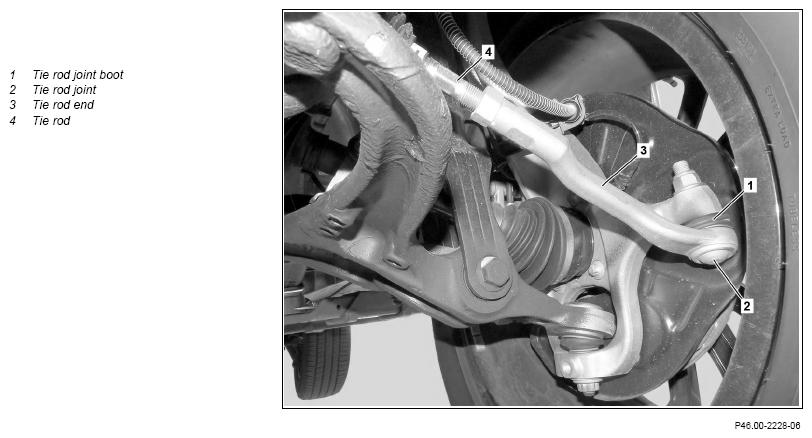

Shown on model 463.349
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Preparatory activity | |||
| 1 | Unlock steering lock. | ||
| Remove | |||
| 2 | Remove lower engine compartment linings. | ||
| AR61.20-P-1105XG | |||
| Check | |||
| 3 | Check tie rod joint boots (1) on tie rod ends (3) for condition, leak tightness and correct seating. | Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 If problems occur, ↓ rectify the problems. |
|
| 4 | Check tie rod joints (2) for play by firmly pulling and pushing the tie rod ends (3). | If problems occur, ↓ rectify the problems. |
|
| 5 | Check tie rod ends (3) and tie rods (4) for firm connection by pulling and pushing each one. | If problems occur, ↓ rectify the problems. |
|
| 6 | Check each inner tie rod joint for play by firmly pulling and pushing on tie rods (4) in direction of rack-and-pinion steering (7). | If problems occur, ↓ rectify the problems. |
|
| 7 | Stretch boots (5) by turning steering all the way to right and left, and check for cracks, indentations and chafe marks. | around the raised bead. Otherwise, the material may be damaged, leading to leakage with consequential damage. Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 If problems occur, ↓ rectify the problems. |
|
| 8 | Check clamps (6) are firmly and correctly seated. | Clamps (6) may not be damaged, loose or incorrectly seated. Otherwise this may lead to leakage with consequential damage. If problems occur, ↓ rectify the problems. |
|
| 9 | Check rack-and-pinion steering (7). | If problems occur, ↓ Replace steering for safety reasons. |
|
| 10 | Check electric power steering actuator motor (8). | If problems occur, ↓ Replace steering for safety reasons. |
|
| Install | |||
| 11 | Install lower engine compartment linings. | ||
| AR61.20-P-1105XG |
