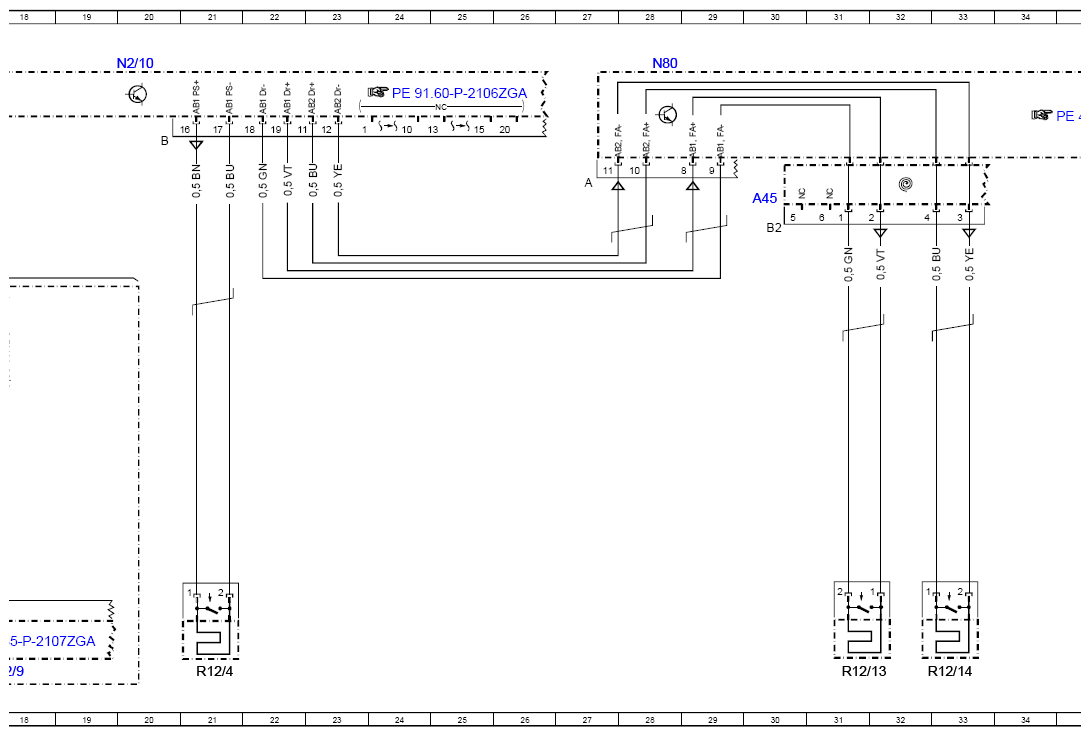

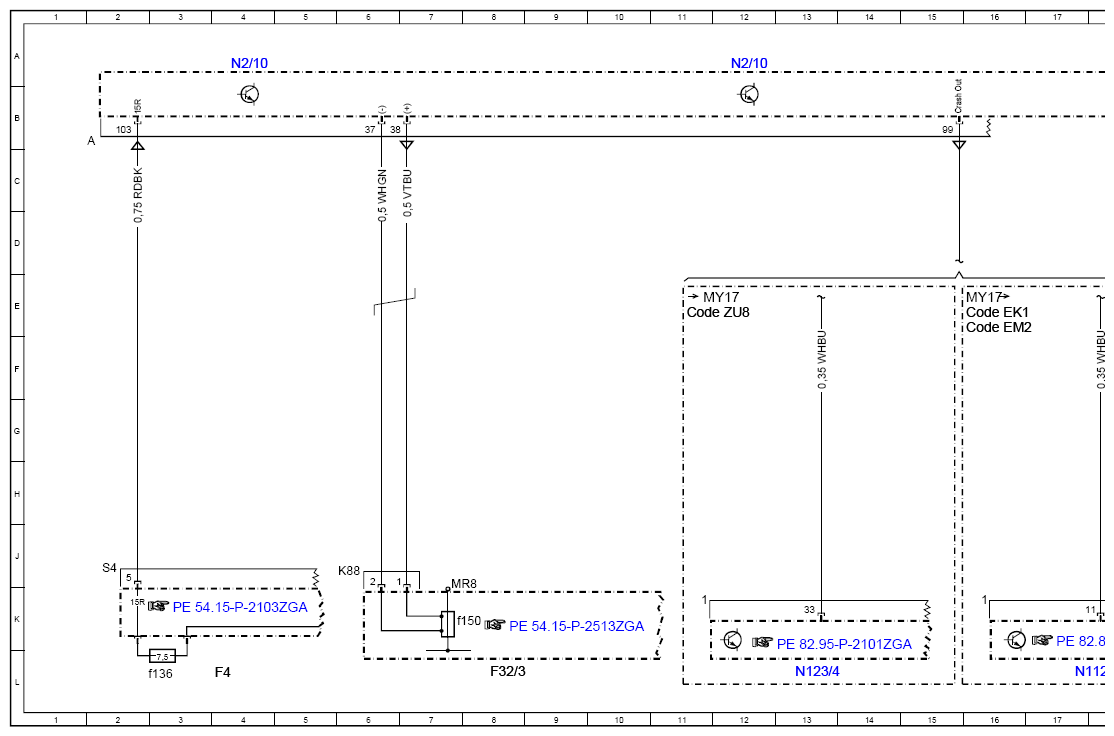

Wiring Diagram For Supplemental Restraint System Control Unit - PE91.60-P-2106-97ZGB
Model 463 as of model year 2013 up to model year 2019
/year model 2012 model refinement package up to model year 2019, control unit N2/ 10, sheet 2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 40L |
| A45 | Fanfare horns and airbag clock spring contact | 30C |
| Code EK1 | HERMES LTE communications module | 16E |
| Code EM2 | HERMES UMTS communications module | 16E |
| Code ZU8 | USA version | 11E |
| F32/3 | Engine compartment prefuse box | 8L |
| F32/3f150 | Pyrofuse | 8K |
| F4 | Rear fuse and relay module | 4L |
| F4f136 | Fuse 136 | 3L |
| N112/9 | HERMES control unit | 17L |
| N123/4 | Emergency call system control unit | 13L |
| N2/10 | Supplemental restraint system control unit | 4A |
| N2/10 | Supplemental restraint system control unit | 12A |
| N2/10 | Supplemental restraint system control unit | 20A |
| N80 | Steering column module control unit | 28A |
| N80 | Steering column module control unit | 36A |
| R12/13 | Driver airbag squib 1 | 31L |
| R12/14 | Driver airbag squib 2 | 33L |
| R12/4 | Front passenger airbag squib 1 | 21L |
