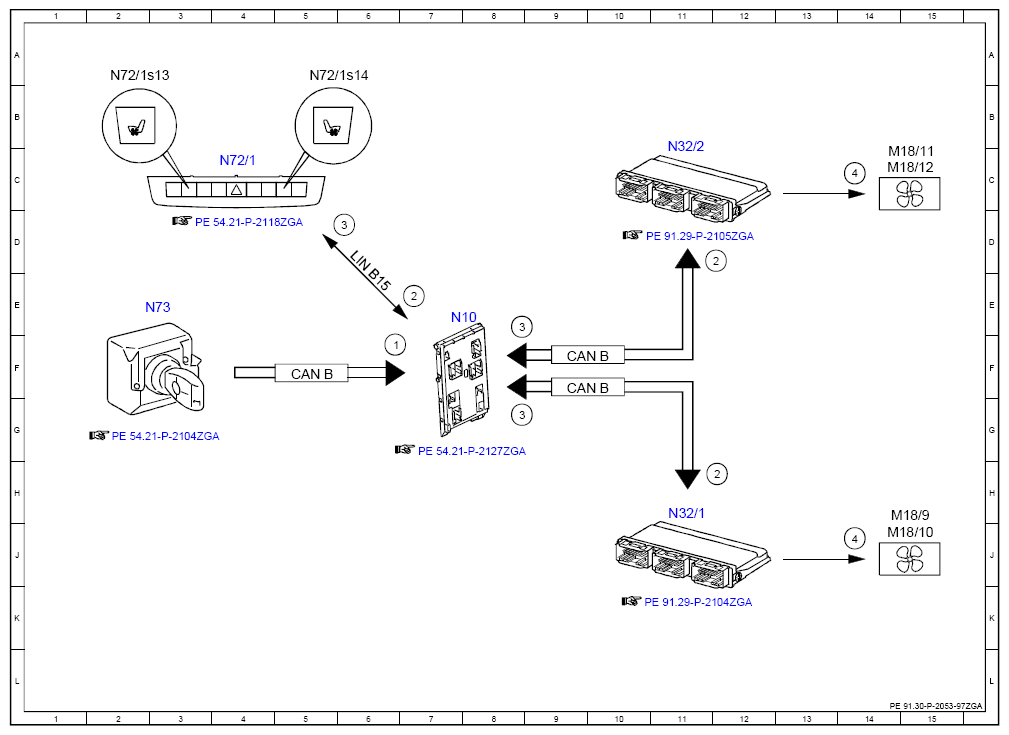

Seat Ventilation Electrical Function Schematic - PE91.30-P-2053-97ZGA
Model 463 as of model year 2013 up to model year 2019 with code PA1 (Seat comfort package)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 6F |
| 2 | Seat ventilation button, status | 7E |
| 2 | Seat ventilation button, status | 11D |
| 2 | Seat ventilation button, status | 11H |
| 3 | Seat ventilation status indication, signal | 6D |
| 3 | Seat ventilation status indication, signal | 8E |
| 3 | Seat ventilation status indication, signal | 8G |
| 4 | Seat ventilation, actuation | 14J |
| 4 | Seat ventilation, actuation | 14C |
| CAN B | Interior CAN | 5F |
| CAN B | Interior CAN | 9F |
| CAN B | Interior CAN | 9F |
| LIN B15 | Battery sensor LIN | 6E |
| M18/10 | Left front backrest seat ventilation motors | 14J |
| M18/11 | Right front seat cushion seat ventilation motors | 14C |
| M18/12 | Right front backrest seat ventilation motors | 14C |
| M18/9 | Left front seat cushion seat ventilation motors | 15H |
| N10 | SAM control unit | 7E |
| N32/1 | Driver and steering column front seat adjustment control unit with memory | 11H |
| N32/2 | Front passenger front seat adjustment control unit with memory | 11C |
| N72/1 | Upper control panel control unit | 4C |
| N72/1s13 | Left front seat ventilation button | 2A |
| N72/1s14 | Right front seat ventilation button | 5A |
| N73 | EIS [EZS] control unit | 2E |
