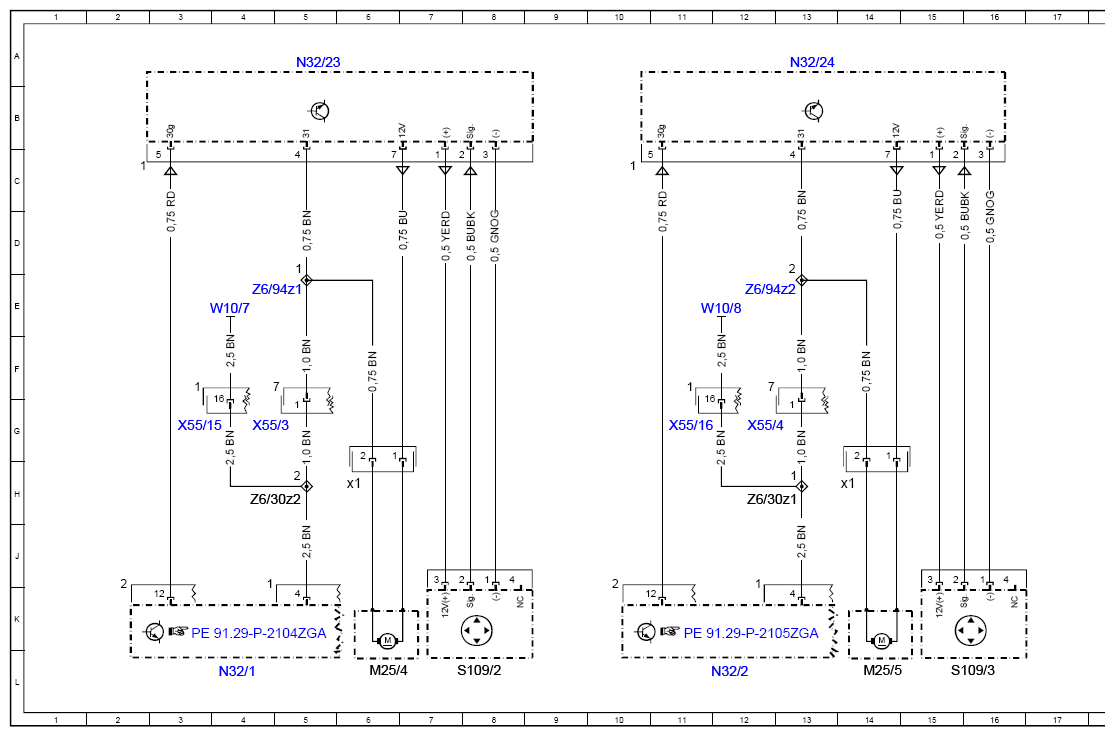

Lumbar Support Wiring Diagram - PE91.29-P-2109-97ZGA
Model 463 as of model year 2013 up to model year 2019
/year model 2012 facelift up to year model 2018 facelift, control unit N32/23, N32/24
| Code: | Designation: | Position: |
|---|---|---|

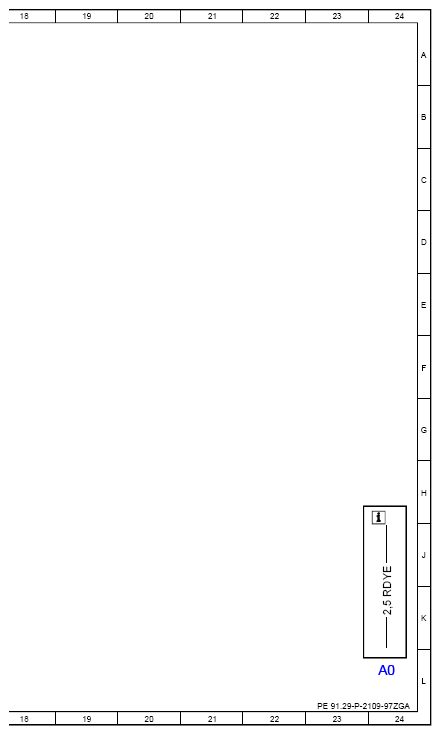

| A0 | Color code key | 24L |
| M25/4 | Driver seat lumbar support pneumatic pump | 6L |
| M25/4x1 | Driver seat lumbar support pneumatic pump electrical connector | 6H |
| M25/5 | Front passenger seat lumbar support pneumatic pump | 14L |
| M25/5x1 | Front passenger seat lumbar support pneumatic pump electrical connector |
14H |
| N32/1 | Driver seat control unit | 4L |
| N32/2 | Front passenger seat control unit | 12L |
| N32/23 | Driver seat lumbar support adjustment control unit | 5A |
| N32/24 | Front passenger seat lumbar support adjustment control unit | 13A |
| S109/2 | Driver seat lumbar support adjustment switch | 8L |
| S109/3 | Front passenger seat lumbar support adjustment switch | 15L |
| W10/7 | Left battery recess ground point | 4E |
| W10/8 | Right battery recess ground point | 11E |
| X55/15 | Driver seat electrical connector | 3G |
| X55/16 | Front passenger seat electrical connector | 11G |
| X55/3 | Driver seat connector block | 4G |
| X55/4 | Front passenger seat connector block | 12G |
| Z6/30z1 | Driver seat ground line connector sleeve | 12H |
| Z6/30z2 | Front passenger seat ground line connector sleeve | 5H |
| Z6/94z1 | Driver seat circuit 31 connector sleeve 1 | 5E |
| Z6/94z2 | Driver seat circuit 31 connector sleeve 2 | 12E |
