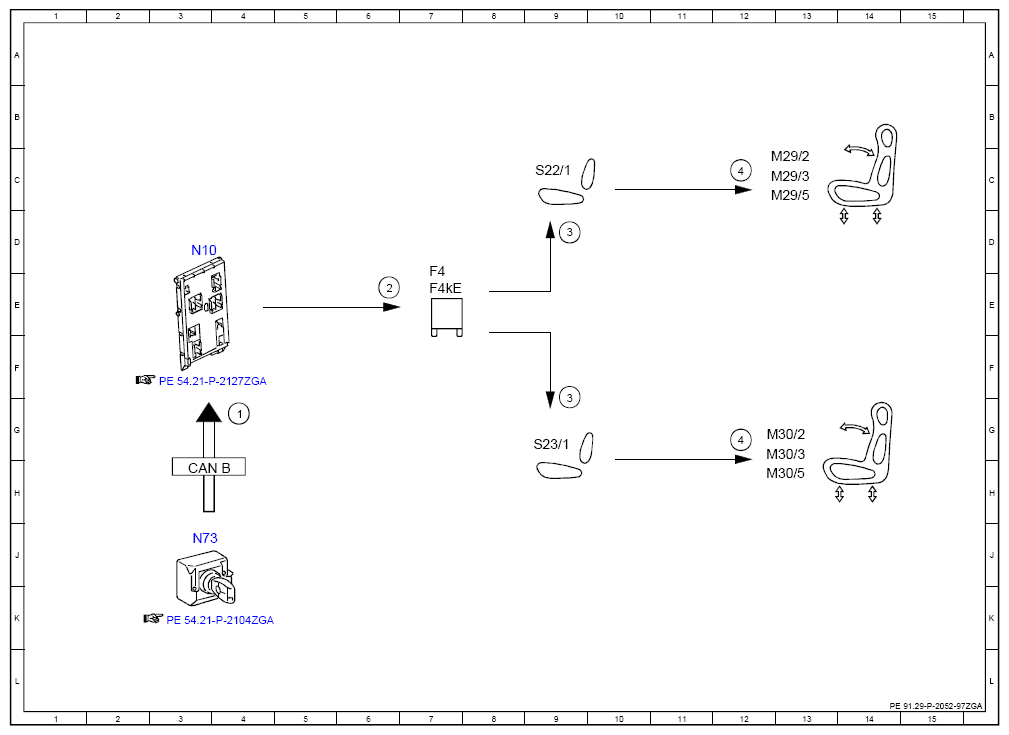

Electrical Function Schematic For Partially Electric Seat Adjustment (ESE) - PE91.29-P-2052-97ZGA
Model 463 (except 463.342) as of model year 2013 with code S52 (Left/right individual seats in rear with seat heater)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 4G |
| 2 | Circuit 15 relay, actuation | 6E |
| 3 | Power supply, status ON | 9G |
| 3 | Power supply, status ON | 9D |
| 4 | Seat adjustment motor, actuation | 12C |
| 4 | Seat adjustment motor, actuation | 12G |
| CAN B | Interior CAN | 3H |
| F4 | Rear fuse and relay module | 7E |
| F4kE | Circuit 15 relay | 7E |
| M29/2 | Left rear seat height adjustment motor | 13C |
| M29/3 | Left rear seat inclination adjustment motor | 13C |
| M29/5 | Left rear seat backrest inclination adjustment motor | 13C |
| M30/2 | Right rear seat height adjustment motor | 13G |
| M30/3 | Right rear seat inclination adjustment motor | 13G |
| M30/5 | Right rear seat backrest inclination adjustment motor | 13H |
| N10 | SAM control unit | 3D |
| N73 | Electronic ignition switch control unit | 3J |
| S22/1 | Left rear seat adjustment switch, center console | 9C |
| S23/1 | Right rear seat adjustment switch, center console | 9G |
