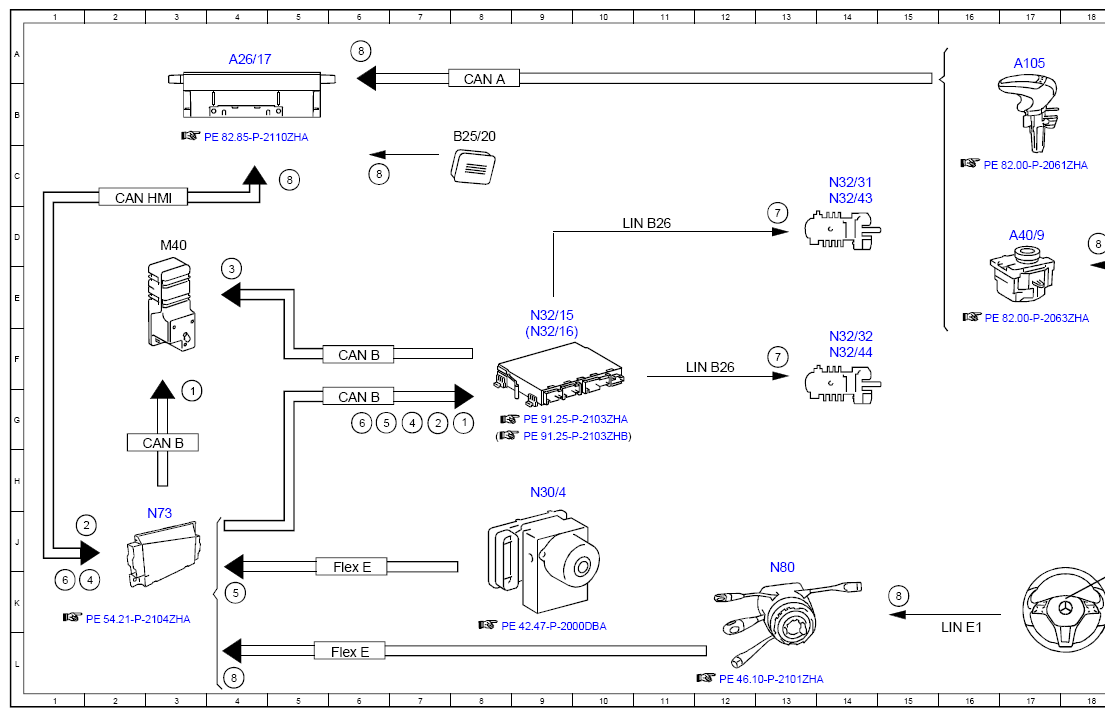

Electrical Function Schematic For Multicontour Seat - PE91.25-P-2051-97ZGB
Model 463 as of model year 2019 with code PA9 (Seat Comfort package Plus)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 3G |
| 1 | Circuit 15, status | 8G |
| 2 | Multicontour seat adjustment, request | 7G |
| 2 | Multicontour seat adjustment, request | 2J |
| 3 | Compressed air supply, request | 4E |
| 4 | Dynamic function ON/OFF, request | 2K |
| 4 | Dynamic function ON/OFF, request | 7G |
| 5 | Speed, turn rate and lateral acceleration, signal | 4K |
| 5 | Speed, turn rate and lateral acceleration, signal | 6G |
| 6 | Massage function ON, request | 1K |
| 6 | Massage function ON, request | 6G |
| 7 | Massage function control unit, actuation | 13D |
| 7 | Massage function control unit, actuation | 13F |
| 8 | Operation, signal | 5C |
| 8 | Operation, signal | 4M |
| 8 | Operation, signal | 6A |
| 8 | Operation, signal | 6C |
| 8 | Operation, signal | 18D |
| 8 | Operation, signal | 19K |
| 8 | Operation, signal | 15K |
| A105 | Touchpad | 17B |
| A26/17 | Head unit | 4A |
| A40/9 | Audio/COMAND control panel | 17D |
| B25/20 | Driver hands-free system microphone | 8C |
| CAN A | Telematics CAN | 8B |
| CAN B | Interior CAN | 6G |
| CAN B | Interior CAN | 3H |
| CAN B | Interior CAN | 6F |
| CAN HMI | User interface CAN | 2D |
| Flex E | Chassis FlexRay | 6K |
| Flex E | Chassis FlexRay | 6L |
| LIN A3 | LCP LIN | 19E |
| LIN B26 | Massage components LIN | 11D |
| LIN B26 | Massage components LIN | 12G |
| LIN E1 | Steering LIN | 16L |
| M40 | Multicontour seat pneumatic pump | 3E |
| N135 | Steering wheel electronics | 19K |
| N30/4 | Electronic Stability Program control unit | 9J |
| N32/15 | Left front multicontour seat control unit | 9F |
| N32/16 | Right front multicontour seat control unit | 9F |
| N32/31 | Left front backrest massage function control unit | 14C |
| N32/32 | Right front backrest massage function control unit | 14F |
| N32/43 | Left front seat cushion massage function control unit | 14D |
| N32/44 | Right front seat cushion massage function control unit | 14F |
| N72/1 | Upper control panel control unit | 22D |
| N72/1s58 | Vehicle button | 23D |
| N73 | Electronic ignition switch control unit | 3J |
| N80 | Steering column module control unit | 13K |
| S163/2s10 | Head unit finger navigation pad | 24K |
| S163/2s13 | "Back" button | 24K |
