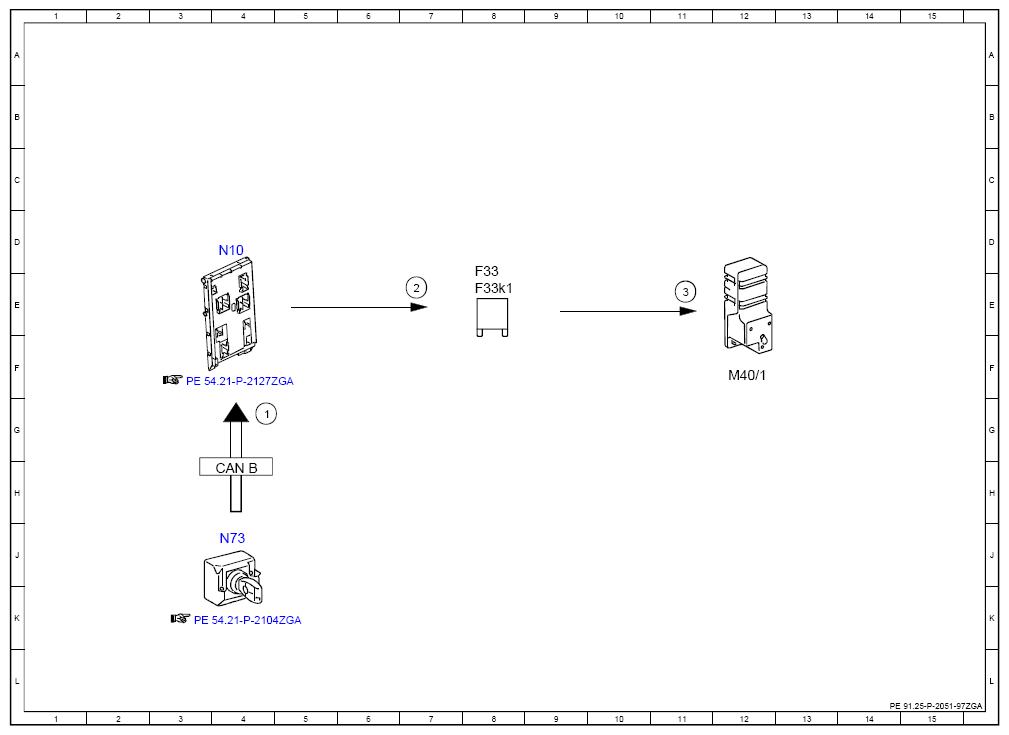

Electrical Function Schematic For Multicontour Seat - PE91.25-P-2051-97ZGA
Model 463 as of model year 2013 up to model year 2016 with code S52 (Left/right individual seats in rear with seat heater)
Model 463 as of model year 2013 up to model year 2019 with code PA1 (Seat comfort package)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 4G |
| 2 | Circuit 30g relay, actuation | 7E |
| 3 | Multicontour seat pneumatic pump, actuation | 11E |
| CAN B | Interior CAN | 4H |
| F33 | Battery compartment prefuse box | 8E |
| F33k1 | Circuit 30g relay | 8E |
| M40/1 | Multicontour seat pneumatic pump | 12F |
| N10 | SAM control unit | 4D |
| N73 | EIS [EZS] control unit | 4J |
