Check Seat Belts And Buckles For External Damage And Correct Operation - AP91.40-P-9150GI

Model 460, 461

Model 463

up to model year 2019

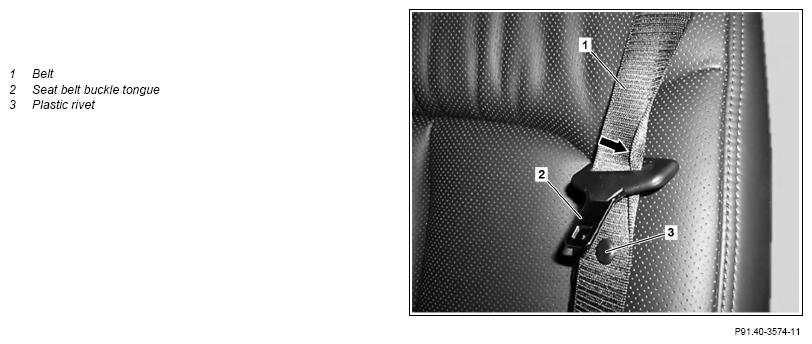

Shown: Model 240

Courtesy of MERCEDES-BENZ USA

	Check
1	Pull belt (1) all the way out and check for any signs of damage	The seat belt and/or seat belt buckle must be replaced if damaged, not functioning correctly or defective. If the customer rejects replacement of a damaged seat belt or seat belt buckle, a corresponding remark should be made on the repair order. If complaint present ↓ Rectify problem subject to separate repair order.
2	Inspect seat belt (1) for twisting	If complaint present ↓ Rectify problem subject to separate repair order.
3	Check blocking function of seat belt retractor by pulling out the belt (1) abruptly	With seat belts with inertia reel. If complaint present ↓ Rectify problem subject to separate repair order.
4	Check belt buckle for damage and correct latching of belt tab (2)	If complaint present ↓ Rectify problem subject to separate repair order.
5	Check plastic rivet (3) for damage and correct seat	If complaint present ↓ Replace subject to separate repair order.
