Removing Rear Head Restraint - AR91.16-P-1770XG

Model 463

as of model year 2019

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Remove/install
1	Fold seat backrest forward.

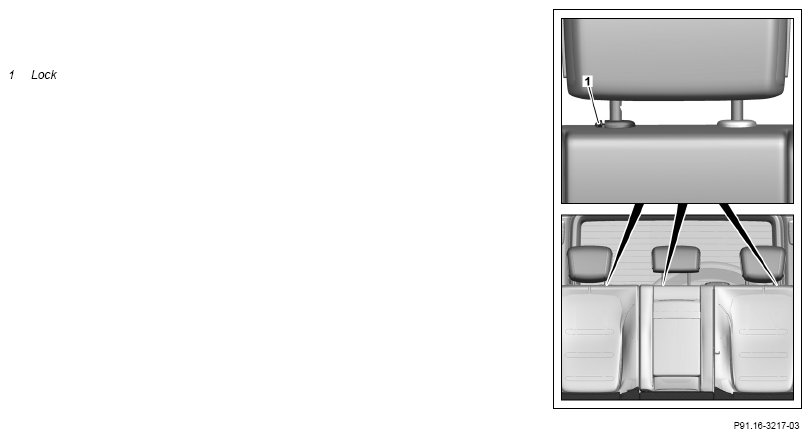

2	Press and hold lock (1).
3	Move head restraint upward on brackets.	Carefully extend head restraint upward. Otherwise the roof lining could become damaged. The head restraint must audibly engage. Observe installation position of the center head restraint.
4	Install in reverse order.
