Removing And Installing Rear Seat - AR91.12-P-1000XG

Model 463

as of model year 2019

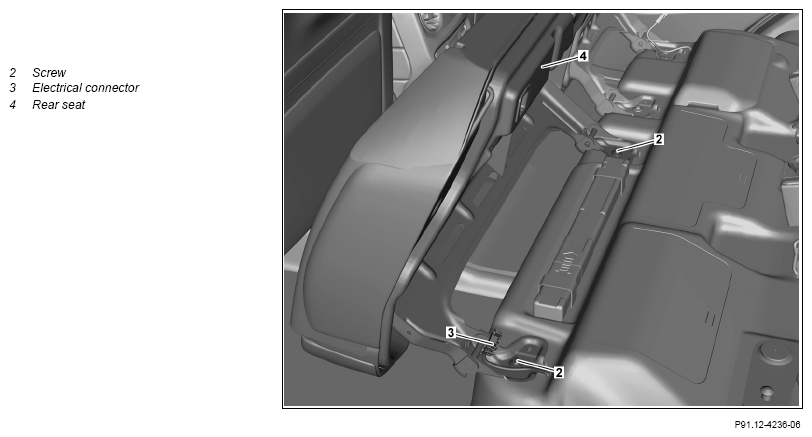

Shown on 40% rear seat

Fig 1: Rear Seat Components Location - Model 463 As Of Model Year 2019 (Shown On 40% Rear Seat)

Courtesy of MERCEDES-BENZ USA

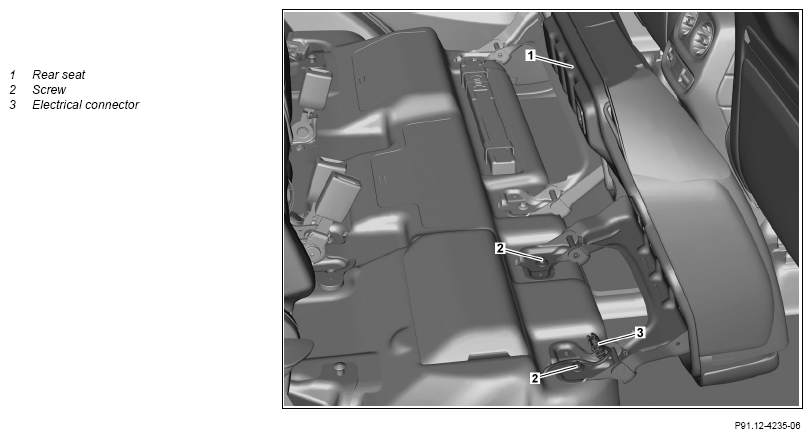

Shown on 60% rear seat

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Remove/install
1	Disconnect ground line from battery.		AR54.10-P-0003XG
2	Fold rear seats (1, 4) forward.
3	Remove covers on vehicle floor.
4	Disconnect electrical connectors (3).	Ensure that electrical line is routed correctly.
5	Unscrew bolts (2).	Bolt, rear seat to body	*BA91.12-P-1004-03J
6	Remove rear seats (1, 4).
7	Install in reverse order.
