Remove/Install Rear Seat Backrest - AR91.12-P-1620XG
Model 463
as of model year 2019

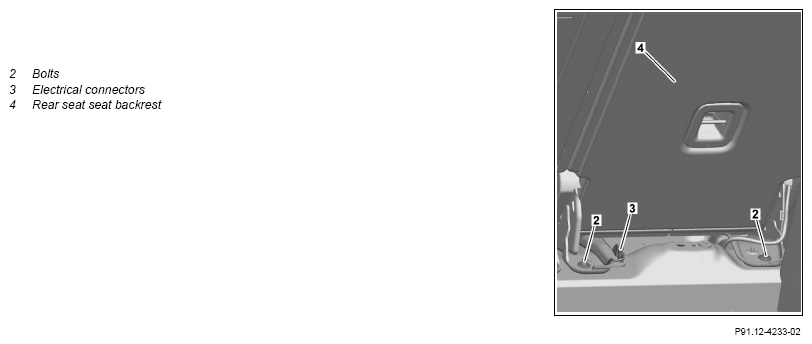

Shown on 60% rear seat
Fig 1: Rear Seat Backrest Components Location - Model 463 As Of Model Year 2019 (Shown On 60% Rear Seat)

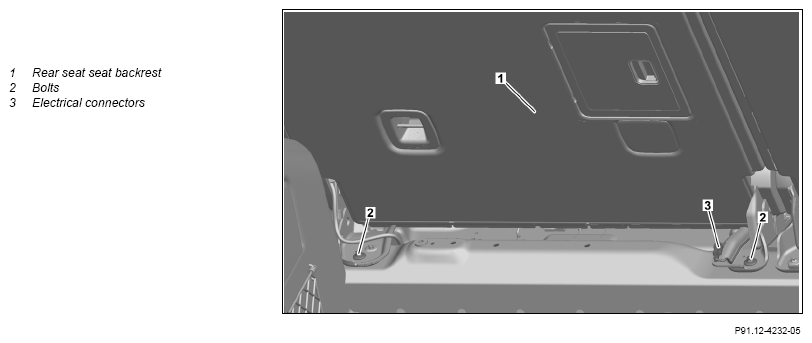

Shown on 60% rear seat

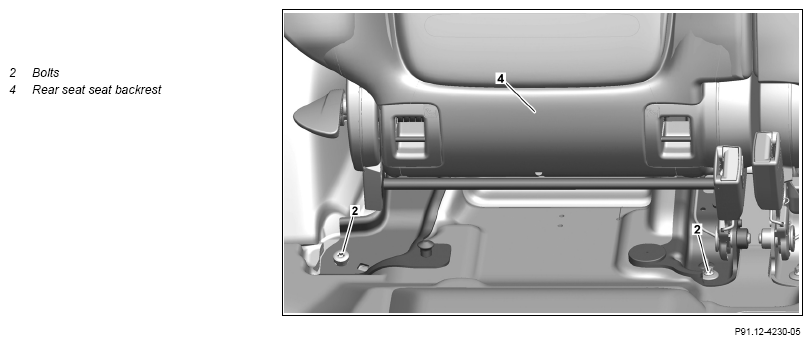

Shown on 40% rear seat

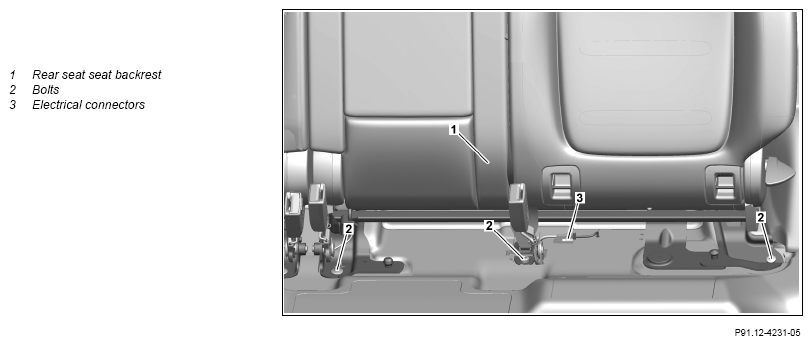

Shown on 40% rear seat
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on performing repair, body work and welding on vehicles with airbags and RTE units | AH91.00-P-0002-01M | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Assessment of airbag and belt tensioner units in accident vehicles | AH91.00-P-0006-01B | ||
| Remove/install | |||
| 1 | Disconnect ground line from battery. | AR54.10-P-0003XG | |
| 2 | Fold up seat cushion. | ||
| 3 | Disconnect electrical connector (3) under seat cushion. | ||
| 4 | Remove screws (2) under seat cushion. | *BA91.12-P-1005-03J | |

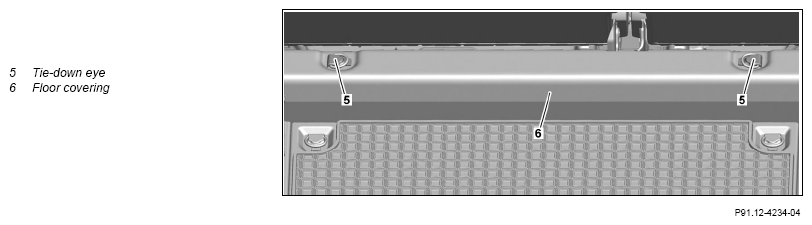

| 5 | Remove tie-down eyes (5) in trunk. | ||
| 6 | Fold floor covering (6) toward rear. | ||
| 7 | Disconnect electrical connectors (3) in trunk. | ||
| 8 | Remove screws (2) in trunk. | *BA91.12-P-1005-03J | |
| 9 | Remove rear seat seat backrests (1, 4). | ||
| 10 | Install in reverse order. |
REAR SEATS
| Number | Designation | Model 463 up to model year 2019 | Model 463 as of model year 2019 | ||
|---|---|---|---|---|---|
| BA91.12-P-1005-03J | Bolt, backrest to body | M7/16x36 | Nm | - | 35 |
| M10 | Nm | - | 50 | ||
