Remove/Install Head Restraint On Front Seat - AR91.16-P-0040XG

Model 463

as of model year 2019

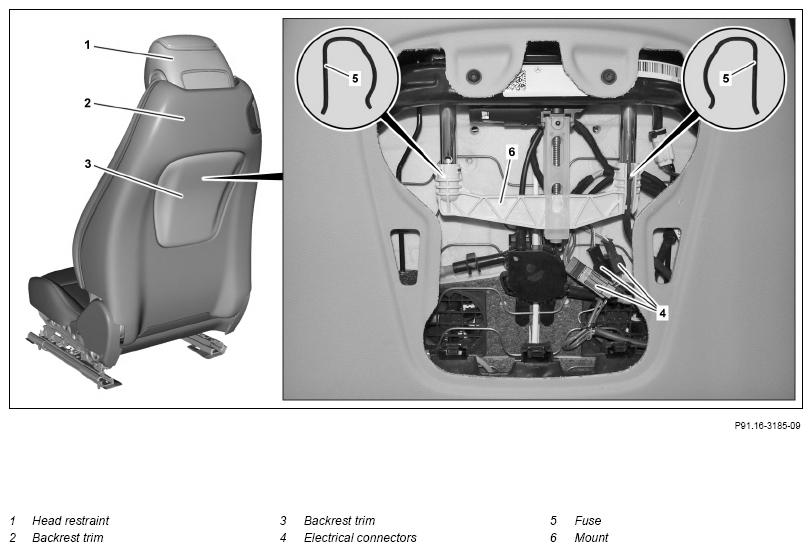

Fig 1: Head Restraint On Front Seat Components Location - Model 463 As Of Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove seat backrest trim (2) on front seat.		AR91.10-P-1912XG
2	Disconnect electrical connectors (4).
3	Remove locking clips (5).
4	Adjust seat backrest toward rear and remove head restraint (1).
5	Guide head restraint (1) out of mount (6).
6	Pull head restraint (1) out of head restraint guides and remove.
7	Install in reverse order.
