Remove/Install Head Restraint On Front Seat - AR91.16-P-0040GW
Model 463 (except 463.242)
as of model year 2013 up to model year 2019
/FACELIFT 2012

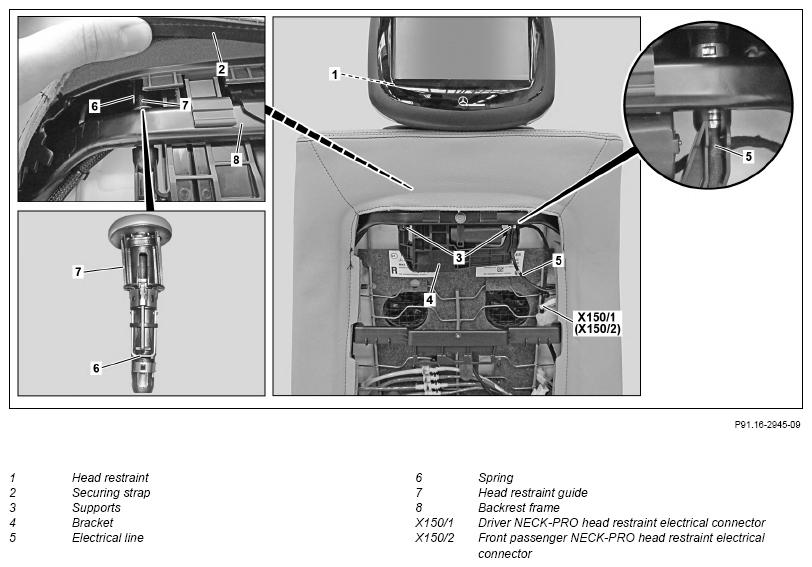

Fig 1: Head Restraint On Front Seat Components Location - Model 463 (Except 463.242) As Of Model Year 2013 Up To Model Year 2019 /Facelift 2012
| Remove/install | |||
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| 1 | Remove seat-back lining from front seat backrest | Model 463 (except 463.242) as of model year 2013 up to model year 2019/FACELIFT 2012 |
AR91.10-P-1910GW |
| 2 | Adjust front seat backrest toward rear until head restraint (1) can be removed from front seat backrest | ||
| 3 | Detach ground line from battery | Model 463 (except 463.234/236/241/242/248) as of model year 2013 up to model year 2019 | AR54.10-P-0003GW |
| Notes on battery | AH54.10-P-0001-01A | ||
| 4 | Disconnect driver NECK-PRO head restraint electrical connector (X150/1) or front passenger NECK-PRO head restraint electrical connector (X150/2) | ||
| 5 | Unclip head restraint (1) from left and right mount (3) of bracket (4) | ||
| 6 | Route electrical line (5) of head restraint (1) through right mount (3) | ||
| 7 | Unhook securing strap (2) of cover from backrest frame (8) and pull cover upwards until spring (6) of head restraint guide (7) is accessible | ||
| 8 | Lift spring (6) of left head restraint guide (7), pull out head restraint (1) and route electrical line (5) through the right head restraint guide (7) | ||
| 9 | Remove head restraint (1) | ||
| 10 | Install in the reverse order |
