(Remove/Install Front Seat Cushion Cover - AR91.18-P-1800A)
Model 463.### ## up to 105043
up to model year 2000
| Remove/install | |||
| 1 | Remove front seat backrest | Remove/install front seat backrest Model 463.200/204/206/207/208/209/220/221/224/225/227/228/230/231/232/233/240/241/300/304/307/308/320/321/324/325/327/328/330/331 ## up to 105043 up to model year 2000 with code H10 (Seat heaters for driver and front passenger) with code SK2 (Left electrically adjustable front seat with orthopedic backrest) with code SK3 (Right electrically adjustable front seat with orthopedic backrest) |
AR91.10-P-1060GA |

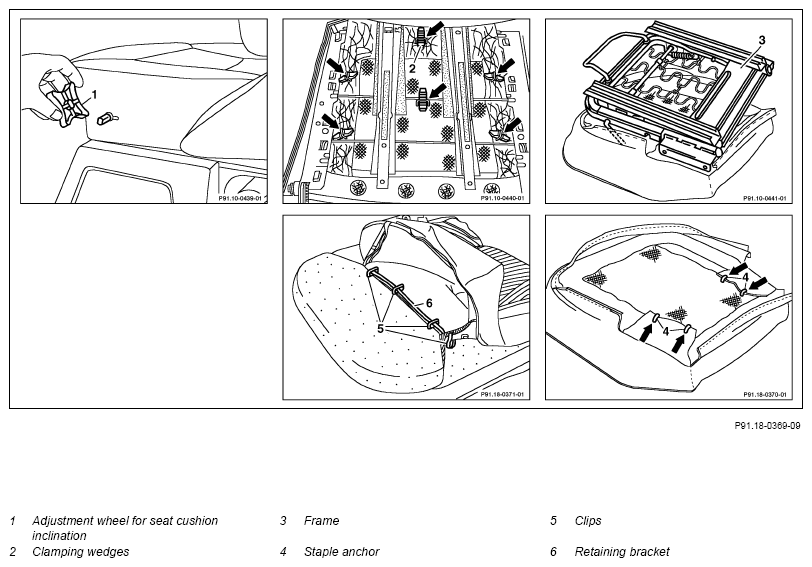

| 2 | Press off adjustment wheel for seat cushion inclination (1) | ||
| 3 | Unhook seat cover from frame and remove clamping wedges (2) | ||
| 4 | Remove frame (3) | ||
| 5 | Remove staple anchor (4) from cover and seat cushion | ||
| 6 | Detach seat cover from seat cushion | ||
| 7 | Unclip clamps (5) under seat cover from retaining brackets | ||
| 8 | Remove left and right retaining brackets (6) from cover | ||
| 9 | Install in the reverse order |
