Remove/Install Airbag Unit On Steering Wheel - AR91.60-P-0660GW
Model 463
as of model year 2013 up to model year 2019

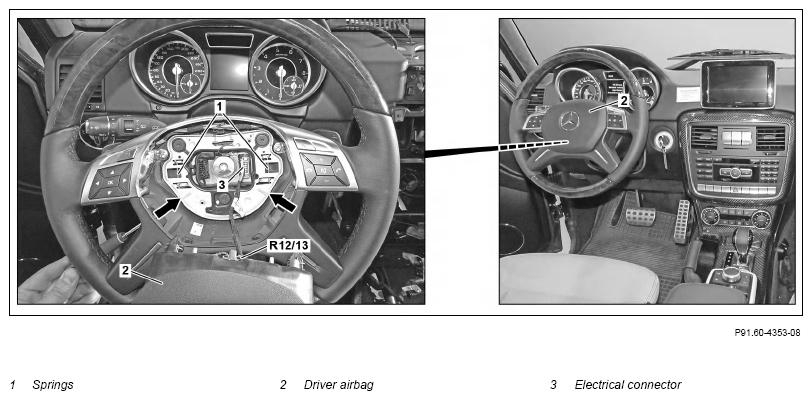

Fig 1: Airbag Unit On Steering Wheel Components Location - Model 463 As Of Model Year 2013 Up To Model Year 2019
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Fully extend steering wheel | ||
| 2 | Detach ground line from battery | Model 463 (except 463.234/236/241/242/248) as of model year 2013 up to model year 2019 | AR54.10-P-0003GW |
| Model 463.236/248 as of model year 2013 up to model year 2015 with code 979 (Special protection MB Guard) with code E26 (Auxiliary battery) with code ZS6 (Special protection version FB6) Model 463.236/248 as of model year 2013 up to model year 2015 with code 979 (Special protection MB Guard) with code E26 (Auxiliary battery) with code ZS7 (Special protection version FB7) Model 463.242 as of model year 2013 up to model year 2015 with code E26 (Auxiliary battery) |
AR54.10-P-0003PM | ||
| 3 | Use suitable tool to push springs (1) inwards | Otherwise, the airbag may work loose from the steering wheel. |
|
| 4 | Lift driver airbag (2) off steering wheel | ||
| 5 | Release and disconnect electrical connection (3) | ||
| 6 | Remove driver airbag (2) | ||
| 7 | Install in the reverse order | ||
| Check | |||
| 8 | Check and erase vehicle fault memory using the diagnostic vehicle diagnosis system | When replacing the driver airbag (2). | |
| Model 463 as of model year 2013 up to model year 2019 | AD00.00-P-2000-04A |
