Supplemental Restraint System Function - GF91.60-P-0003GWM
Model 463 (except 463.342)
as of model year 2019
Function requirements, general
- The Supplemental Restraint System must be programmed to the vehicle (left or right-hand drive vehicle, equipment programming 1 and configuration parameters)
- Circuit 15R ON
The electronic ignition lock control unit sends the circuit 15 status via the user interface CAN to the Supplemental Restraint System control unit.
After circuit 15R is switched off, parts of the Supplemental Restraint System remain active for a certain run-on time.
Power reserve: The supplemental restraint system control unit provides a power reserve for at least t = 300 ms if the battery has been disconnected.

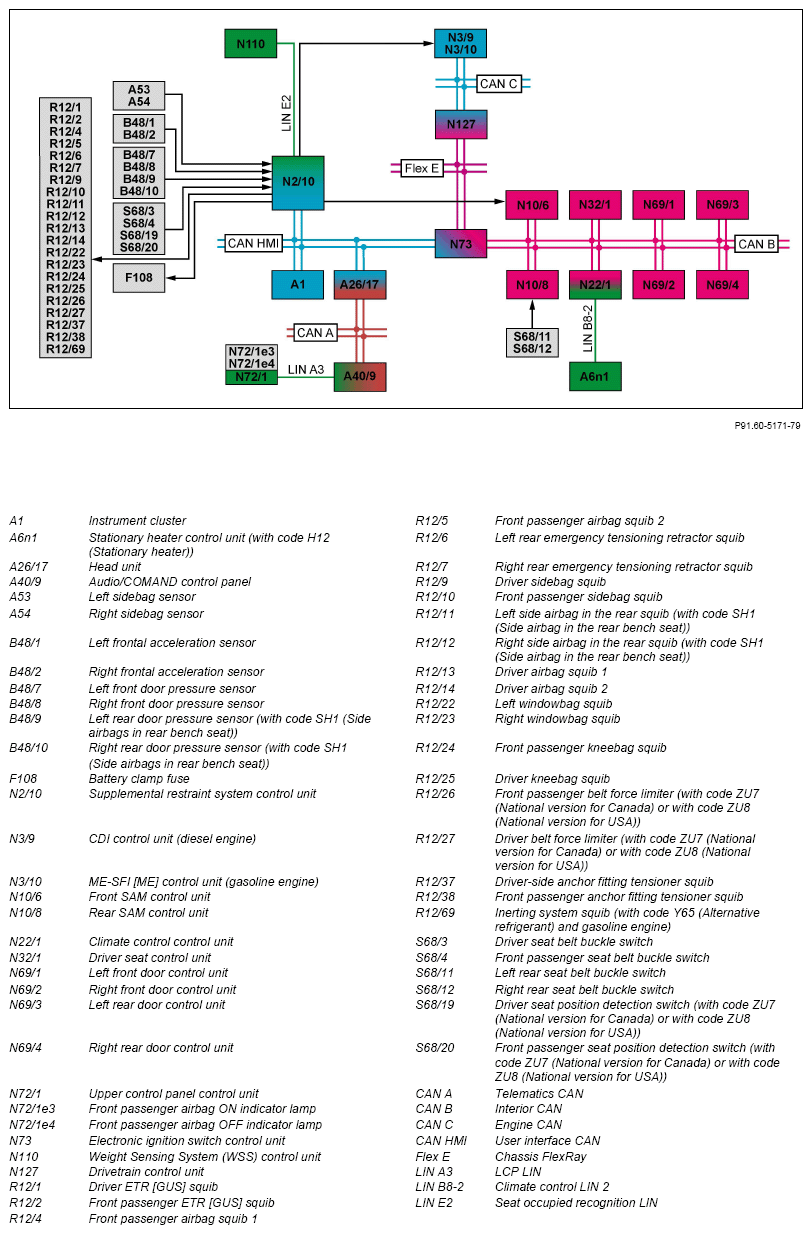

Supplemental restraint system, general information
The Supplemental Restraint System is used for occupant protection.
The belt is prevented from extending in certain situations, irrespective of the status of the Supplemental Restraint System. The following subfunctions are described in separate documents:
- Passenger-side seat occupied recognition function
- Supplemental restraint system deployment function
| Passenger-side seat occupied recognition function | GF91.60-P-1100GWM | ||
| Actuate supplemental restraint system, function | GF91.60-P-2012GWM |
