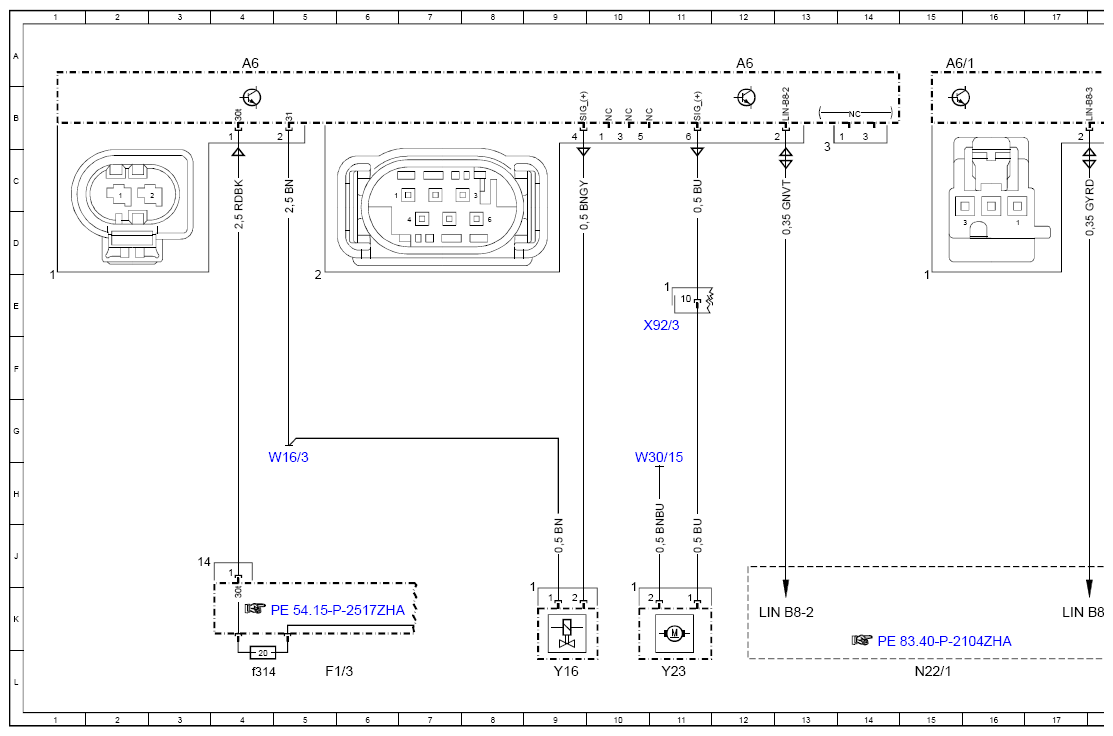

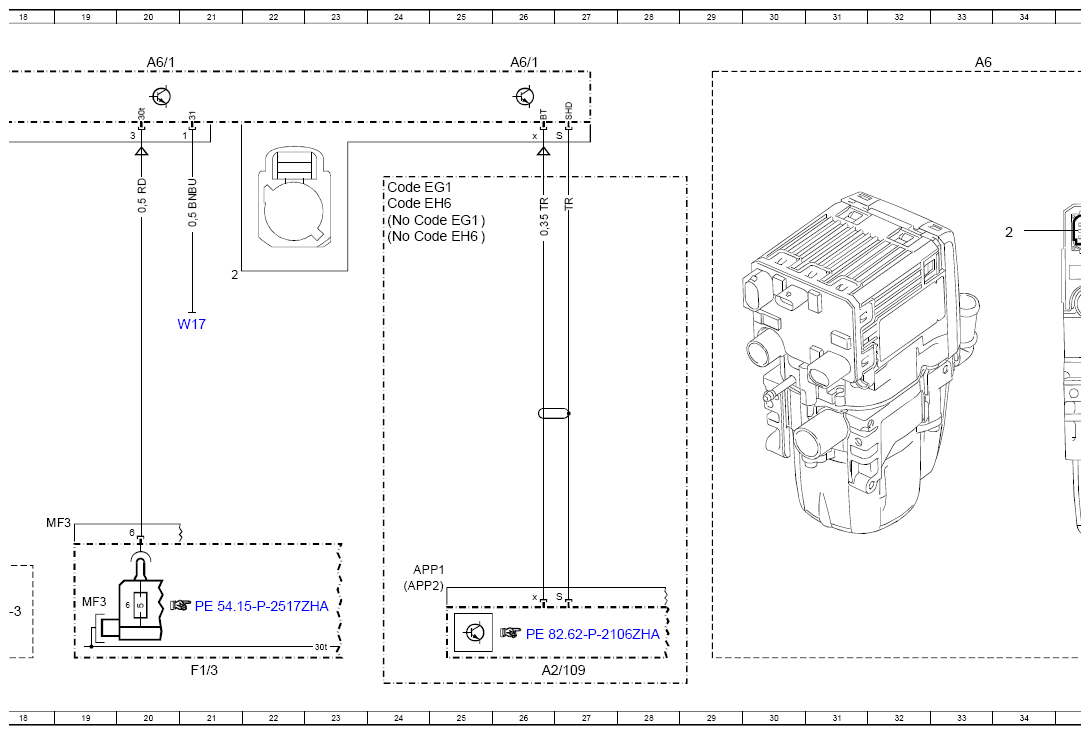

Wiring Diagram For Stationary Heater Control Unit - PE83.70-P-2104-97ZHA
Model 463 (except 463.342) as of model year 2019 with code H12 (Auxiliary heater) Heater unitA6
| Code: | Designation: | Position: |
|---|---|---|

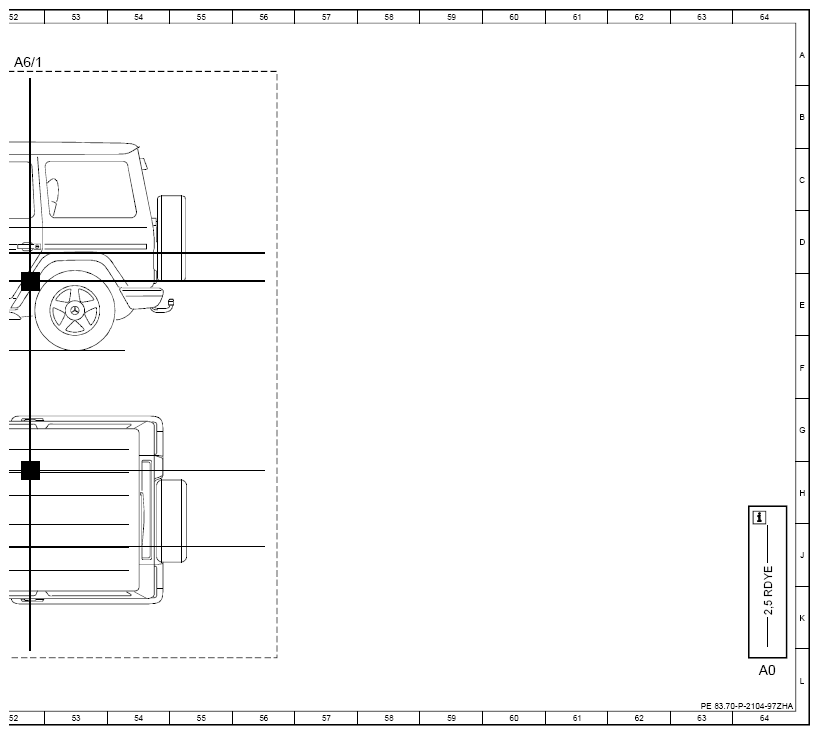

| A0 | Use of wiring diagrams | 64L |
| A2/109 | Telephone antenna splitter | 26L |
| A6 | Stationary heater unit | 4A |
| A6 | Stationary heater unit | 12A |
| A6 | Stationary heater unit | 33A |
| A6 | Stationary heater unit | 48A |

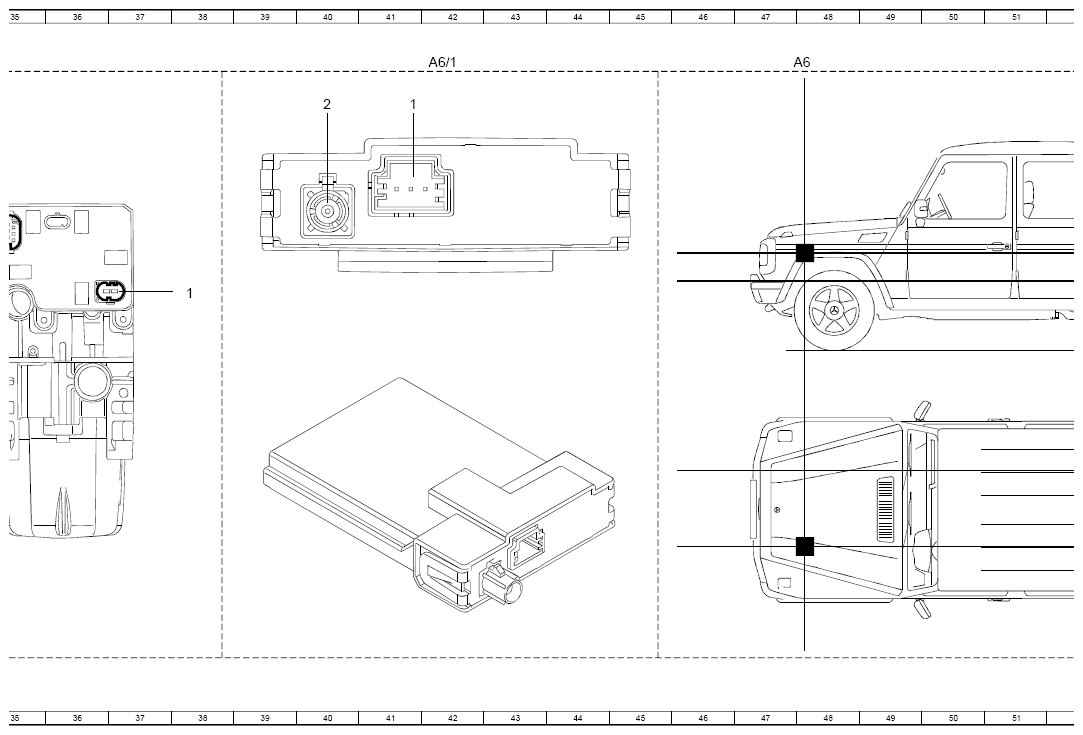

| A6/1 | Stationary heater radio remote control receiver | 15A |
| A6/1 | Stationary heater radio remote control receiver | 20A |
| A6/1 | Stationary heater radio remote control receiver | 26A |
| A6/1 | Stationary heater radio remote control receiver | 42A |
| A6/1 | Stationary heater radio remote control receiver | 52A |
| Code EG1 | Car telephony | 24D |
| Code EG1 | Car telephony | 24C |
| Code EH6 | Multifunction telephony | 24D |
| Code EH6 | Multifunction telephony | 24C |
| F1/3 | Right A-pillar fuse box | 5L |
| F1/3 | Right A-pillar fuse box | 21L |
| F1/3MF3 | Multiple fuse 3 | 19K |
| F1/3f314 | Fuse 314 | 4L |
| LIN B8-2 | Climate control LIN 2 | 12K |
| LIN B8-3 | AC operation LIN | 17K |
| N22/1 | Climate control, control unit | 15L |
| W16/3 | Left major assembly compartment ground point | 5H |
| W17 | Right rear seat ground point | 21E |
| W30/15 | Left front frame ground point | 10H |
| X92/3 | Vehicle frame electrical connector | 11E |
| Y16 | Stationary heater switchover valve | 9L |
| Y23 | Stationary heater fuel pump | 11L |
