Remove/Install Air Duct Below Center Console - AR83.10-P-0020GW
Model 463.202/234/237/239/272/273/274/275/342/346/348
as of model year 2013 up to model year 2019

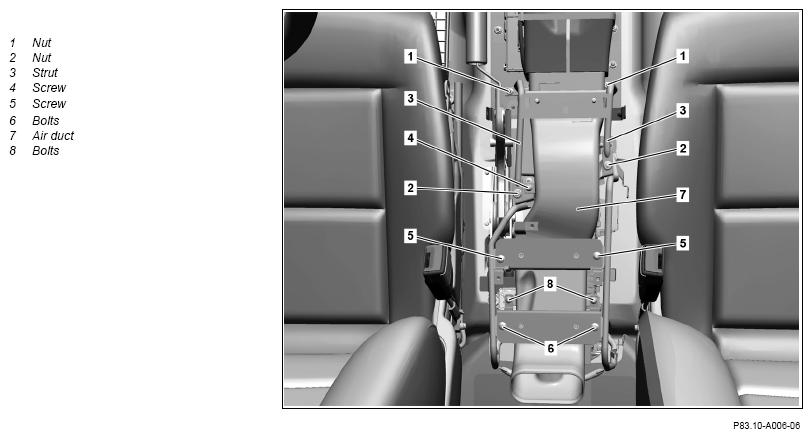

Fig 1: Air Duct Below Center Console Components Location - Model 463.239 As Of Model Year 2013 Up To Model Year 2019
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove/install | |||
| 1 | Remove center console. | AR68.20-P-2000GW | |
| 2 | Remove tunnel trim. | ||
| 3 | Remove nuts (1, 2) and remove struts (3). | *BA68.20-P-1001-01G | |
| 4 | Unscrew bolt (4). | ||
| 5 | Unscrew bolts (5) and remove holder. | ||
| 6 | Remove screw/bolts (6). | ||
| 7 | Pull air duct (7) towards rear and remove. | ||
| 8 | Unscrew bolts (8) and remove holder. | If air duct (7) is replaced. | |
| 9 | Install in the reverse order. |
CENTER CONSOLE
| Number | Designation | Model 463 | |
|---|---|---|---|
| BA68.20-P-1001-01G | Nut, holder for center console to body | Nm | 7 |
