Remove And Install Bracket At AC Housing - AR83.30-P-5200-01GW
Model 463
as of model year 2013 up to model year 2019

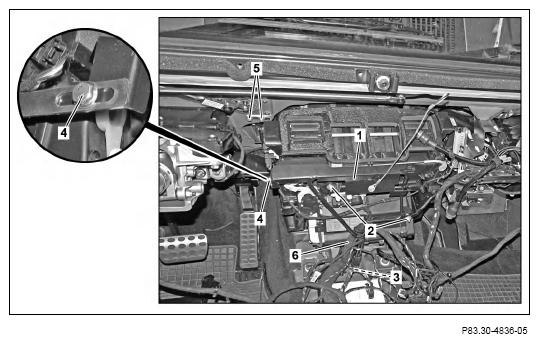

- Release electrical wiring harness (6) from holder (1).
- Unscrew nuts (2).
- Remove bolt (3).
- Remove bolts (5).
Do not loosen nut (4) at elongated hole because otherwise the air conditioner housing seal at the firewall can no longer be guaranteed and whistling sounds may be generated after installation.
- Take out holder (1).

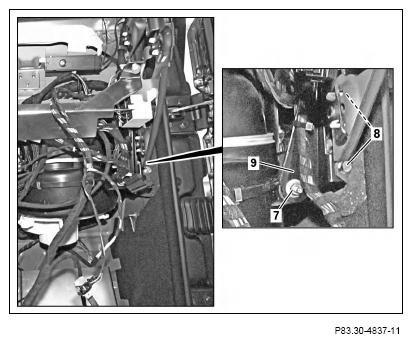

- Unscrew nut (7).
- Remove screws (8).
- Remove holder (9).
- Install in the reverse order.
