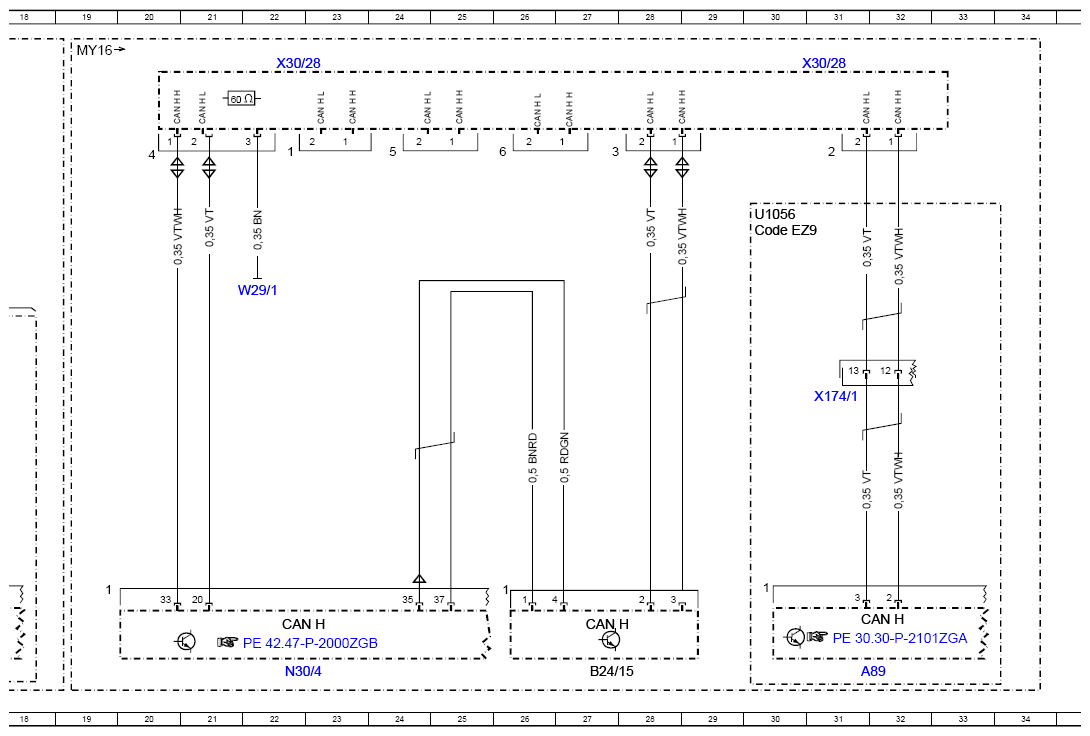

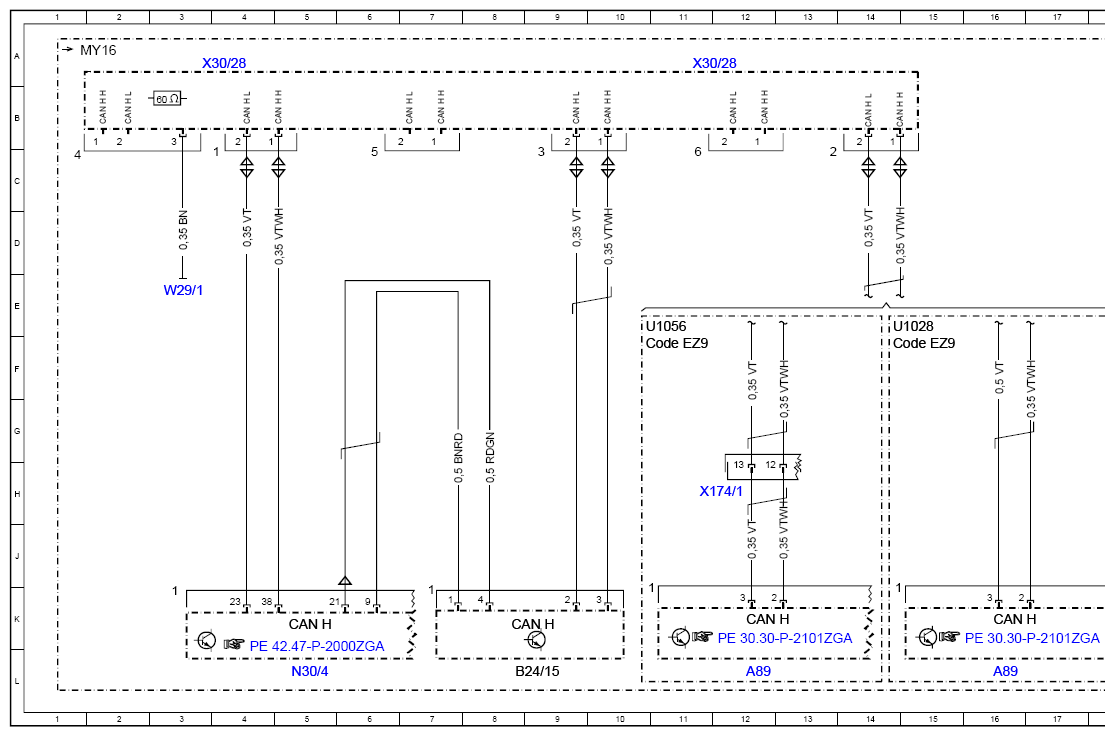

Wiring Diagram Of Vehicle Dynamics CAN - PE00.19-P-2190-97ZGA
Model 463
as of model year 2013 up to model year 2019
/YoM 12 model refinement package up to YoM 18 model refinement package, potential distributor X30/28 vehicle dynamics CAN (CAN H)
| Code: | Designation: | Position: |
|---|---|---|

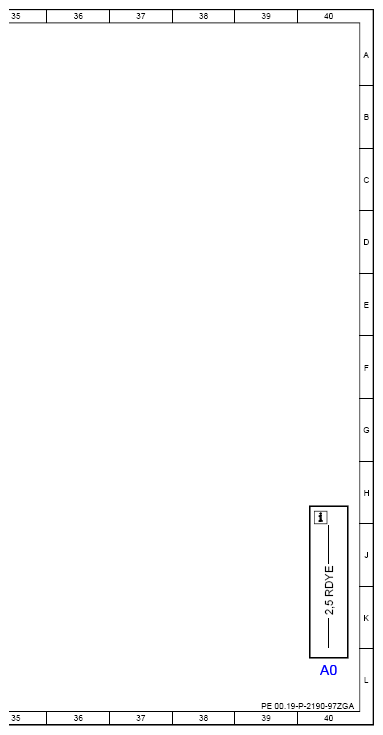

| A0 | Color code key | 40L |
| A89 | DISTRONIC electric controller unit | 12L |
| A89 | DISTRONIC electric controller unit | 16L |
| A89 | DISTRONIC electric controller unit | 31L |
| B24/15 | Yaw rate, lateral and longitudinal acceleration sensor | 9L |
| B24/15 | Yaw rate, lateral and longitudinal acceleration sensor | 27L |
| CAN H | Vehicle dynamics CAN | 8K |
| CAN H | Vehicle dynamics CAN | 5K |
| CAN H | Vehicle dynamics CAN | 12K |
| CAN H | Vehicle dynamics CAN | 16K |
| CAN H | Vehicle dynamics CAN | 27K |
| CAN H | Vehicle dynamics CAN | 22K |
| CAN H | Vehicle dynamics CAN | 32K |
| Code EZ9 | Distronic | 10F |
| Code EZ9 | Distronic | 14F |
| Code EZ9 | Distronic | 30D |
| N30/4 | ESP control unit | 5L |
| N30/4 | ESP control unit | 22L |
| U1028 | Valid for engine 157 | 14E |
| U1056 | Not valid for M 157 | 10E |
| U1056 | Not valid for M 157 | 30D |
| W29/1 | A-pillar ground connection, left | 3E |
| W29/1 | A-pillar ground connection, left | 22E |
| X174/1 | Vehicle interior/front bumper electrical connector | 12H |
| X174/1 | Vehicle interior/front bumper electrical connector | 31G |
| X30/28 | Vehicle dynamics CAN (CAN H) potential distributor electrical connector | 4A |
| X30/28 | Vehicle dynamics CAN (CAN H) potential distributor electrical connector | 11A |
| X30/28 | Vehicle dynamics CAN (CAN H) potential distributor electrical connector | 22A |
| X30/28 | Vehicle dynamics CAN (CAN H) potential distributor electrical connector | 31A |
