Wiring Diagram Of Telematics CAN - PE00.19-P-2180-97ZGA
Model 463
as of model year 2013 up to model year 2019

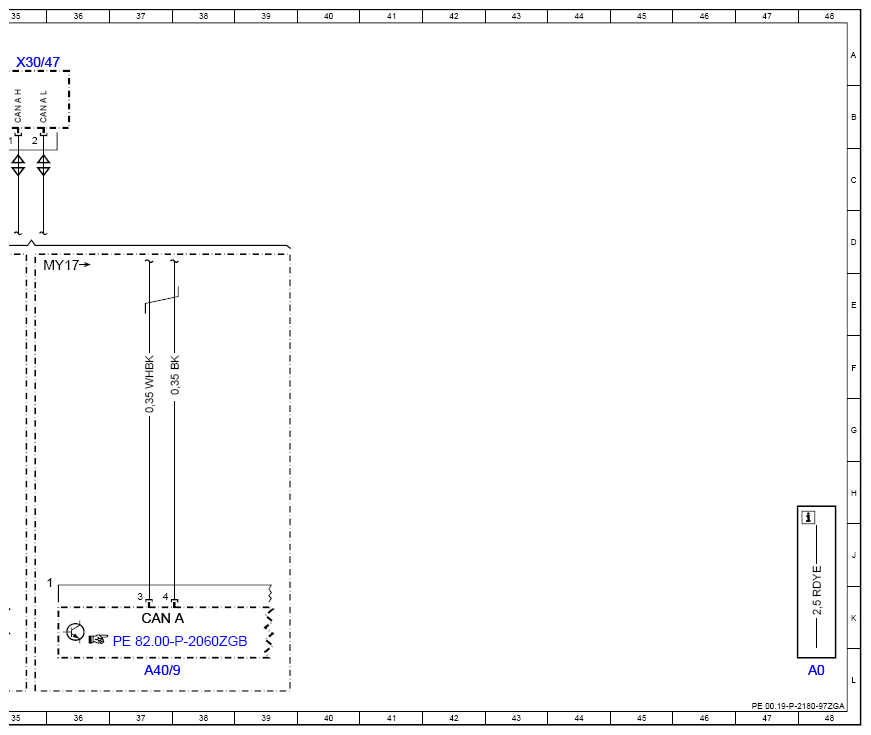

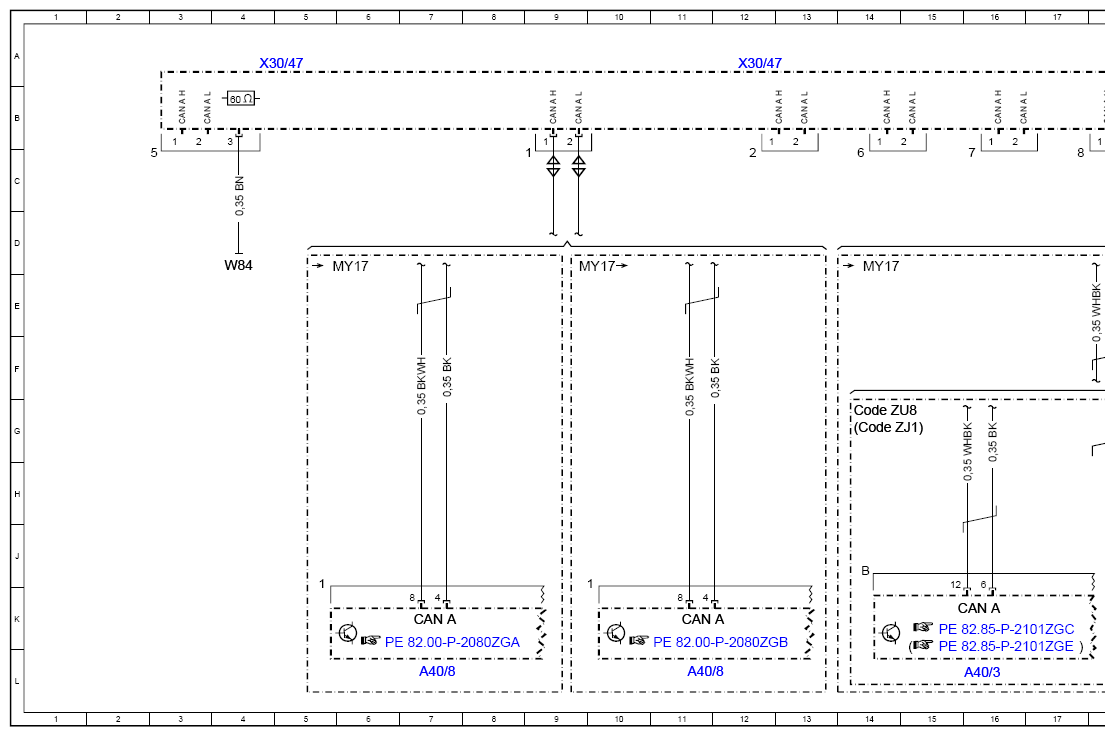

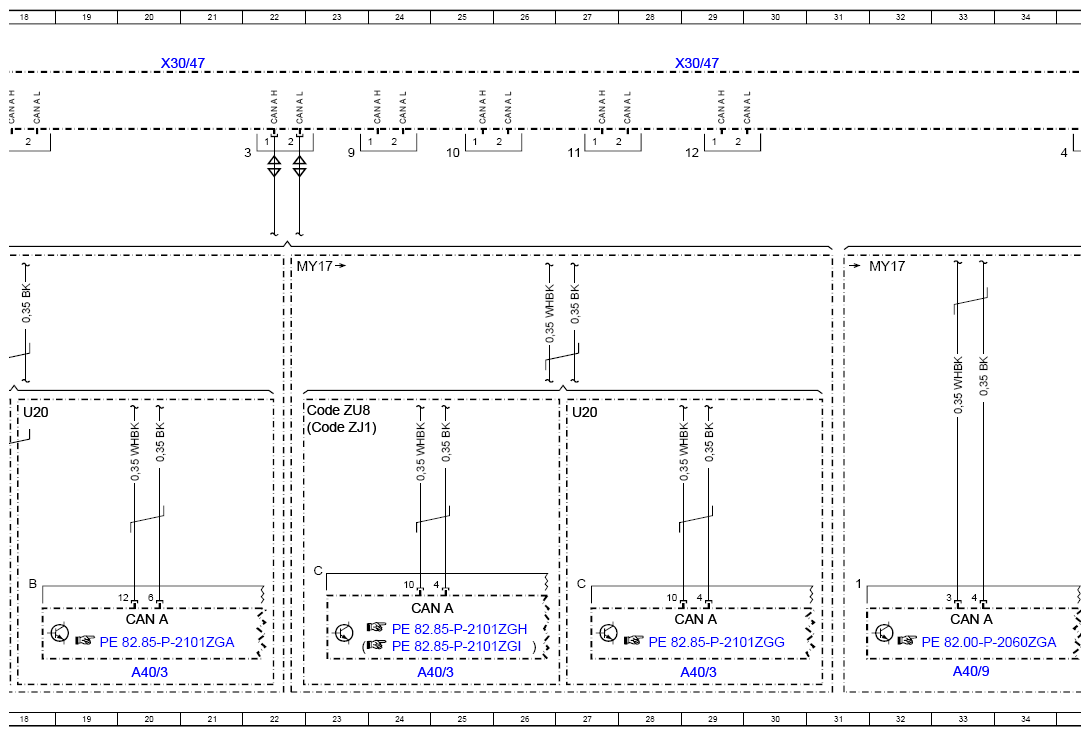

/YoM 12 facelift up to YoM 18 facelift, potential distributor X30/47 telematics CAN (CAN A)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 48L |
| A40/3 | COMAND control unit | 16L |
| A40/3 | COMAND control unit | 20L |
| A40/3 | COMAND control unit | 24L |
| A40/3 | COMAND control unit | 29L |
| A40/8 | Audio/COMAND display | 11L |
| A40/8 | Audio/COMAND display | 7L |
| A40/9 | Audio/COMAND control panel | 33L |
| A40/9 | Audio/COMAND control panel | 37L |
| CAN A | Telematics CAN | 33K |
| CAN A | Telematics CAN | 11K |
| CAN A | Telematics CAN | 20K |
| CAN A | Telematics CAN | 16K |
| CAN A | Telematics CAN | 29K |
| CAN A | Telematics CAN | 24K |
| CAN A | Telematics CAN | 7K |
| CAN A | Telematics CAN | 37K |
| Code ZJ1 | Japan version | 14G |
| Code ZJ1 | Japan version | 23G |
| Code ZU8 | USA version | 14G |
| Code ZU8 | USA version | 23G |
| U20 | Valid for all (except USA and Japan) | 18G |
| U20 | Valid for all (except USA and Japan) | 27G |
| W84 | Controller Area Network (CAN) ground point | 4D |
| X30/47 | Telematics CAN (CAN A) potential distributor electrical connector | 4A |
| X30/47 | Telematics CAN (CAN A) potential distributor electrical connector | 12A |
| X30/47 | Telematics CAN (CAN A) potential distributor electrical connector | 20A |
| X30/47 | Telematics CAN (CAN A) potential distributor electrical connector | 29A |
| X30/47 | Telematics CAN (CAN A) potential distributor electrical connector | 35A |
