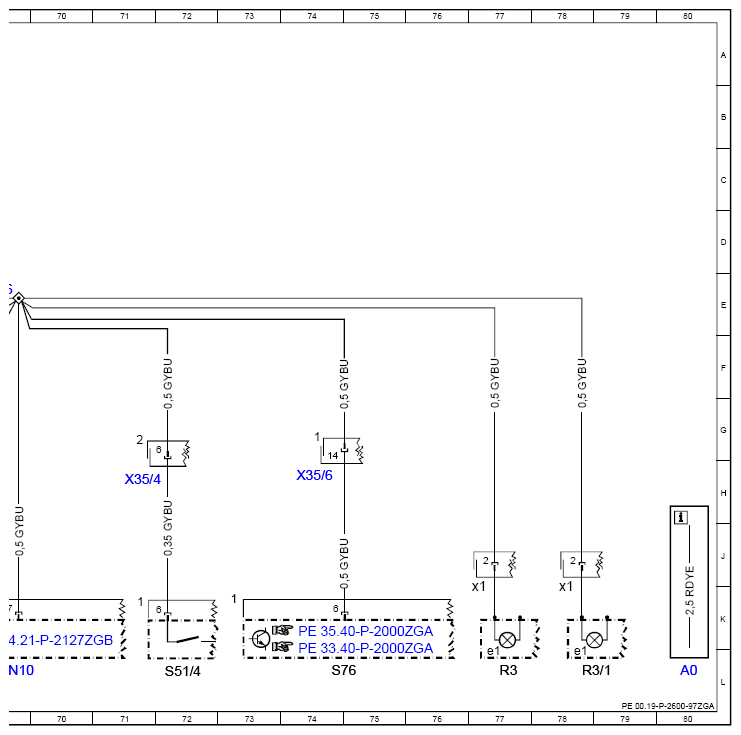

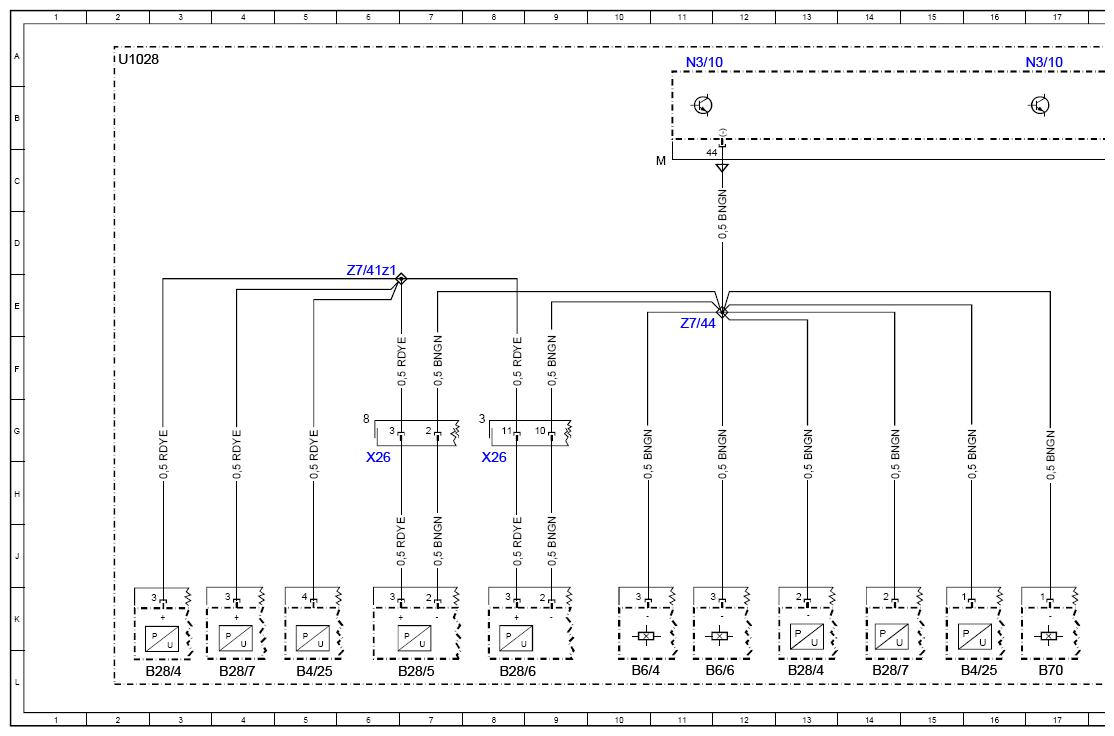

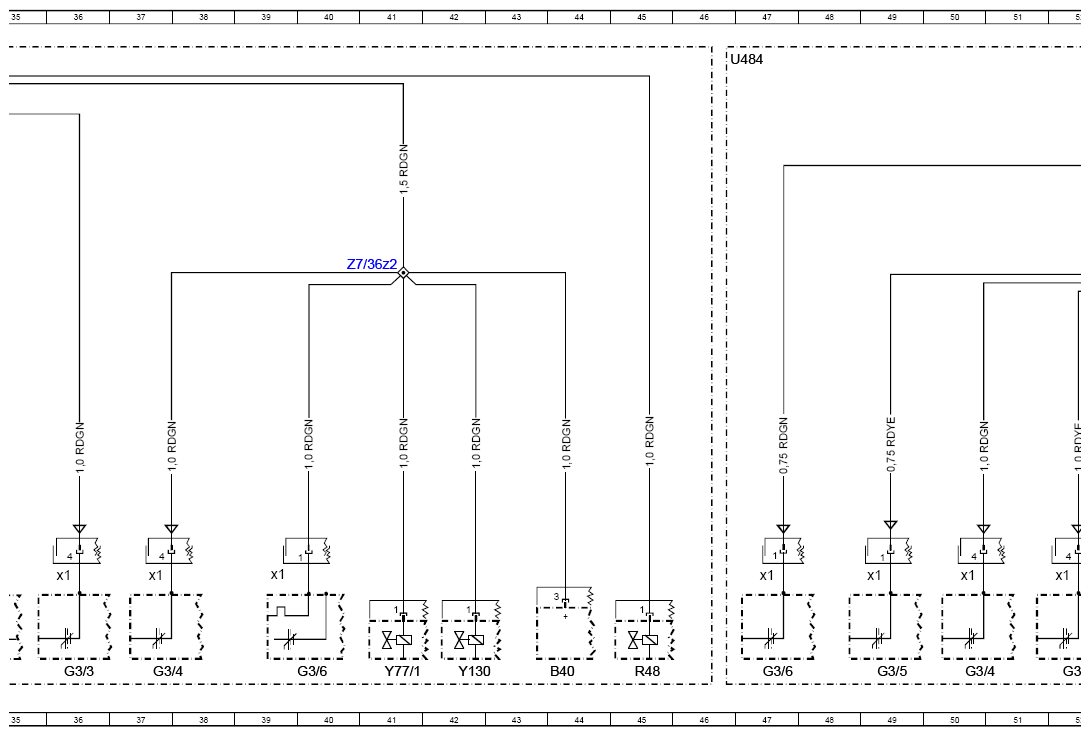

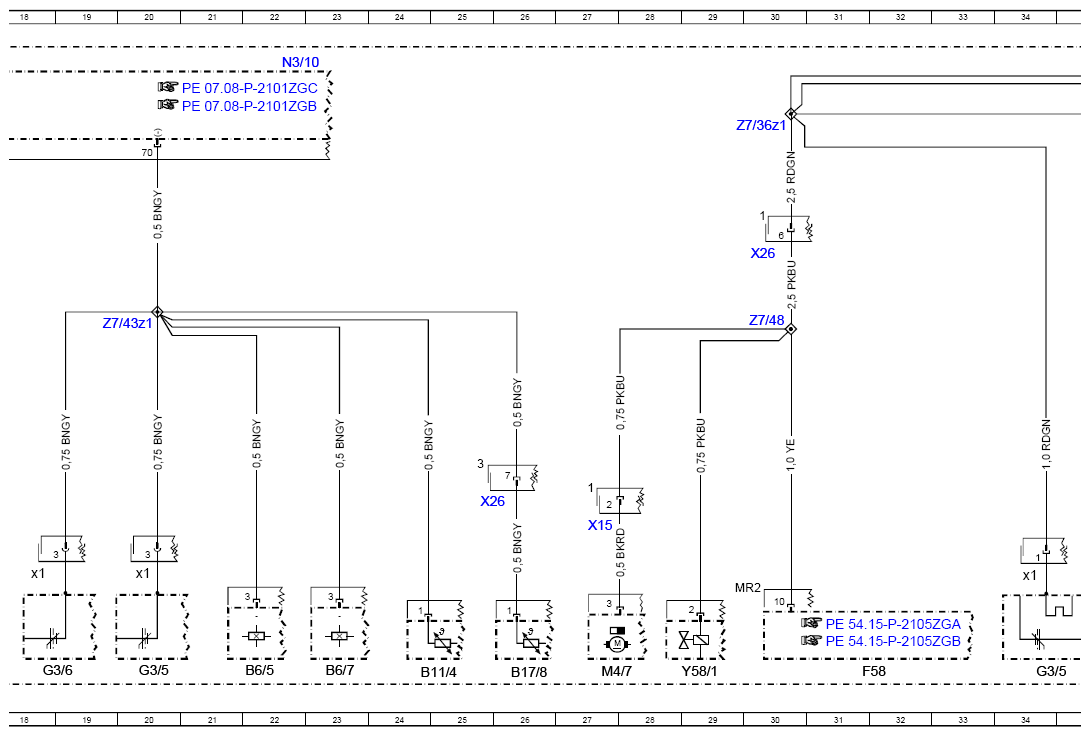

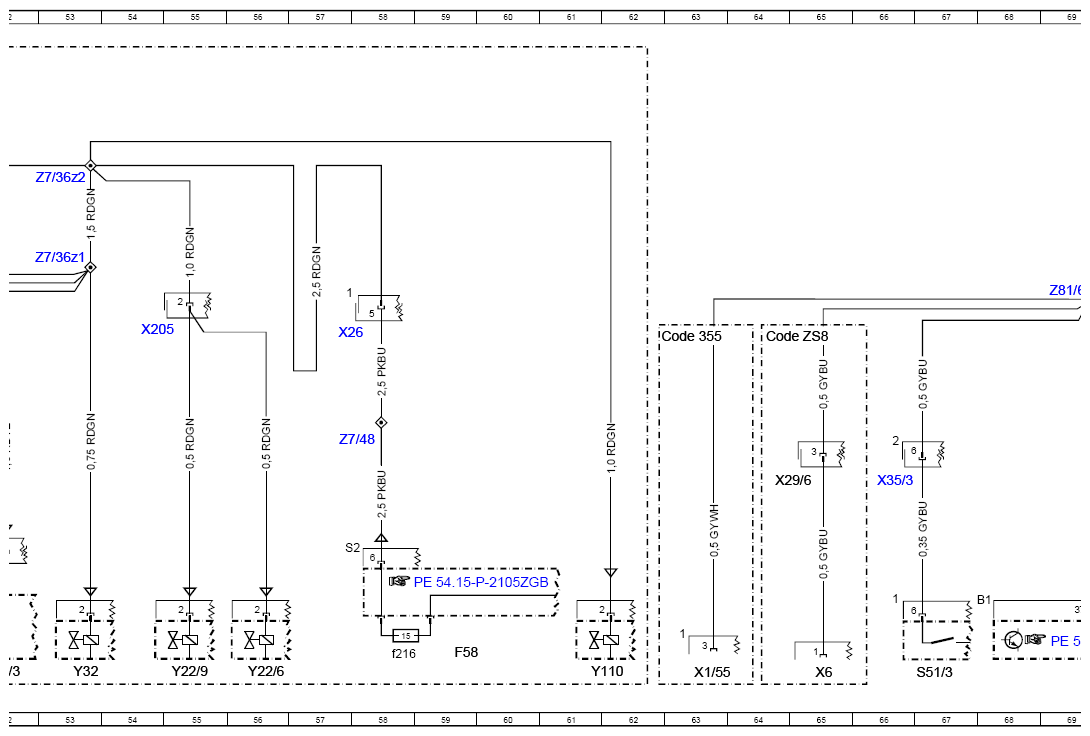

Wiring Diagram Of Soldered Points/Z Connector Sleeves - PE00.19-P-2600-97ZGA
Model 463
as of model year 2013 up to model year 2019
/YoM 12 facelift up to YoM 18 facelift, Z7/36z1, Z7/36z2, Z7/41z1, Z7/43z1, Z7/44, Z81/6
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 80L |
| B11/4 | Coolant temperature sensor | 24L |
| B17/8 | Charge air temperature sensor | 26L |
| B28/4 | Pressure sensor downstream air filter, left cylinder bank | 3L |
| B28/4 | Pressure sensor downstream air filter, left cylinder bank | 13L |
| B28/5 | Pressure sensor downstream of air filter, right cylinder bank | 7L |
| B28/6 | Pressure sensor upstream of throttle valve | 8L |
| B28/7 | Pressure sensor downstream of throttle valve | 4L |
| B28/7 | Pressure sensor downstream of throttle valve | 14L |
| B4/25 | Fuel tank pressure and temperature sensor | 5L |
| B4/25 | Fuel tank pressure and temperature sensor | 16L |
| B40 | Oil sensor (oil level, temperature and quality) | 44L |
| B6/4 | Left intake camshaft Hall sensor | 10L |
| B6/5 | Right intake camshaft Hall sensor | 22L |
| B6/6 | Left exhaust camshaft Hall sensor | 12L |
| B6/7 | Right exhaust camshaft Hall sensor | 23L |
| B70 | Crankshaft Hall sensor | 17L |
| Code 355 | Pre-installation for navigation retrofit | 62F |
| Code ZS8 | Protection class VR7/glass area VR9 | 64F |
| F58 | Front passenger footwell fuse and relay module | 59L |
| F58 | Front passenger footwell fuse and relay module | 31L |
| F58f216 | Fuse 216 | 58L |
| G3/3 | Left oxygen sensor upstream of catalytic converter | 52L |
| G3/3 | Left oxygen sensor upstream of catalytic converter | 36L |
| G3/3x1 | Electrical connector for oxygen sensor upstream of catalytic converter | 52J |
| G3/3x1 | Electrical connector for oxygen sensor upstream of catalytic converter | 36J |
| G3/4 | Right oxygen sensor upstream of catalytic converter | 50L |
| G3/4 | Right oxygen sensor upstream of catalytic converter | 37L |
| G3/4x1 | Electrical connector for right oxygen sensor upstream of catalytic converter | 50J |
| G3/4x1 | Electrical connector for right oxygen sensor upstream of catalytic converter | 37J |
| G3/5 | Left oxygen sensor downstream of catalytic converter | 20L |
| G3/5 | Left oxygen sensor downstream of catalytic converter | 49L |
| G3/5 | Left oxygen sensor downstream of catalytic converter | 34L |
| G3/5x1 | Electrical connector for left oxygen sensor downstream of catalytic converter | 20J |
| G3/5x1 | Electrical connector for left oxygen sensor downstream of catalytic converter | 49J |
| G3/5x1 | Electrical connector for left oxygen sensor downstream of catalytic converter | 34J |
| G3/6 | Right oxygen sensor downstream of catalytic converter | 18L |
| G3/6 | Right oxygen sensor downstream of catalytic converter | 47L |
| G3/6 | Right oxygen sensor downstream of catalytic converter | 40L |
| G3/6x1 | Electrical connector for right oxygen sensor downstream of catalytic converter | 18J |
| G3/6x1 | Electrical connector for right oxygen sensor downstream of catalytic converter | 47J |
| G3/6x1 | Electrical connector for right oxygen sensor downstream of catalytic converter | 39J |
| M4/7 | Fan motor | 27L |
| N10 | SAM control unit | 69L |
| N3/10 | ME-SFI [ME] control unit | 22A |
| N3/10 | ME-SFI [ME] control unit | 11A |
| N3/10 | ME-SFI [ME] control unit | 17A |
| R3 | Front cigarette lighter with ashtray illumination | 77L |
| R3/1 | Rear cigarette lighter with ashtray illumination | 78L |
| R3/1e1 | Ashtray illumination | 78L |
| R3/1x1 | Rear cigarette lighter with ashtray illumination electrical connector | 78K |
| R3e1 | Ashtray illumination | 77L |
| R3x1 | Front cigarette lighter with ashtray illumination electrical connector | 77K |
| R48 | Coolant thermostat heating element | 45L |
| S51/3 | Left rear seat heaters button | 67L |
| S51/4 | Right rear seat heaters button | 72L |
| S76 | Differential lock button group | 74L |
| U1028 | Valid for gasoline engine 157 | 2A |
| U484 | Valid for M273 ME | 46A |
| X1/55 | External navigation electrical connector | 63L |
| X15 | Engine fan/temperature switch electrical connection | 27J |
| X205 | Tumble flap and intake manifold switchover valves electrical connector | 54E |
| X26 | Interior and engine wiring harness electrical connector | 26H |
| X26 | Interior and engine wiring harness electrical connector | 58E |
| X26 | Interior and engine wiring harness electrical connector | 30D |
| X26 | Interior and engine wiring harness electrical connector | 8G |
| X26 | Interior and engine wiring harness electrical connector | 6G |
| X29/6 | Center console intermediate electrical connector | 65H |
| X35/3 | Left rear door electrical connector | 66H |
| X35/4 | Right rear door electrical connector | 71H |
| X35/6 | Instrument panel and module box electrical connector | 74H |
| X6 | Circuit 58d terminal block (2-pin) | 65L |
| Y110 | Coolant thermostat | 61L |
| Y130 | Engine oil pump valve | 42L |
| Y22/6 | Intake manifold switchover valve | 56L |
| Y22/9 | Intake manifold tumble flap switchover valve | 55L |
| Y32 | Secondary air injection pump switchover valve | 53L |
| Y58/1 | Purge control valve | 29L |
| Y77/1 | Boost pressure control pressure transducer | 41L |
| Z7/36z1 | Circuit 87 M2e connector sleeve | 53D |
| Z7/36z1 | Circuit 87 M2e connector sleeve | 30B |
| Z7/36z2 | Circuit 87 M2e connector sleeve | 53C |
| Z7/36z2 | Circuit 87 M2e connector sleeve | 41D |
| Z7/41z1 | Sensor power supply connector sleeve | 6E |
| Z7/43z1 | Sensor ground line connector sleeve | 20E |
| Z7/44 | Sensor ground connector sleeve | 11E |
| Z7/48 | Circuit 87D2 connector sleeve | 58G |
| Z7/48 | Circuit 87D2 connector sleeve | 30E |
| Z81/6 | Circuit 58d connector sleeve | 69E |
