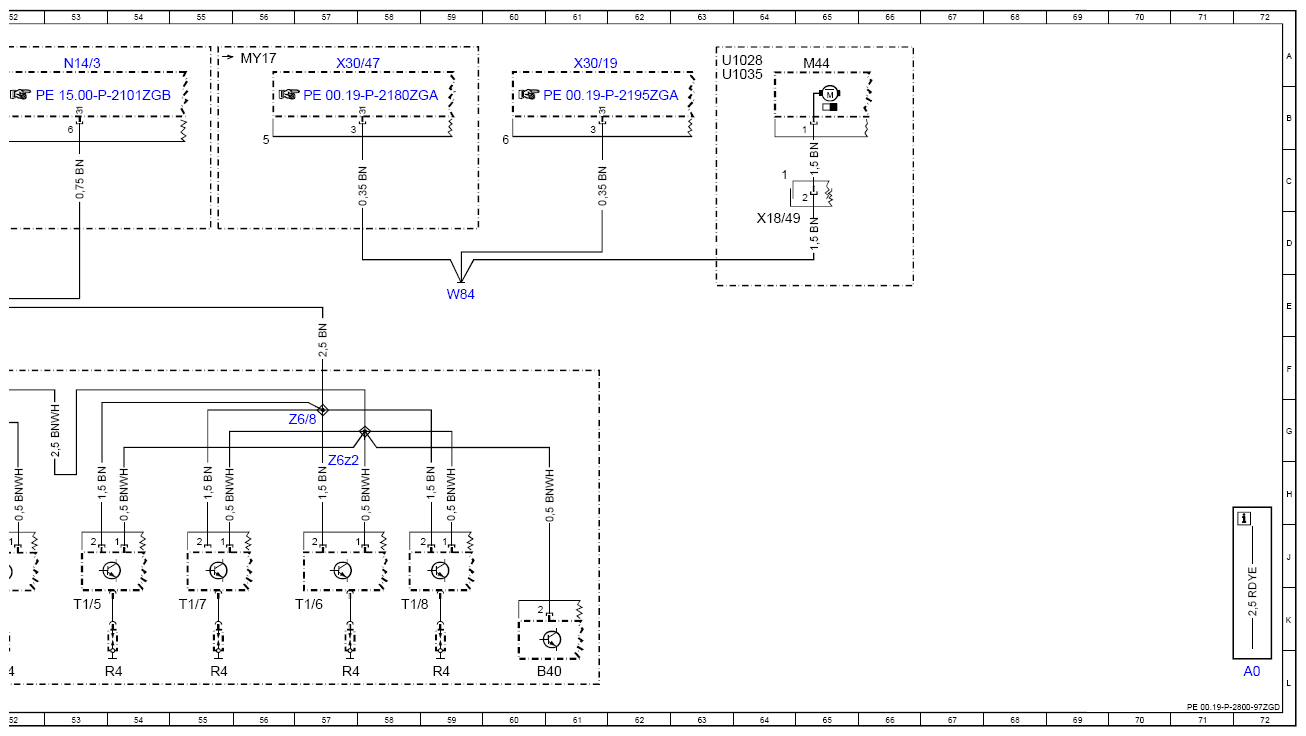

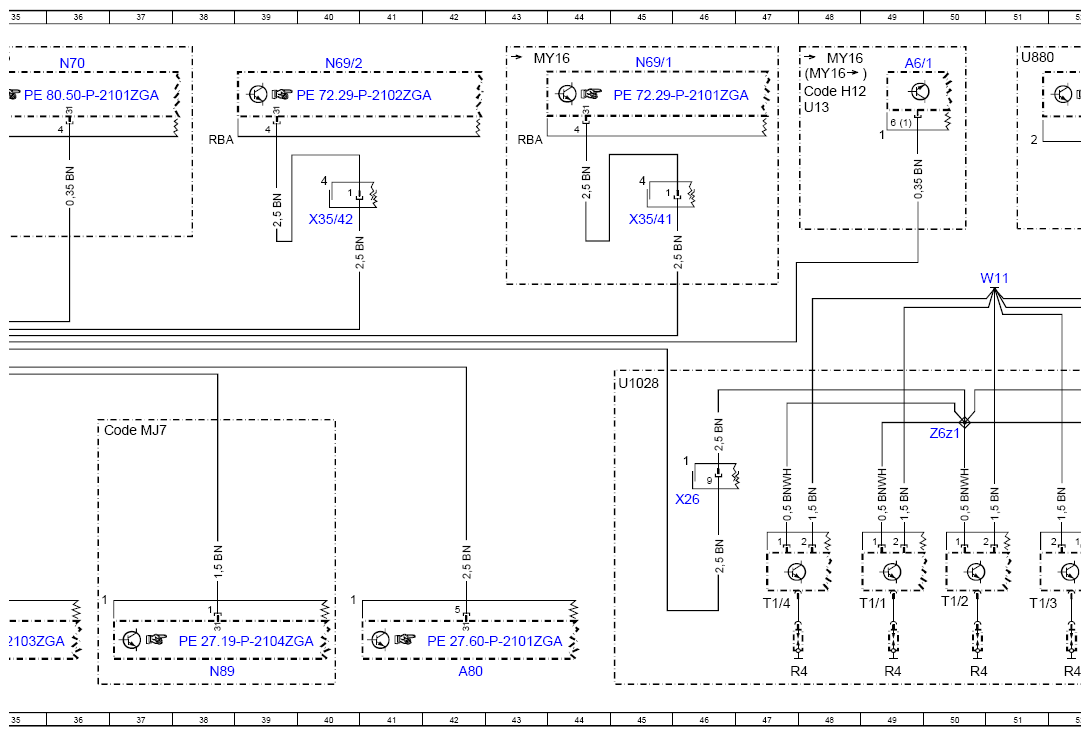

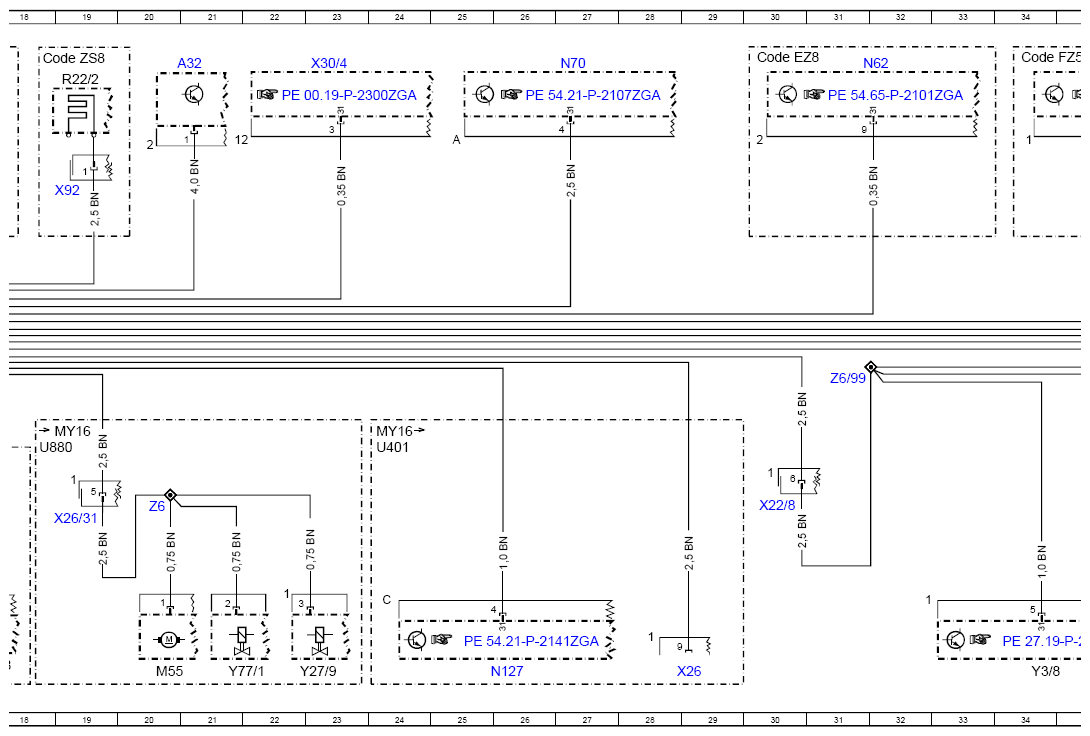

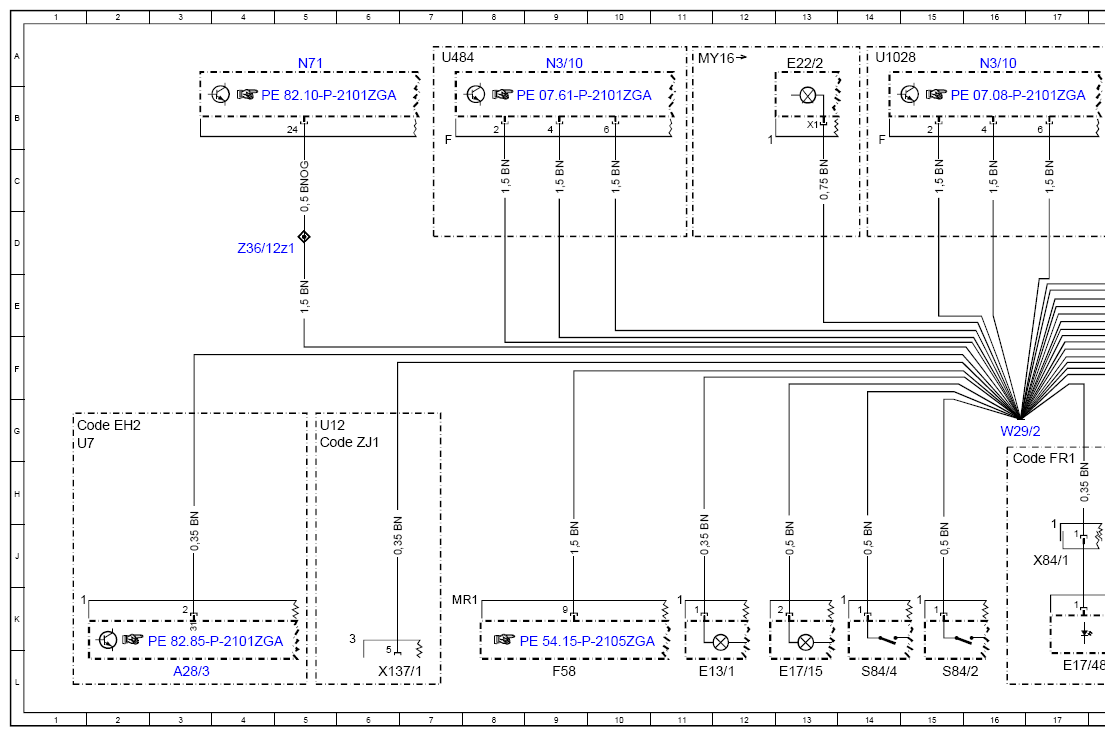

Wiring Diagram Of Ground Cabling - PE00.19-P-2800-97ZGD
Model 463
as of model year 2013 up to model year 2019
/YoM 12 facelift up to YoM 18 facelift, W29/2, W84, Z6/99, Z6z1 (M157), W11 (M157, M642)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 72L |
| A28/3 | Cellular telephone system antenna amplifier/compensator | 3L |
| A32 | AC housing | 21A |
| A6/1 | Stationary heater radio remote control receiver | 49A |
| A80 | Intelligent servo module for DIRECT SELECT | 42L |
| B40 | Oil sensor (oil level, temperature and quality) | 60L |
| Code EH2 | Comfort telephony | 1G |
| Code EZ8 | Parktronic | 30A |
| Code FR1 | Ambiance illumination | 16H |
| Code FZ5 | Anti-theft alarm system (ATA [EDW]) | 34A |
| Code H12 | Auxiliary heater | 48B |
| Code MJ7 | Stop/start function | 36G |
| Code ZJ1 | Japan version | 5G |
| Code ZS8 | Protection class VR7/glass area VR9 | 18A |
| E13/1 | Glove box lamp | 11L |
| E17/15 | Right front footwell lamp | 13L |
| E17/48 | Right front illuminated door sill molding | 17L |
| E22/2 | Right additional turn signal lamp | 13A |
| F58 | Front passenger footwell fuse and relay module | 9L |
| M44 | Charge air cooler circulation pump | 65A |
| M55 | Intake port shutoff actuator motor | 20L |
| N127 | Drivetrain control unit | 26L |
| N14/3 | Glow output stage | 53A |
| N3/10 | ME-SFI [ME] control unit | 16A |
| N3/10 | ME-SFI [ME] control unit | 9A |
| N62 | Parking system control unit | 32A |
| N69/1 | Left front door control unit | 45A |
| N69/2 | Right front door control unit | 40A |
| N70 | Overhead control panel control unit | 27A |
| N70 | Overhead control panel control unit | 36A |
| N71 | Headlamp range adjustment control unit | 5A |
| N89 | Transmission oil auxiliary pump control unit | 38L |
| R22/2 | Heated windshield | 19A |
| R4 | Spark plugs | 50L |
| R4 | Spark plugs | 47L |
| R4 | Spark plugs | 52L |
| R4 | Spark plugs | 49L |
| R4 | Spark plugs | 54L |
| R4 | Spark plugs | 55L |
| R4 | Spark plugs | 57L |
| R4 | Spark plugs | 59L |
| S84/2 | Right rear "soft top locked" switch | 15L |
| S84/4 | Right front "soft top unlocked" switch | 14L |
| T1/1 | Cylinder 1 ignition coil | 49K |
| T1/2 | Cylinder 2 ignition coil | 50K |
| T1/3 | Cylinder 3 ignition coil | 51K |
| T1/4 | Cylinder 4 ignition coil | 47K |
| T1/5 | Cylinder 5 ignition coil | 53K |
| T1/6 | Cylinder 6 ignition coil | 57K |
| T1/7 | Cylinder 7 ignition coil | 55K |
| T1/8 | Cylinder 8 ignition coil | 58K |
| U1028 | Valid for engine 157 | 45F |
| U1028 | Valid for engine 157 | 14A |
| U1028 | Valid for engine 157 | 64A |
| U1035 | Valid for gasoline engine 279 | 64A |
| U12 | Valid for left-hand drive vehicles | 5G |
| U13 | Valid for right-hand drive vehicles | 48B |
| U401 | Valid for engine 176 | 24G |
| U484 | Valid for M273 ME | 7A |
| U7 | Valid for convertibles | 1G |
| U880 | Valid for diesel engine 642 | 51A |
| U880 | Valid for diesel engine 642 | 18G |
| W11 | Combustion engine ground point | 51E |
| W29/2 | Right A-pillar ground connection | 16G |
| W84 | Controller Area Network (CAN) ground point | 59E |
| X137/1 | VICS and Electronic Toll Collection power supply electrical connector | 6L |
| X18/49 | Charge air cooler circulation pump electrical connector | 64D |
| X22/8 | Fully integrated transmission controller unit electrical connector | 30H |
| X26 | Interior and engine wiring harness electrical connector | 46H |
| X26 | Interior and engine wiring harness electrical connector | 29L |
| X26/31 | Engine/engine compartment electrical connector | 19H |
| X30/19 | Chassis CAN 1 (CAN E1) potential distributor electrical connector | 61A |
| X30/4 | Interior CAN 1 (CAN B) potential distributor electrical connector | 23A |
| X30/47 | Telematics CAN (CAN A) potential distributor electrical connector | 57A |
| X35/41 | Driver door connecting point | 45D |
| X35/42 | Front passenger door connecting point | 40D |
| X84/1 | Right front illuminated door sill molding electrical connector | 17J |
| X92 | Windshield heater electrical connector | 19C |
| Y27/9 | Exhaust gas recirculation actuator | 23L |
| Y3/8 | Fully integrated transmission control unit | 34L |
| Y77/1 | Boost pressure control pressure transducer | 21L |
| Z36/12z1 | Headlamp range adjustment data line connector sleeve 1 | 4D |
| Z6 | Circuit 31 connector sleeve | 20H |
| Z6/8 | Sensor ground connector sleeve | 57G |
| Z6/99 | Transmission circuit 31 connector sleeve | 31F |
| Z6z1 | Circuit 31 connector sleeve | 50G |
| Z6z2 | Circuit 31 connector sleeve | 57H |
