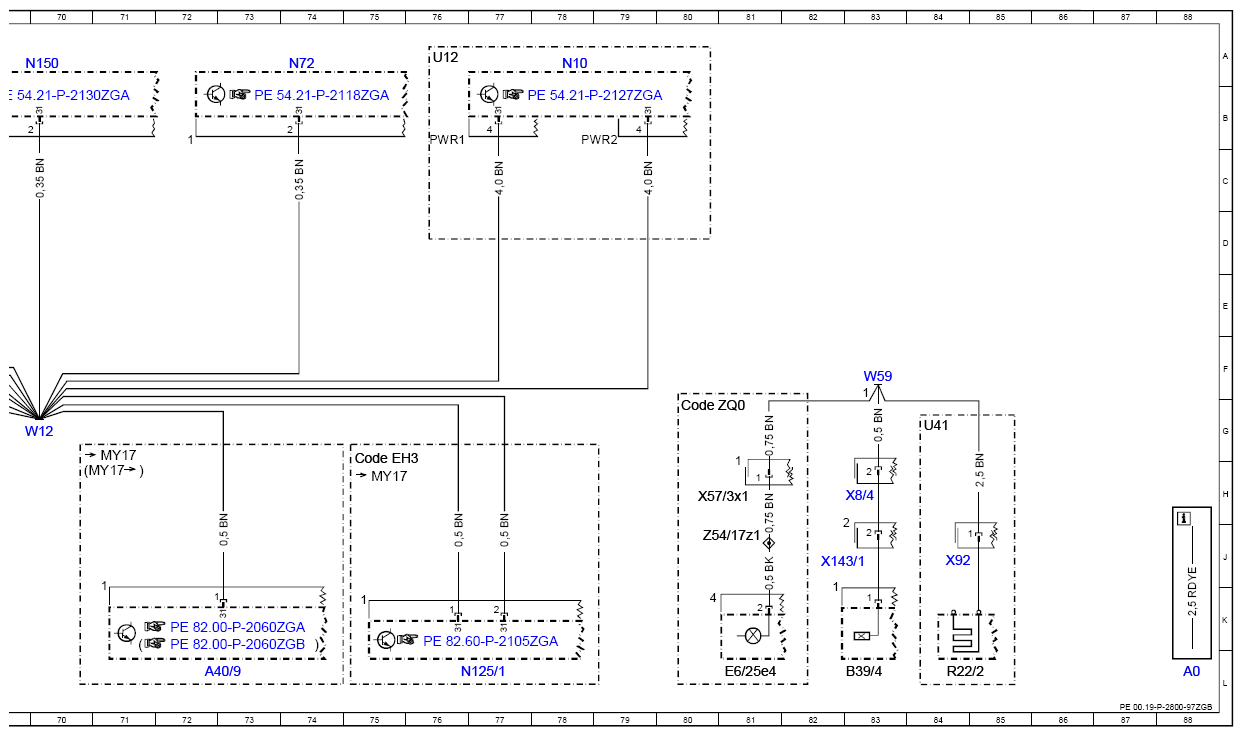

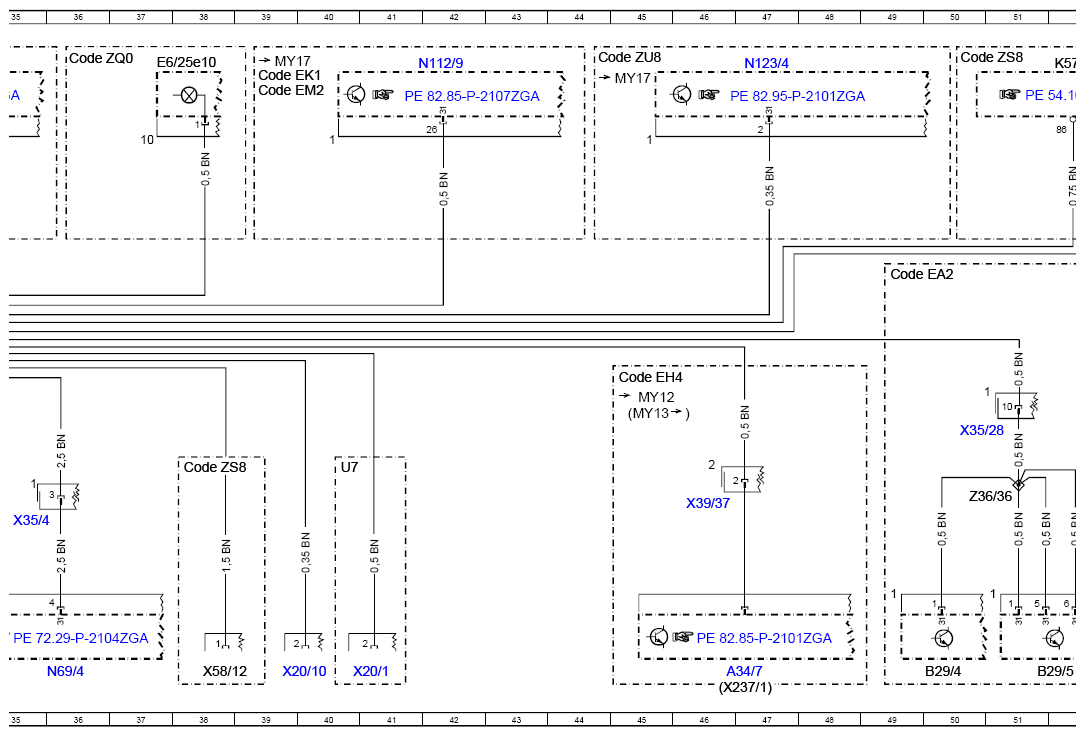

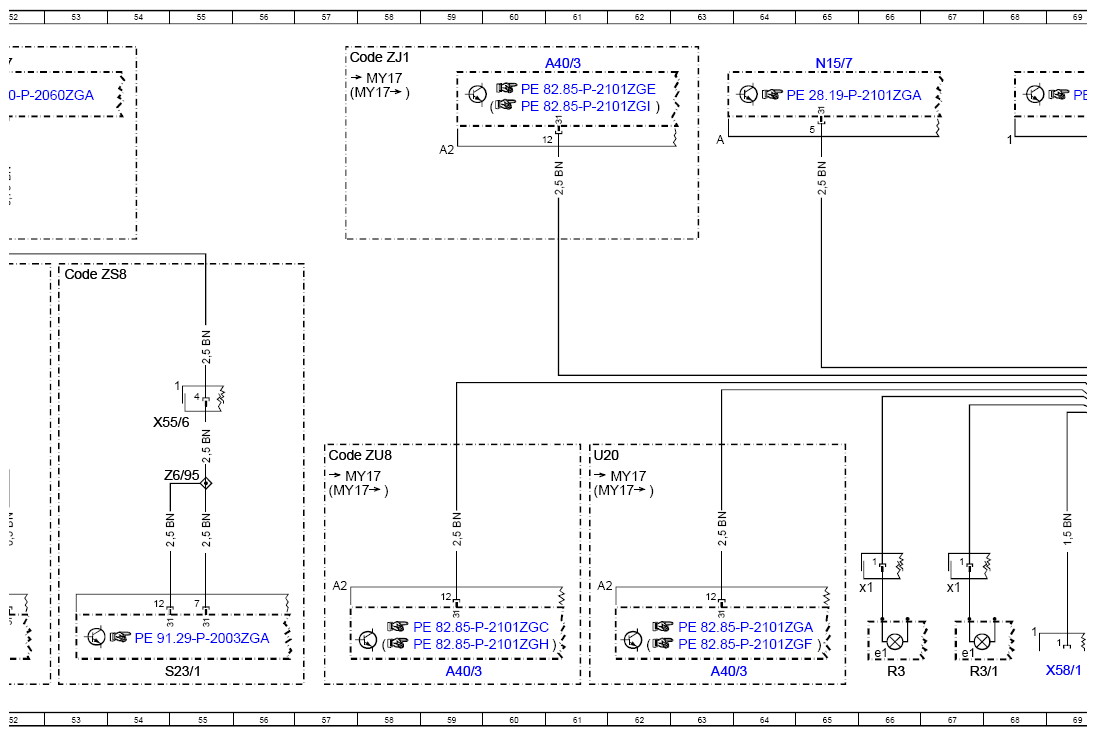

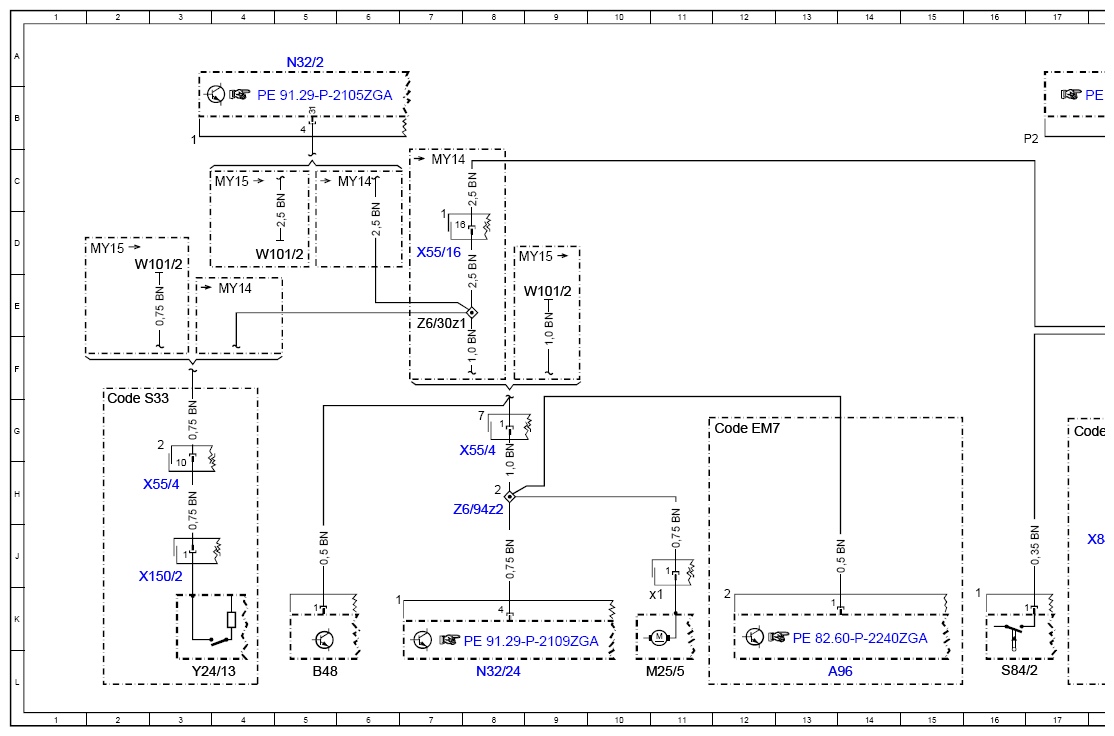

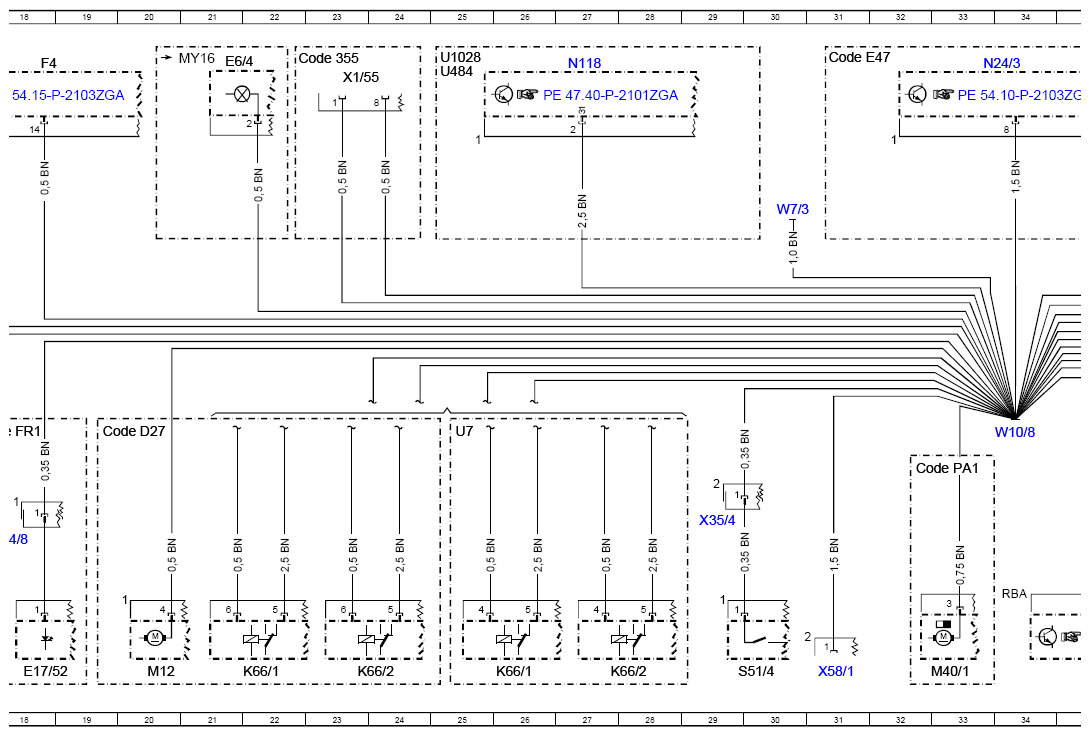

Wiring Diagram Of Ground Cabling - PE00.19-P-2800-97ZGB
Model 463
as of model year 2013 up to model year 2019
/YoM 12 facelift up to YoM 18 facelift, W7/3, W10/8, W12, W59, Z6/8, Z6/30z1, Z6/94z2, Z36/36
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 88L |
| A34/7 | Bluetooth® module | 47L |
| A40/3 | COMAND control unit | 63L |
| A40/3 | COMAND control unit | 59L |
| A40/3 | COMAND control unit | 61A |
| A40/9 | Audio/COMAND control panel | 72L |
| A96 | Rear entertainment module | 13L |
| B29/4 | Left rear bumper intelligent radar sensor | 50L |
| B29/5 | Right rear bumper intelligent radar sensor | 51L |
| B39/4 | Rear window glass breakage sensor | 83L |
| B48 | Front passenger seat occupied recognition and ACSR | 5L |
| Code 355 | Pre-installation for navigation retrofit | 22A |
| Code D27 | Power tilting/sliding roof | 19G |
| Code E47 | Socket, 115V | 31A |
| Code EA2 | Blind Spot Assist | 49E |
| Code EH3 | Media Interface | 75H |
| Code EH4 | Telephone module with Bluetooth® SAP | 45F |
| Code EK1 | HERMES LTE communications module | 39A |
| Code EM2 | HERMES UMTS communications module | 39B |
| Code EM7 | Rear compartment entertainment | 12G |
| Code FR1 | Ambiance illumination | 17G |
| Code PA1 | Seating comfort package | 32H |
| Code S33 | Head restraint, crash-active | 2G |
| Code ZJ1 | Japan version | 57A |
| Code ZQ0 | G 500 4x42 | 36A |
| Code ZQ0 | G 500 4x42 | 80G |
| Code ZS8 | Protection class VR7/glass area VR9 | 50A |
| Code ZS8 | Protection class VR7/glass area VR9 | 53E |
| Code ZS8 | Protection class VR7/glass area VR9 | 38H |
| Code ZU8 | USA version | 44A |
| Code ZU8 | USA version | 57G |
| E17/52 | Right rear illuminated door sill molding | 18L |
| E6/25e10 | 38A | |
| E6/25e4 | 81L | |
| E6/4 | Right rear side-marker lamp | 21A |
| F4 | Rear fuse and relay module | 18A |
| K57 | Battery cutoff relay | 52A |
| K66/1 | Roof system "Open" relay | 22L |
| K66/1 | Roof system "Open" relay | 26L |
| K66/2 | Roof system "Close" relay | 23L |
| K66/2 | Roof system "Close" relay | 28L |
| M12 | Roof system drive unit | 20L |
| M25/5 | Front passenger seat lumbar support pneumatic pump | 11L |
| M25/5x1 | Front passenger seat lumbar support pneumatic pump electrical connector | 11K |
| M40/1 | Multicontour seat pneumatic pump | 33L |
| N10 | SAM control unit | 78A |
| N112/9 | HERMES control unit | 42A |
| N118 | Fuel pump control unit | 27A |
| N123/4 | Emergency call system control unit | 47A |
| N125/1 | Media interface control unit | 77L |
| N15/7 | Transfer case control unit | 65A |
| N150 | DIRECT SELECT INTERFACE | 70A |
| N24/3 | DC/AC converter control unit | 33A |
| N32/2 | Front passenger seat control unit | 5A |
| N32/24 | Front passenger seat lumbar support adjustment control unit | 8L |
| N69/4 | Right rear door control unit | 36L |
| N72 | Lower control panel control unit | 74A |
| R22/2 | Heated windshield | 84L |
| R3 | Front cigarette lighter with ashtray illumination | 66L |
| R3/1 | Rear cigarette lighter with ashtray illumination | 67L |
| R3/1e1 | Ashtray illumination | 67L |
| R3/1x1 | Rear cigarette lighter with ashtray illumination electrical connector | 67K |
| R3e1 | Ashtray illumination | 66L |
| R3x1 | Front cigarette lighter with ashtray illumination electrical connector | 66K |
| S23/1 | Right rear seat adjustment switch | 55L |
| S51/4 | Right rear seat heaters button | 30L |
| S84/2 | Right rear "soft top locked" switch | 16L |
| U1028 | Valid for engine 157 | 25A |
| U12 | Valid for left-hand drive vehicles | 76A |
| U20 | Valid for all (except USA and Japan) | 61G |
| U41 | Not valid for code ZS8 Protection class VR7/glass area VR9 | 84G |
| U484 | Valid for M273 ME | 25A |
| U7 | Valid for convertibles | 25G |
| U7 | Valid for convertibles | 40H |
| W10/8 | Right battery recess ground point | 34G |
| W101/2 | Front passenger seat ground point | 4D |
| W101/2 | Front passenger seat ground point | 2D |
| W101/2 | Front passenger seat ground point | 9E |
| W12 | Ground point (center console) | 70G |
| W59 | Windshield frame ground point | 83F |
| W7/3 | Right taillamp ground point | 30D |
| X1/55 | External navigation electrical connector | 23A |
| X143/1 | Right glass breakage sensor electrical connector | 82J |
| X150/2 | Front passenger NECK-PRO head restraint electrical connector | 3J |
| X20/1 | Center high-mounted brake lamp electrical connector | 41L |
| X20/10 | Parking brake electrical connector | 39L |
| X237/1 | Mobile phone contact plate | 46L |
| X35/28 | Rear bumper parking system electrical connector | 50G |
| X35/4 | Right rear door electrical connector | 29J |
| X35/4 | Right rear door electrical connector | 35J |
| X39/37 | Mobile phone electrical connector | 46H |
| X55/16 | Front passenger seat electrical connector | 7D |
| X55/4 | Front passenger seat connector block | 8G |
| X55/4 | Front passenger seat connector block | 3H |
| X55/6 | Right rear seat adjustment connector block | 55G |
| X57/3x1 | 81H | |
| X58/1 | Vehicle interior power outlet | 31L |
| X58/1 | Vehicle interior power outlet | 69L |
| X58/12 | Load compartment socket | 38L |
| X8/4 | Tailgate electrical connector | 83H |
| X84/8 | Right rear door exit lamp electrical connector | 18J |
| X92 | Windshield heater electrical connector | 84J |
| Y24/13 | Front passenger NECK-PRO head restraint solenoid | 3L |
| Z36/36 | Rear radar sensors sensor ground connector sleeve | 51H |
| Z54/17z1 | 81J | |
| Z6/30z1 | Driver seat ground line connector sleeve | 7E |
| Z6/94z2 | Driver seat circuit 31 connector sleeve 2 | 8H |
| Z6/95 | Passenger seat circuit 31 connector sleeve | 55H |
