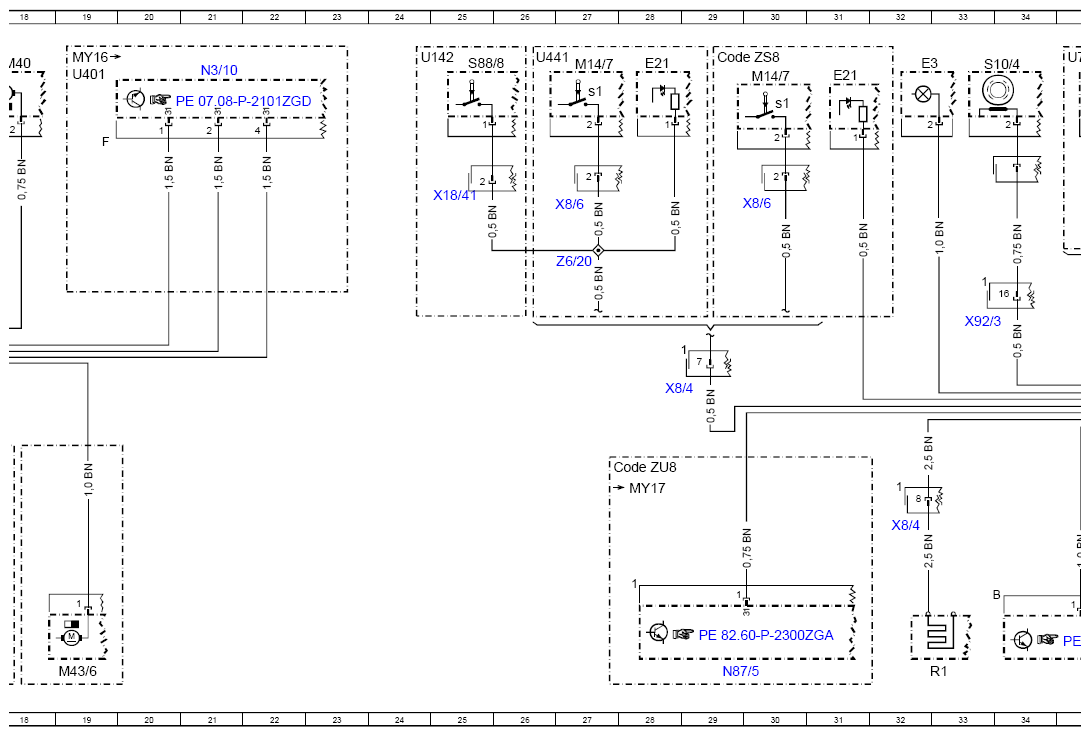

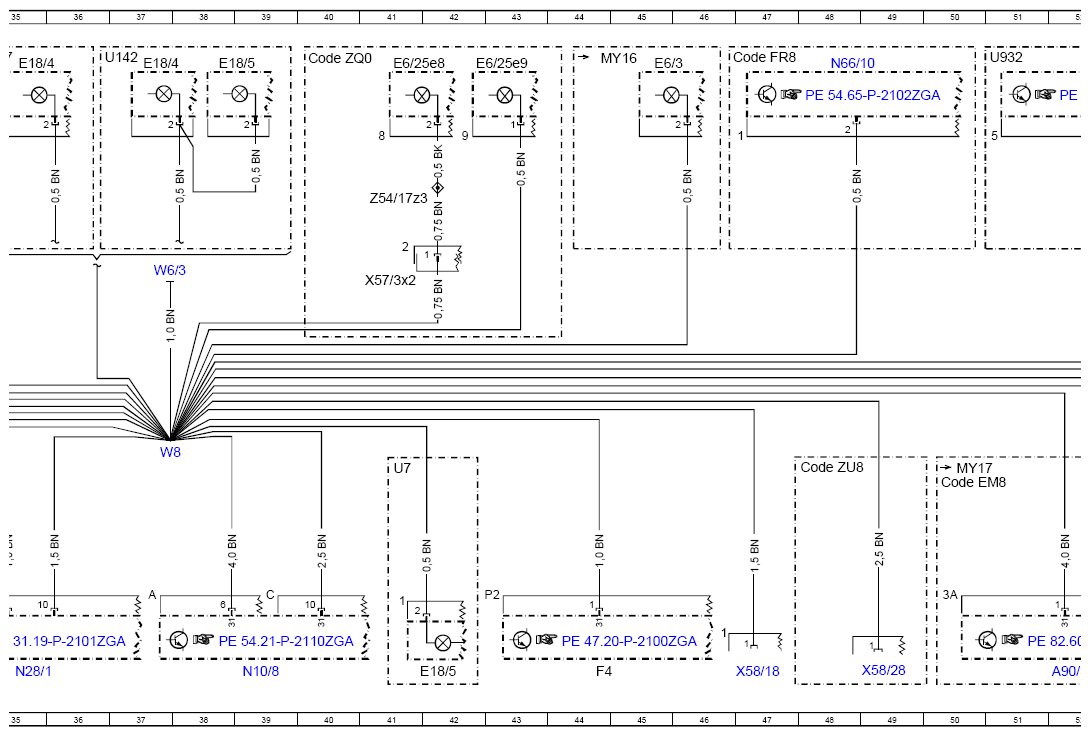

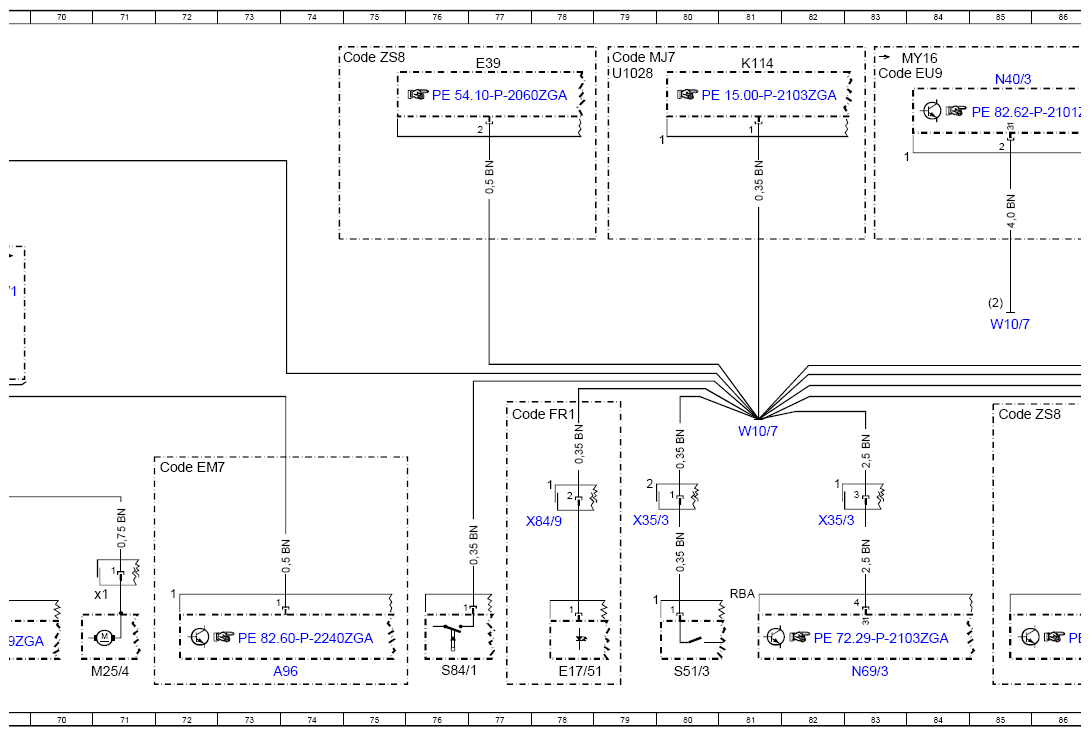

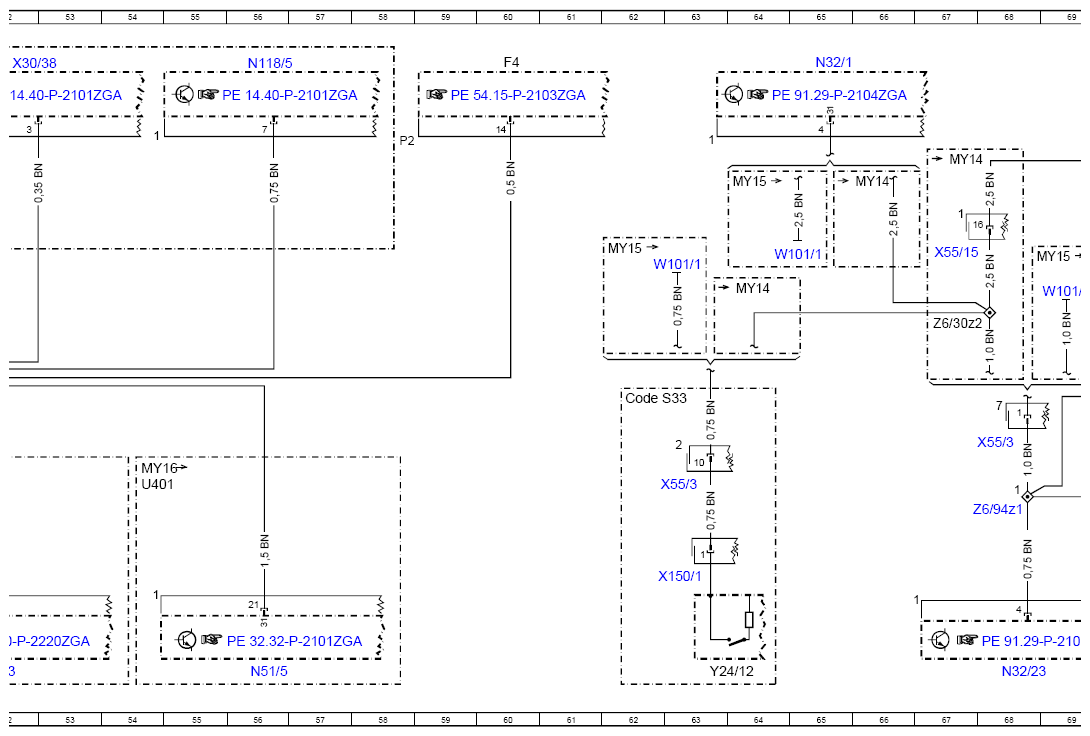

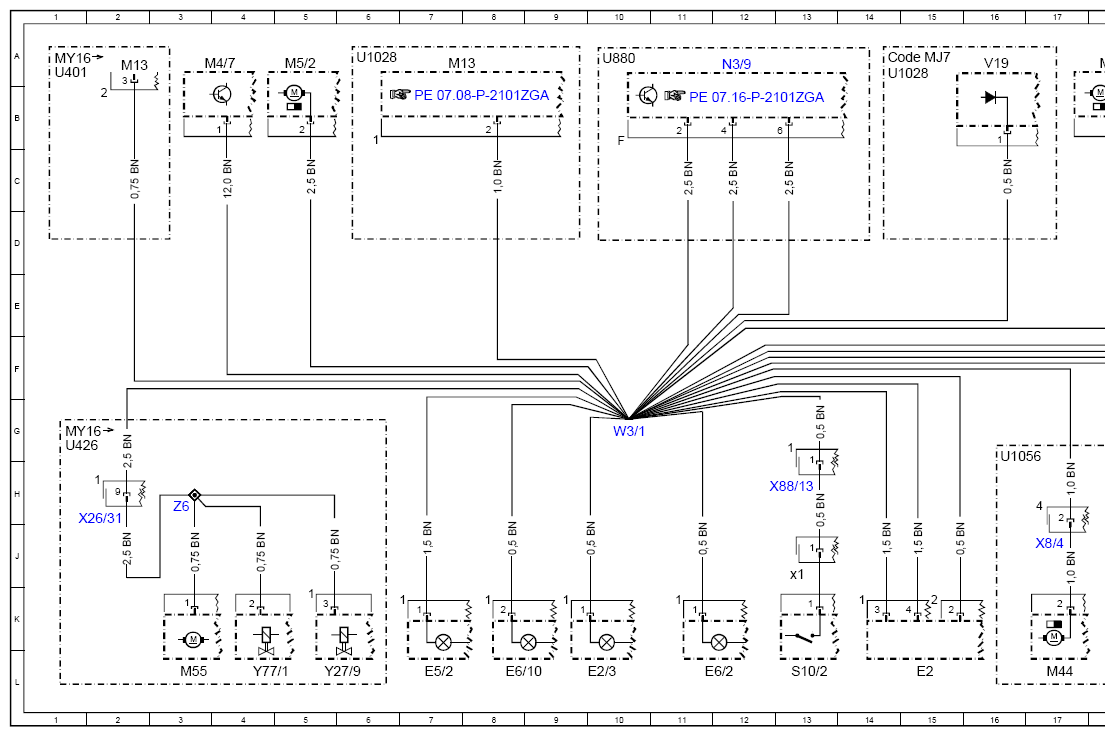

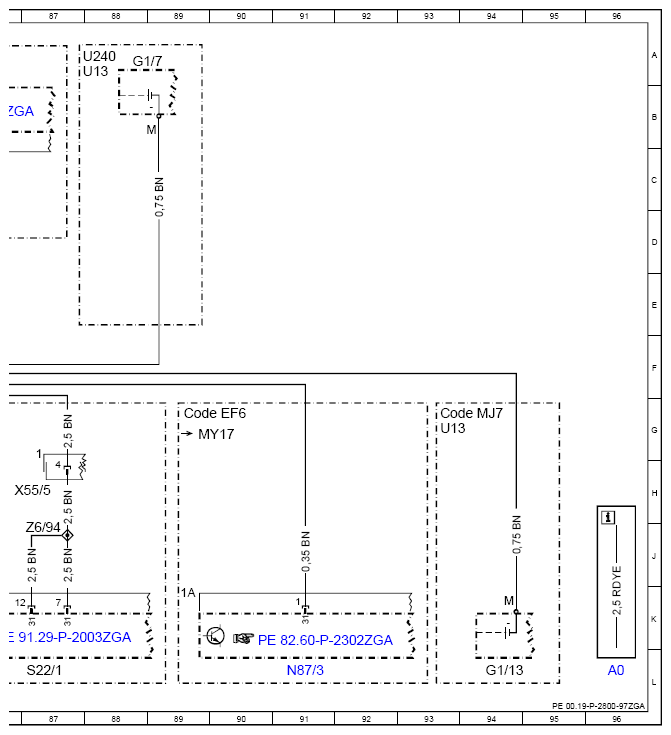

Wiring Diagram Of Ground Cabling - PE00.19-P-2800-97ZGA
Model 463
as of model year 2013 up to model year 2019
/YoM 12 facelift up to YoM 18 facelift, W3/1, W6/3, W8, W10/7, Z6/20, Z6/30z2, Z6/94z1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 96L |
| A90/3 | TV digital tuner | 52L |
| A96 | Rear entertainment module | 73L |
| Code EF6 | Digital radio | 89G |
| Code EM7 | Rear compartment entertainment | 72H |
| Code EM8 | TV tuner | 50H |
| Code EU9 | Surround sound system (Harman/Kardon Logic 7) | 83A |
| Code FR1 | Ambiance illumination | 77G |
| Code FR8 | Backup camera | 46A |
| Code MJ7 | Stop/start function | 14A |
| Code MJ7 | Stop/start function | 79A |
| Code MJ7 | Stop/start function | 93G |
| Code S33 | Head restraint, crash-active | 62G |
| Code ZQ0 | G 500 4x42 | 40A |
| Code ZS8 | Protection class VR7/glass area VR9 | 74A |
| Code ZS8 | Protection class VR7/glass area VR9 | 85G |
| Code ZS8 | Protection class VR7/glass area VR9 | 29A |
| Code ZU8 | USA version | 48H |
| Code ZU8 | USA version | 27H |
| E17/51 | Left rear illuminated door sill molding | 78L |
| E18/4 | Left load compartment lamp | 35A |
| E18/4 | Left load compartment lamp | 37A |
| E18/5 | Right load compartment lamp | 38A |
| E18/5 | Right load compartment lamp | 42L |
| E2 | Right front lamp unit | 15L |
| E2/3 | Right daytime running lamps headlamp | 10L |
| E21 | Center stop lamp | 28A |
| E21 | Center stop lamp | 31A |
| E3 | Left rear lamp unit | 32A |
| E39 | Additional battery charge indicator lamp | 77A |
| E5/2 | Right fog lamp | 7L |
| E6/10 | Right front side-marker lamp | 8L |
| E6/2 | Right turn signal lamp | 11L |
| E6/25e8 | Left rear roof additional lamp | 41A |
| E6/25e9 | Left rear additional lamp | 43A |
| E6/3 | Left rear side-marker lamp | 45A |
| F4 | Rear fuse and relay module | 44L |
| F4 | Rear fuse and relay module | 60A |
| G1/13 | ECO start/stop function additional battery | 94L |
| G1/7 | Additional battery | 88A |
| K114 | ECO start/stop function additional battery relay | 81A |
| M13 | Coolant circulation pump | 7A |
| M13 | Coolant circulation pump | 2A |
| M14/7 | Rear-end door central locking motor | 27A |
| M14/7 | Rear-end door central locking motor | 30A |
| M14/7s1 | Rear-end door rotary tumbler switch | 27B |
| M14/7s1 | Rear-end door rotary tumbler switch | 30B |
| M25/4 | Driver seat lumbar support pneumatic pump | 71L |
| M25/4x1 | Driver seat lumbar support pneumatic pump electrical connector | 71K |
| M4/7 | Fan motor | 4A |
| M40 | Differential lock vacuum pump | 18A |
| M43/6 | Low temperature circuit circulation pump 1 | 19L |
| M44 | Charge air cooler circulation pump | 17L |
| M5/2 | Headlamp cleaning system pump | 5A |
| M55 | Intake port shutoff actuator motor | 3L |
| N10/8 | Rear control unit | 39L |
| N118/5 | AdBlue® control unit | 56A |
| N28/1 | Trailer recognition control unit | 35L |
| N3/10 | ME-SFI [ME] control unit | 21A |
| N3/9 | CDI control unit | 12A |
| N32/1 | Driver seat control unit | 65A |
| N32/23 | Driver seat lumbar support adjustment control unit | 68L |
| N40/3 | Sound system amplifier control unit | 85A |
| N51/5 | Adaptive damping system control unit | 56L |
| N66/10 | Backup camera voltage supply module | 48A |
| N69/3 | Left rear door control unit | 83L |
| N87/3 | Digital Audio Broadcasting control unit | 91L |
| N87/5 | Satellite digital audio radio (SDAR) control unit | 29L |
| R1 | Rear window heater | 33L |
| S10/2 | Right front brake wear sensor | 13L |
| S10/2x1 | Right front brake wear sensor electrical connector | 13J |
| S10/4 | Right rear brake wear sensor | 33A |
| S22/1 | Left rear seat adjustment switch | 87L |
| S51/3 | Left rear seat heaters button | 80L |
| S84/1 | Left rear "soft top locked" switch | 76L |
| S88/8 | Rear-end door external operation switch | 25A |
| U1028 | Valid for engine 157 | 6A |
| U1028 | Valid for engine 157 | 14A |
| U1028 | Valid for engine 157 | 79A |
| U1056 | Not valid for M 157 | 16G |
| U13 | Valid for right-hand drive vehicles | 93G |
| U13 | Valid for right-hand drive vehicles | 87A |
| U142 | Not valid for convertible | 36A |
| U142 | Not valid for convertible | 24A |
| U240 | Valid for all except ECO start/stop function | 87A |
| U401 | Valid for engine 176 | 54H |
| U401 | Valid for engine 176 | 1A |
| U401 | Valid for engine 176 | 19A |
| U426 | Valid with engine 642.887 | 1G |
| U441 | Valid for special protection | 26A |
| U7 | Valid for convertibles | 35A |
| U7 | Valid for convertibles | 41H |
| U880 | Valid for diesel engine 642 | 10A |
| U932 | Valid for diesel engine 642 BlueTEC | 51A |
| V19 | ECO start/stop function diode | 16A |
| W10/7 | Left battery recess ground point | 81G |
| W10/7 | Left battery recess ground point | 85E |
| W101/1 | Driver seat ground point | 64D |
| W101/1 | Driver seat ground point | 63D |
| W101/1 | Driver seat ground point | 69E |
| W3/1 | Ground point (right front wheel well) | 10G |
| W6/3 | Left taillamp ground point | 37E |
| W8 | Liftgate ground point | 37G |
| X150/1 | Driver NECK-PRO head restraint electrical connector | 63J |
| X18/41 | Load compartment switch electrical connector | 25C |
| X26/31 | Engine/engine compartment electrical connector | 2H |
| X30/38 | Drive train sensor CAN (CAN I) potential distributor electrical connector | 52A |
| X35/3 | Left rear door electrical connector | 79J |
| X35/3 | Left rear door electrical connector | 82J |
| X55/15 | Driver seat electrical connector | 67D |
| X55/3 | Driver seat connector block | 68G |
| X55/3 | Driver seat connector block | 63H |
| X55/5 | Left rear seat adjustment connector block | 87H |
| X57/3x2 | Rear roof additional lamp electrical connector | 41E |
| X58/18 | Load compartment socket | 47L |
| X58/28 | Electronic brake system electrical connector | 49L |
| X8/4 | Tailgate electrical connector | 17J |
| X8/4 | Tailgate electrical connector | 28F |
| X8/4 | Tailgate electrical connector | 32J |
| X8/6 | Electrical connection, contact switch for rear door and rear-end door | 27C |
| X8/6 | Electrical connection, contact switch for rear door and rear-end door | 30C |
| X84/9 | Left rear door exit lamp electrical connector | 78J |
| X88/13 | Right front brake wear indicator sensor electrical connector | 13H |
| X92/3 | Vehicle frame electrical connector (22-pin) | 33E |
| Y24/12 | Driver NECK-PRO head restraint solenoid | 63L |
| Y27/9 | Exhaust gas recirculation actuator | 5L |
| Y77/1 | Boost pressure control pressure transducer | 4L |
| Z54/17z3 | Rear roof additional lamp end sleeve 3 | 41C |
| Z6 | Circuit 31 connector sleeve | 3H |
| Z6/20 | Liftgate ground connector sleeve | 27D |
| Z6/30z2 | Front passenger seat ground line connector sleeve | 67E |
| Z6/94 | Driver seat circuit 31 connector sleeve | 87J |
| Z6/94z1 | Driver seat circuit 31 connector sleeve 1 | 68H |
