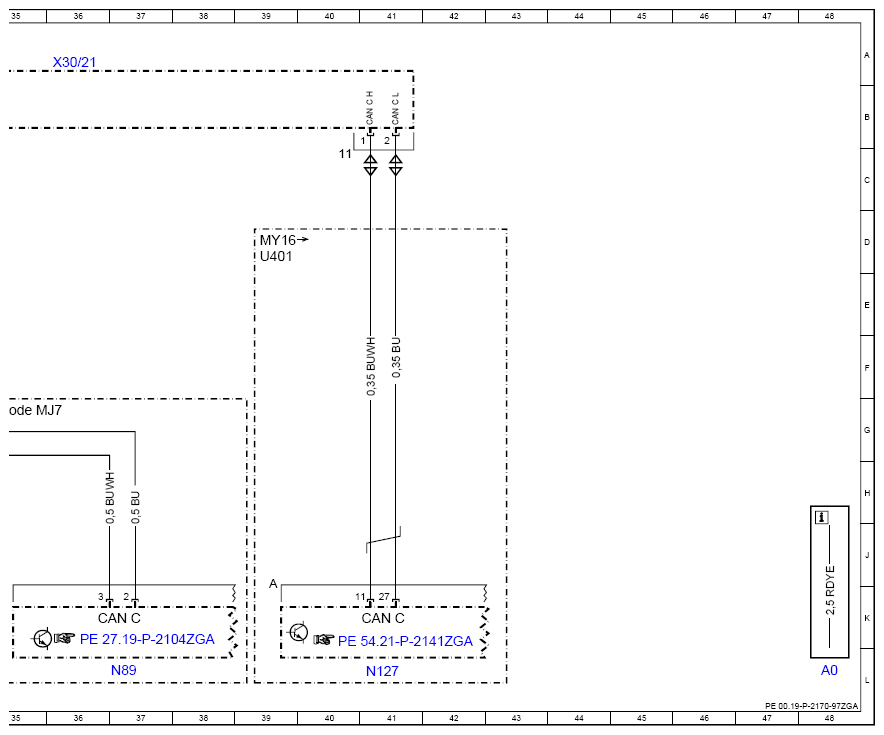

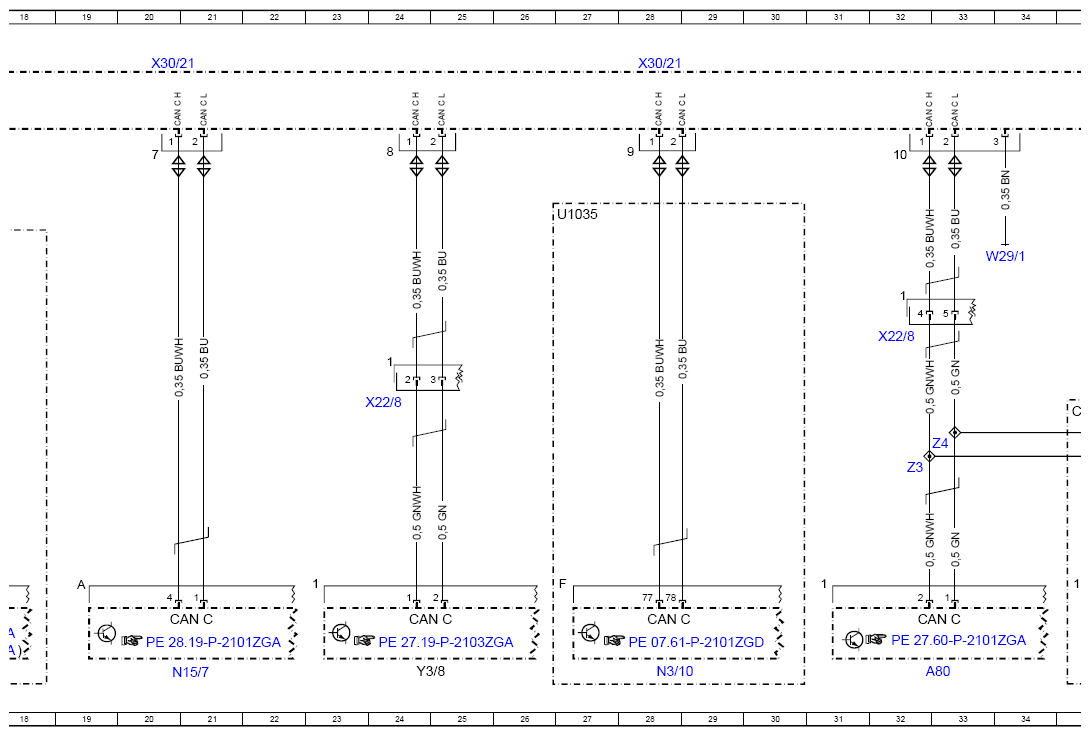

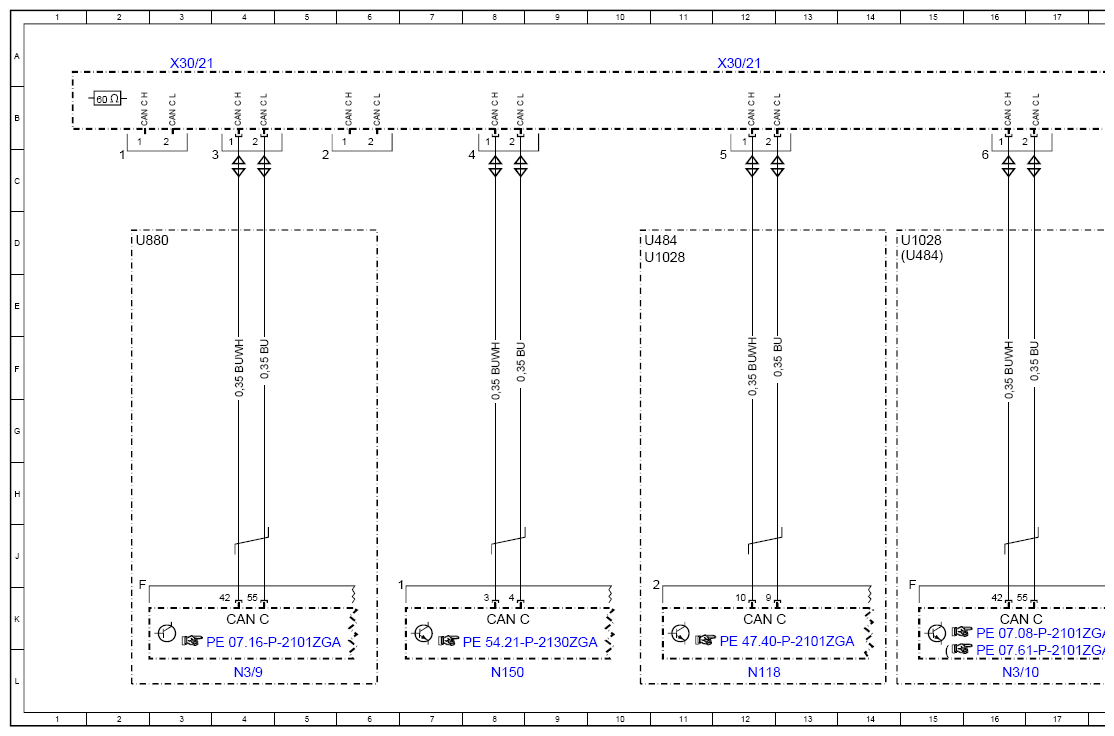

Wiring Diagram Of Drive Train CAN - PE00.19-P-2170-97ZGA
Model 463
as of model year 2013 up to model year 2019
/YoM 12 facelift up to YoM 18 facelift, potential distributor X30/21 drive CAN (CAN C)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 48L |
| A80 | Intelligent servo module for DIRECT SELECT | 33L |
| CAN C | Drive train CAN | 21K |
| CAN C | Drive train CAN | 12K |
| CAN C | Drive train CAN | 24K |
| CAN C | Drive train CAN | 8K |
| CAN C | Drive train CAN | 16K |
| CAN C | Drive train CAN | 4K |
| CAN C | Drive train CAN | 32K |
| CAN C | Drive train CAN | 37K |
| CAN C | Drive train CAN | 41K |
| CAN C | Drive train CAN | 28K |
| Code MJ7 | Stop/start function | 35G |
| N118 | Fuel pump control unit | 12L |
| N127 | Drivetrain control unit | 41L |
| N15/7 | Transfer case control unit | 21L |
| N150 | DIRECT SELECT INTERFACE | 8L |
| N3/10 | ME-SFI [ME] control unit | 16L |
| N3/10 | ME-SFI [ME] control unit | 28L |
| N3/9 | CDI control unit | 4L |
| N89 | Transmission oil auxiliary pump control unit | 37L |
| U1028 | Valid for engine 157 | 10D |
| U1028 | Valid for engine 157 | 15D |
| U1035 | Valid for gasoline engine 279 | 27D |
| U484 | Valid for M273 ME | 10D |
| U484 | Valid for M273 ME | 15D |
| U880 | Valid for diesel engine 642 | 2D |
| W29/1 | A-pillar ground connection, left | 34D |
| X22/8 | Fully integrated transmission controller unit electrical connector | 24G |
| X22/8 | Fully integrated transmission controller unit electrical connector | 32F |
| X30/21 | Drive train CAN (CAN C) potential distributor electrical connector | 20A |
| X30/21 | Drive train CAN (CAN C) potential distributor electrical connector | 12A |
| X30/21 | Drive train CAN (CAN C) potential distributor electrical connector | 28A |
| X30/21 | Drive train CAN (CAN C) potential distributor electrical connector | 3A |
| X30/21 | Drive train CAN (CAN C) potential distributor electrical connector | 36A |
| Y3/8 | Fully integrated transmission control unit | 24L |
| Z3 | Terminal 15 connector sleeve | 32H |
| Z4 | Circuit 15/30 connector sleeve | 33G |
