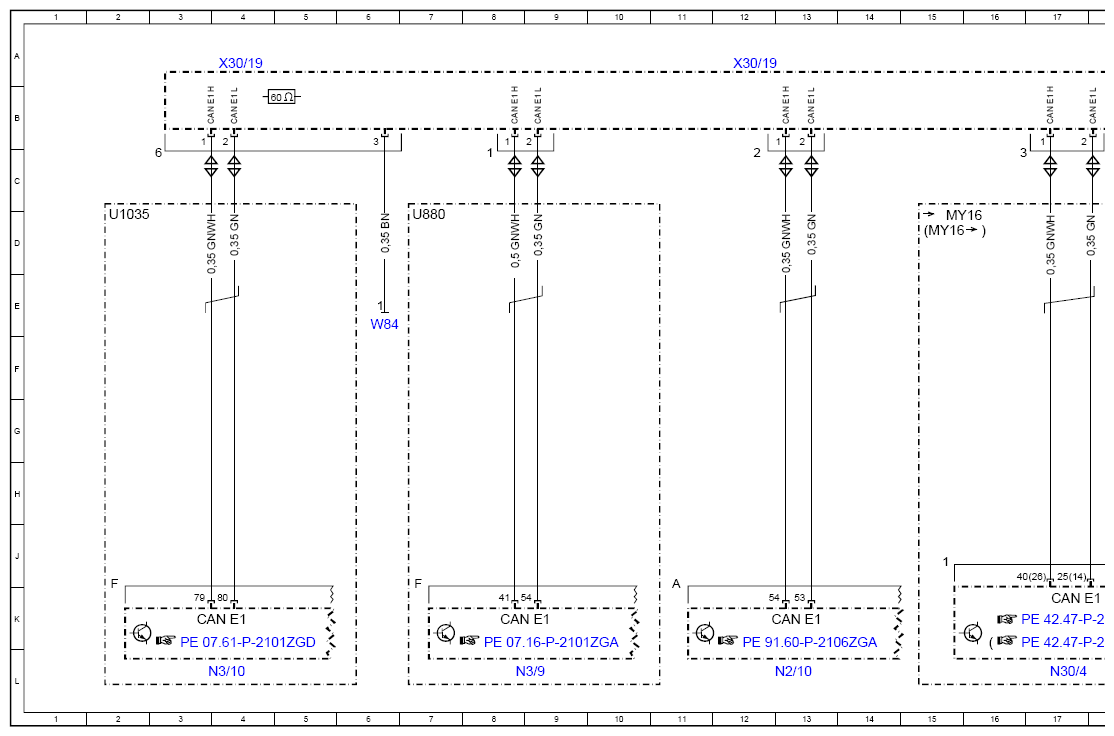

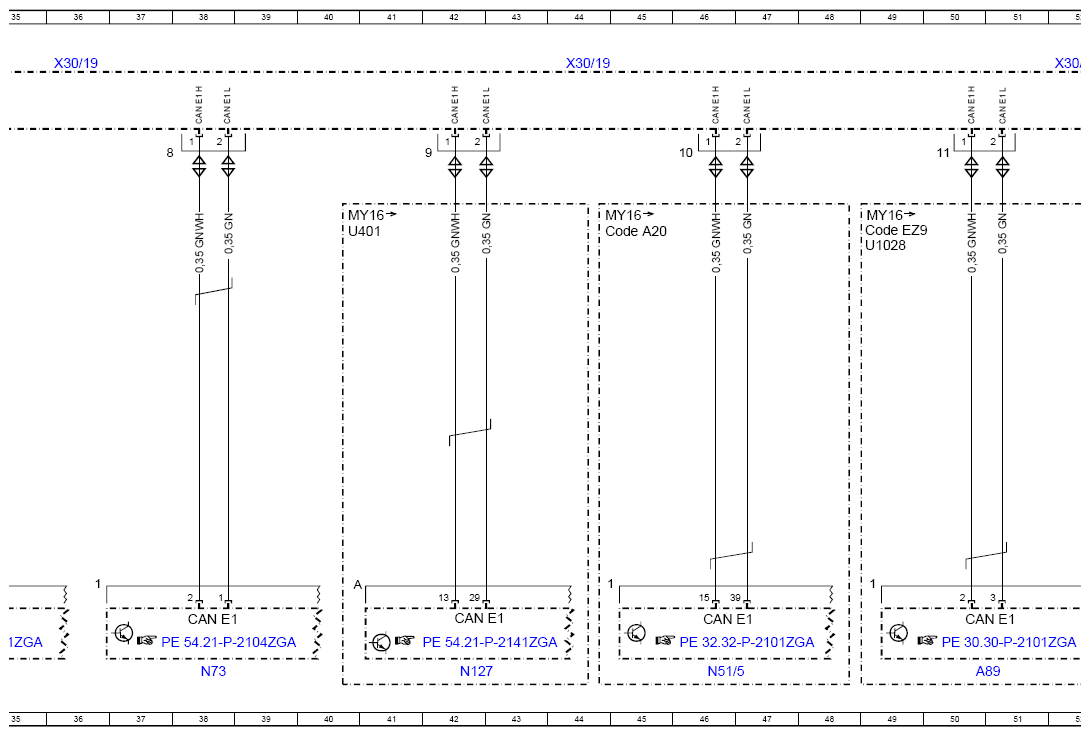

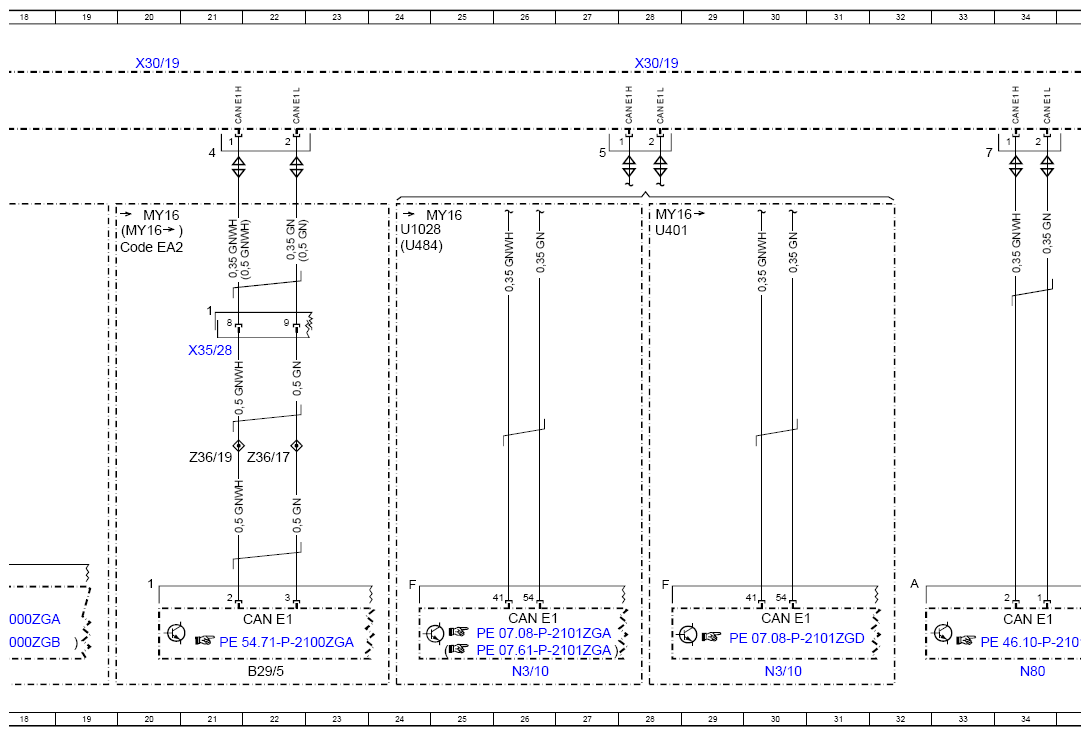

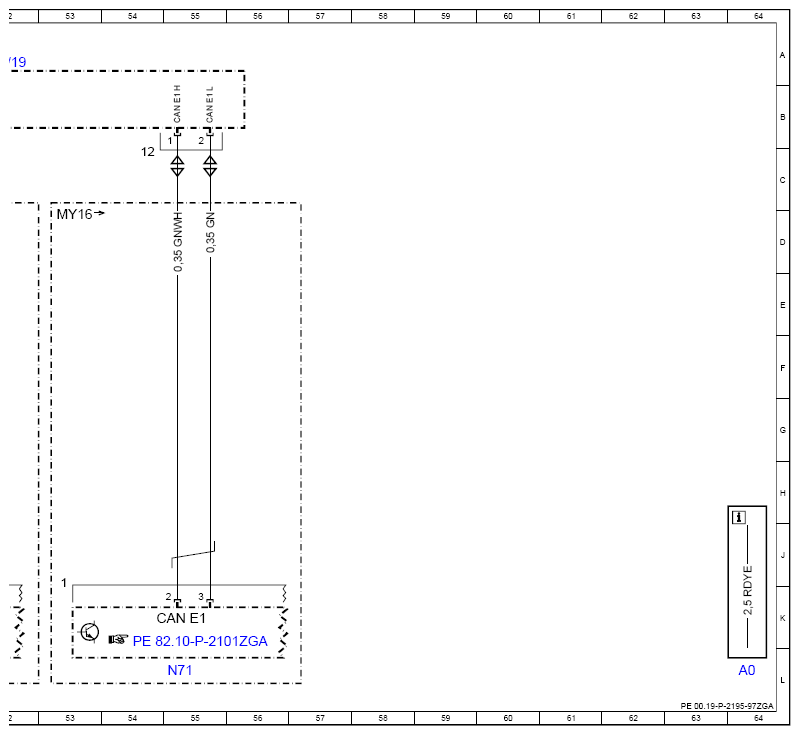

Wiring Diagram Of Chassis CAN - PE00.19-P-2195-97ZGA
Model 463
as of model year 2013 up to model year 2019
/YoM 12 model refinement package up to YoM 18 model refinement package, potential distributor X30/19 suspension CAN 1 (CAN E1)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 64L |
| A89 | DISTRONIC electric controller unit | 50L |
| B29/5 | Right rear bumper intelligent radar sensor | 22L |
| CAN E1 | Chassis CAN 1 | 17K |
| CAN E1 | Chassis CAN 1 | 38K |
| CAN E1 | Chassis CAN 1 | 34K |
| CAN E1 | Chassis CAN 1 | 22K |
| CAN E1 | Chassis CAN 1 | 26K |
| CAN E1 | Chassis CAN 1 | 8K |
| CAN E1 | Chassis CAN 1 | 13K |
| CAN E1 | Chassis CAN 1 | 50K |
| CAN E1 | Chassis CAN 1 | 55K |
| CAN E1 | Chassis CAN 1 | 42K |
| CAN E1 | Chassis CAN 1 | 46K |
| CAN E1 | Chassis CAN 1 | 30K |
| CAN E1 | Chassis CAN 1 | 3K |
| Code A20 | Adjustment damping | 44D |
| Code EA2 | Blind Spot Assist | 20D |
| Code EZ9 | Distronic | 49D |
| N127 | Drivetrain control unit | 42L |
| N2/10 | Supplemental restraint system control unit | 13L |
| N3/10 | ME-SFI [ME] control unit | 26L |
| N3/10 | ME-SFI [ME] control unit | 30L |
| N3/10 | ME-SFI [ME] control unit | 4L |
| N3/9 | CDI control unit | 8L |
| N30/4 | Electronic Stability Program control unit | 17L |
| N51/5 | Adaptive damping system control unit | 46L |
| N71 | Headlamp range adjustment control unit | 55L |
| N73 | Electronic ignition switch control unit | 38L |
| N80 | Steering column module control unit | 34L |
| U1028 | Valid for engine 157 | 24D |
| U1028 | Valid for engine 157 | 49D |
| U1035 | Valid for gasoline engine 279 | 2D |
| U401 | Valid for engine 176 | 40D |
| U401 | Valid for engine 176 | 28D |
| U484 | Valid for M273 ME | 24D |
| U880 | Valid for diesel engine 642 | 7D |
| W84 | Controller Area Network (CAN) ground point | 6E |
| X30/19 | Chassis CAN 1 (CAN E1) potential distributor electrical connector | 12A |
| X30/19 | Chassis CAN 1 (CAN E1) potential distributor electrical connector | 20A |
| X30/19 | Chassis CAN 1 (CAN E1) potential distributor electrical connector | 28A |
| X30/19 | Chassis CAN 1 (CAN E1) potential distributor electrical connector | 36A |
| X30/19 | Chassis CAN 1 (CAN E1) potential distributor electrical connector | 52A |
| X30/19 | Chassis CAN 1 (CAN E1) potential distributor electrical connector | 4A |
| X30/19 | Chassis CAN 1 (CAN E1) potential distributor electrical connector | 44A |
| X35/28 | Rear bumper parking system electrical connector | 21F |
| Z36/17 | Rear sensor CAN (low) connector sleeve | 22G |
| Z36/19 | Rear sensor CAN (high) connector sleeve | 21G |
